Venetian Fence Panels

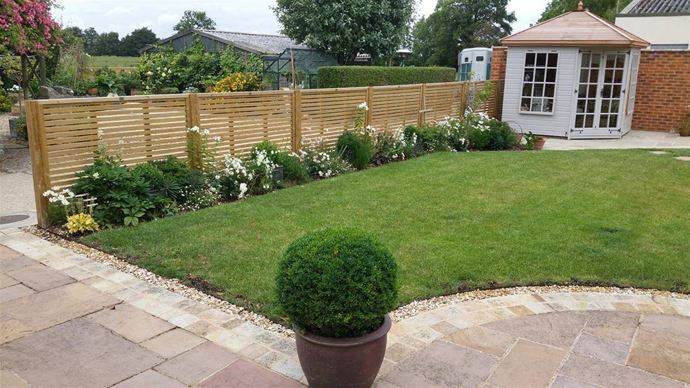

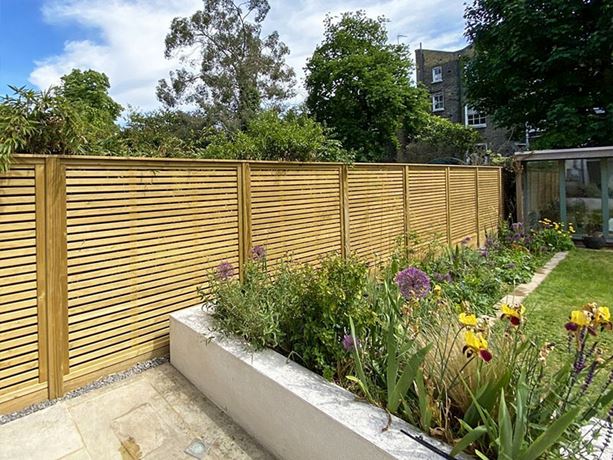

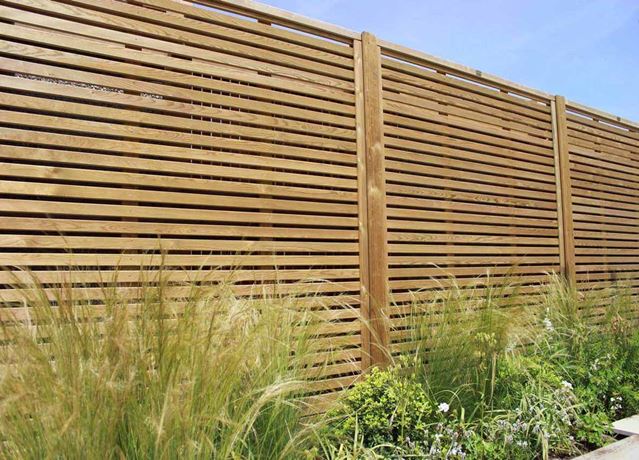

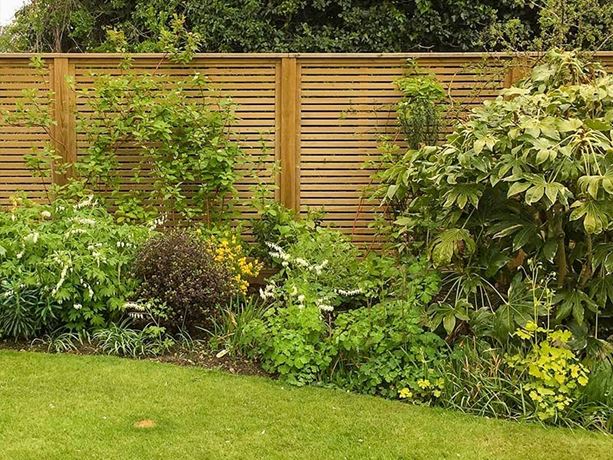

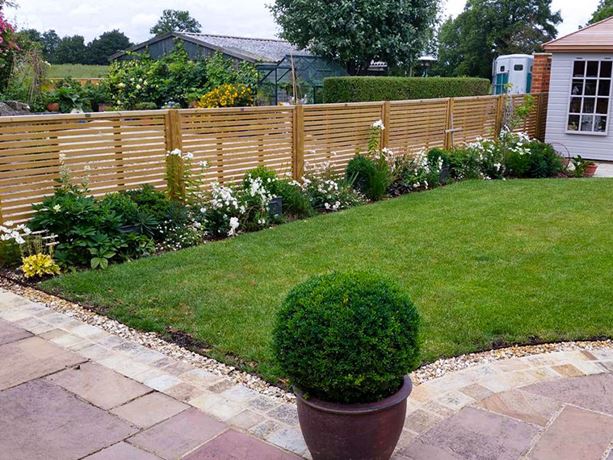

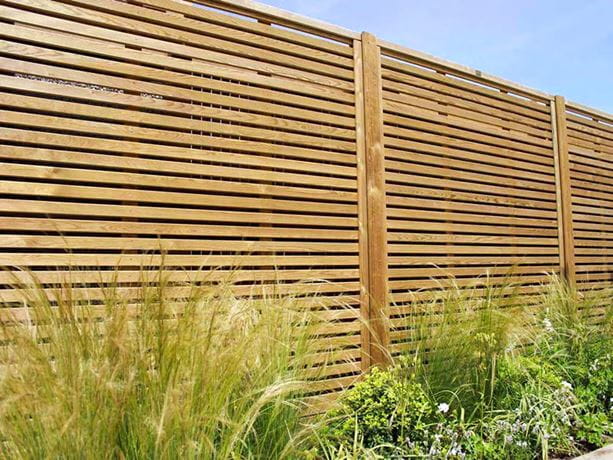

Our handcrafted Venetian style fence panels are available in a variety of sizes. Constructed using planed slats for a premium finish, this contemporary style of fencing is one of our most popular designs. These remarkably simple but modern panels are built within a framed system to help perfectly align each individual horizontal pale to allow light through.

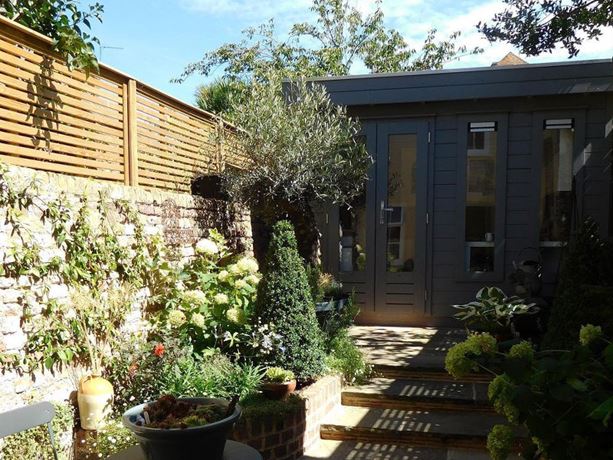

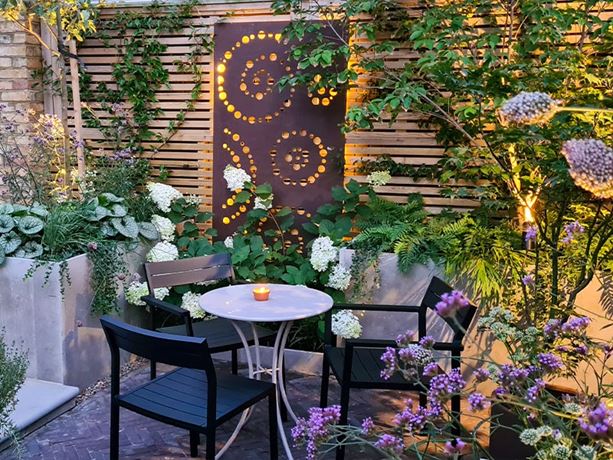

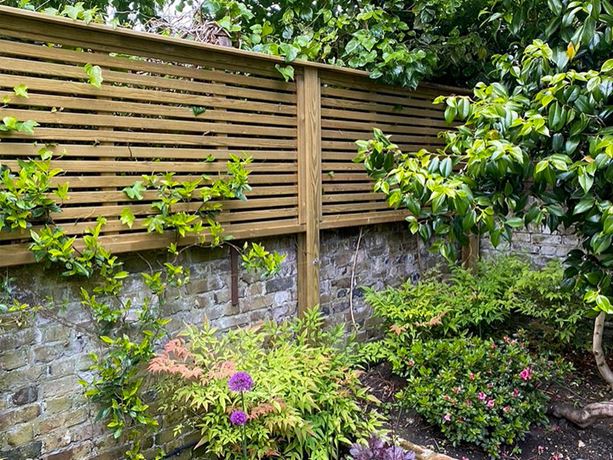

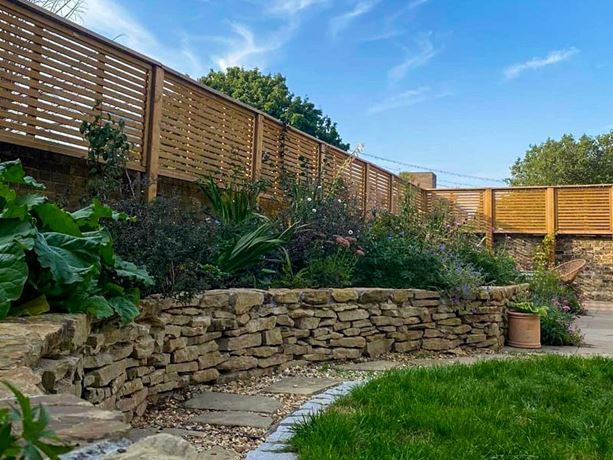

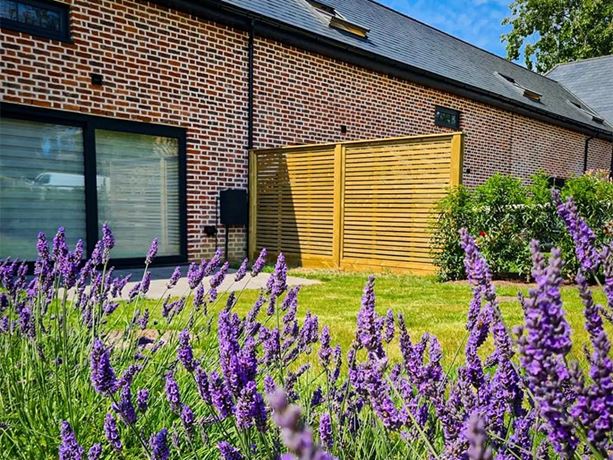

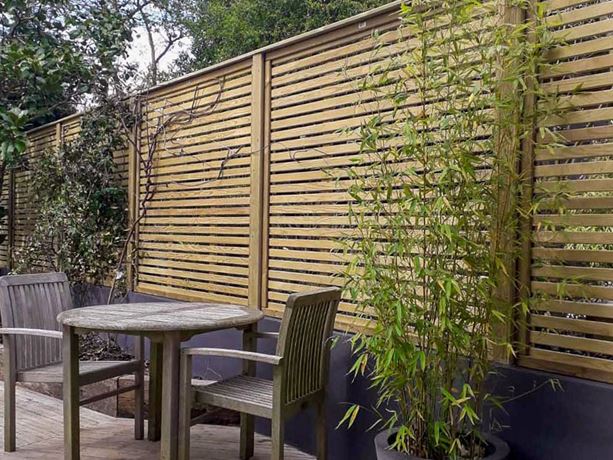

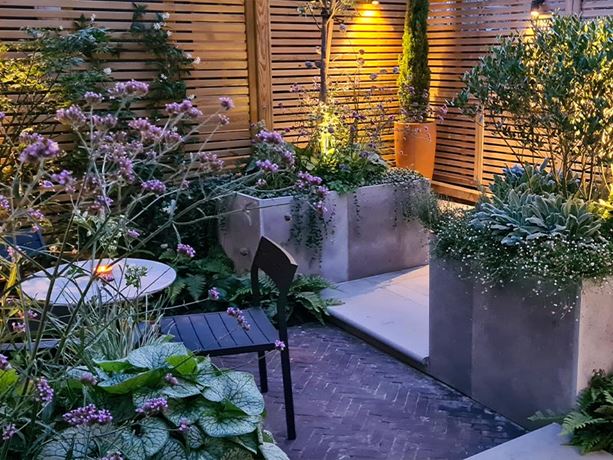

Great for creating attractive light effects as the sun moves across your garden throughout the day, these slatted fence panels can be integral to helping you create atmosphere in your outdoor space. The benefits of Venetian panels go beyond improving light conditions; shorter panels can be used as a topper to add extra height and privacy for existing fences and walls, while full height slatted fence panels can act as a slatted screen within your garden, to help hide unsightly items, or create storage areas.

Each horizontal rail is 45mm high x 15mm with a planed smooth finish to allow rain water to drain from the fence.  To meet the conditions of our 25-year Jakcure® guarantee, gravel boards are required when in contact with the ground while any timber cut on site must be treated with Jakcure® Cut Treatment to meet specification.

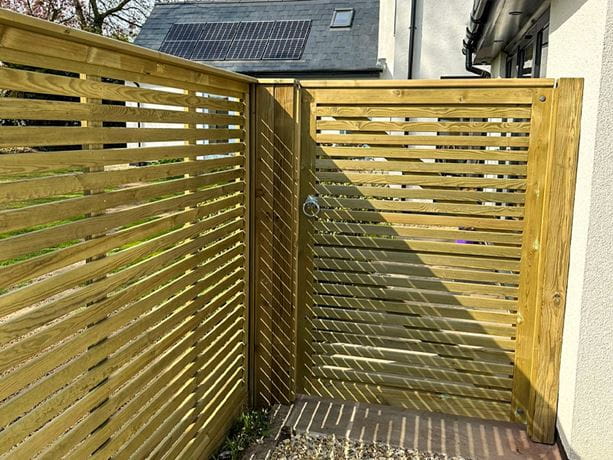

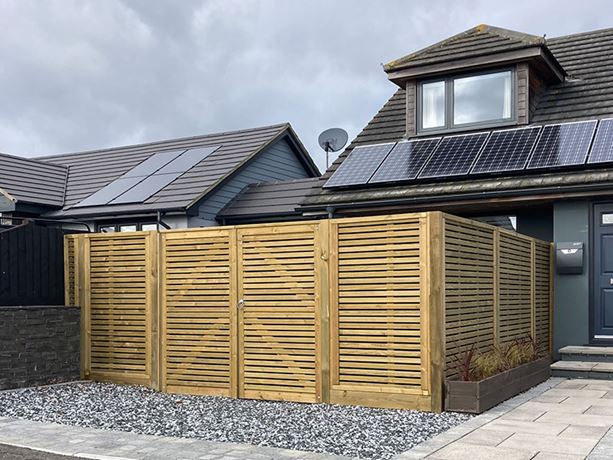

Constructed from Jakcure® treated softwood, Venetian fencing panels are framed for use with our slotted Jakposts. There are a total of six panel heights available, all at 1.83m wide. We handcraft matching garden gates; either right or left hand hanging when viewed from the front and also provide a range of different widths. We also offer a bespoke service for highly specific scenarios.

Should you need a narrower panel to complete your fence, you are able to cut a panel to the correct size on site. Please remember to cut and treat any cut ends with our Jakcure® Cut Treatment to ensure the product is compliant with our 25-year guarantee.

SPECIFICATION

•    Horizontal rails 45mm high x 15mm wide
•    Vertical bracing uprights 68mm wide x 19mm
•    Gap between horizontal rails is 15mm on all panels apart from 610mm (2ft) high panel which has 17mm spacing between each pale  (which is smaller than standard venetian hit and miss, therefore the panels do not match)
•    140mm gravel board to be included

VENETIAN PANEL HEIGHTS INCLUDE (1.83M WIDE)

*0.61m / 0.91m / 1.22m / 1.52m / 1.65m / 1.83m

*please note these heights do not include 140mm gravel boards.

Detailed installation instructions covering how to install panel fencing within our slotted posts are available.

Recommended Fixings

We recommend using 6 screws per panel or 12 per panel if using capping rails plus an additional 4 per gravel board. 60mm, stainless steel, self-drilling countersunk screws are available in packs of 100 or 200 to secure panels to posts. Panels should be screwed to the posts to secure the fence run.

If you require a non standard width panel e.g. to complete your fence run you would need 5 ½ panels, add a cut down kit to your basket in order to be able to cut the panel to the required size. Alternatively, please give us a call to speak to us about ordering a bespoke panel.

We recommend using our slotted Jakposts for intermediates, ends and corners, click on the button below to see the range

Slotted Posts

Gravel boards need to be used when panels are in contact with the ground as part of the 25 year Jakcure® guarantee. More details can be found on our Jakcure T&Cs page.

Gravel Boards

Capping Rails can be used on these panels. Use the button below to see our options

Capping Rails

Post Caps add the finishing touch to any fence, view the full range by clicking the button below

Post Caps

View our other types of fencing using the buttons below

Venetian Hit and Miss Panels

Venetian Metro Panels

All Fence Panels

Please Note that the dimensions of components may increase by 6% when first delivered as our treatment process can temporarily cause the product to swell.
