Secret Garden Collection Pergolas Single

COVERED BY JACKSONS 25 YEAR GUARANTEE

25 Year Guarantee



Single Pergola Bay

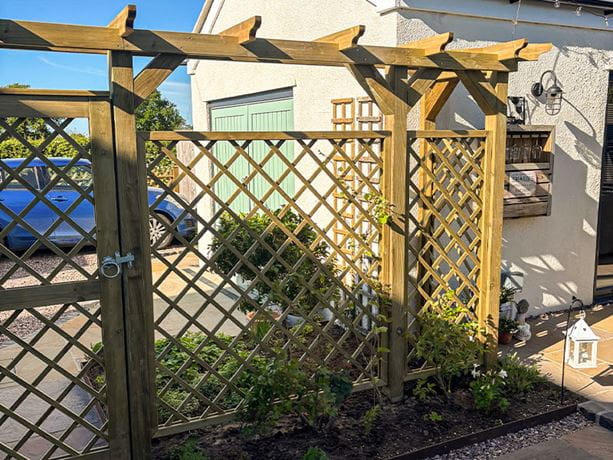

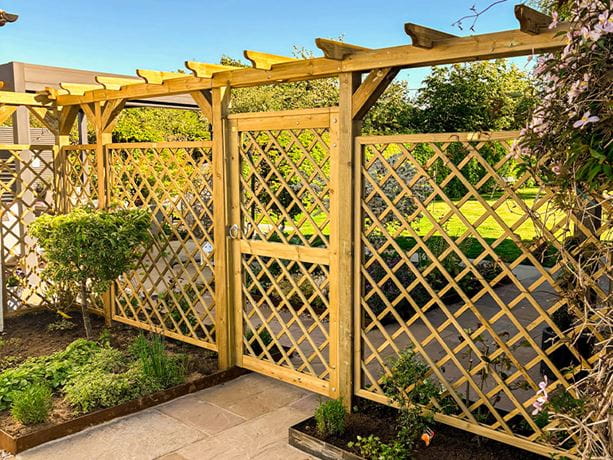

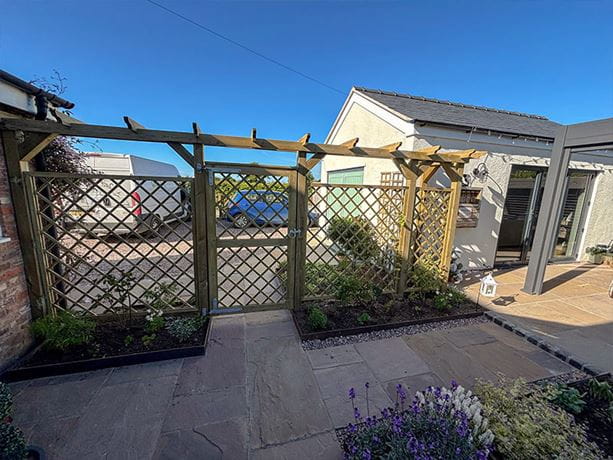

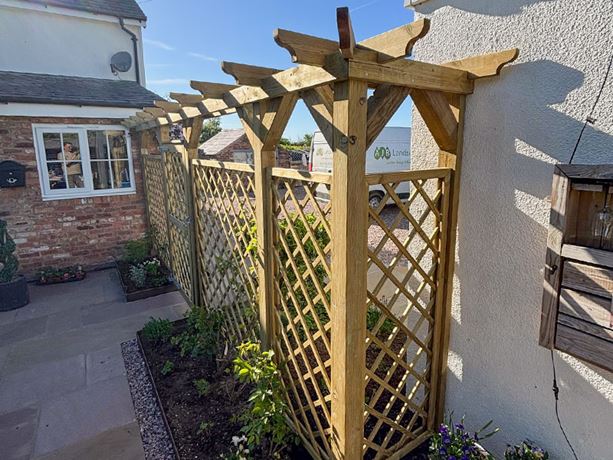

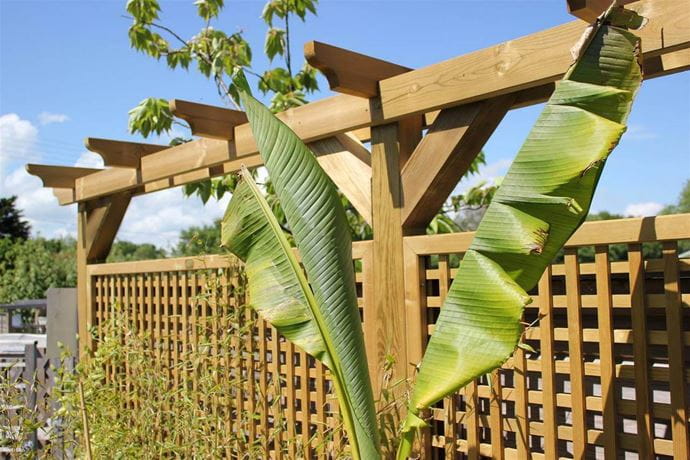

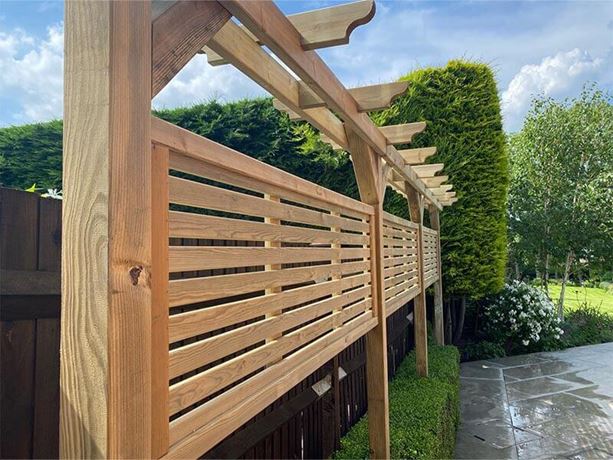

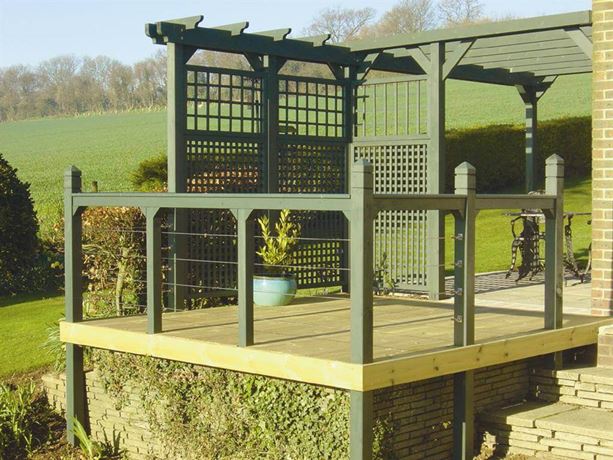

  • Single garden Pergolas can be used as dividing screens to separate patio areas from the rest of the garden which creates extra privacy for dining areas.
  • Jakcured and guaranteed for 25 years
View products Product information

WAS

EXC VAT

INC VAT

NOW

EXC VAT

INC VAT

Number
Product
Add to Basket

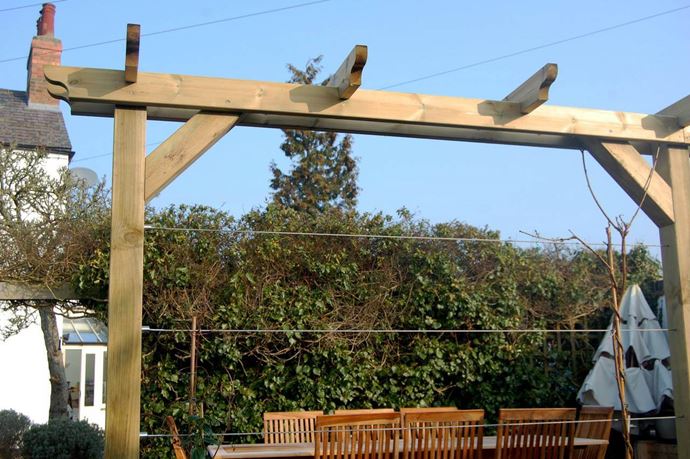

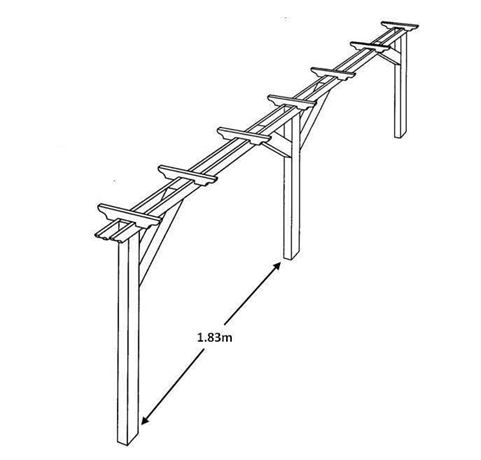

The standard length of all pergola bays is 1.83m as measured between the posts, this allows for our standard wooden fencing panels to be used in conjunction with our garden pergola systems. You can therefore increase the length of the pergola in multiples of 1.83m. The Cross Members overhang the structure by 200mm. We recommend that the pergola is installed so that the underside of the side rails are 2.0m above ground.

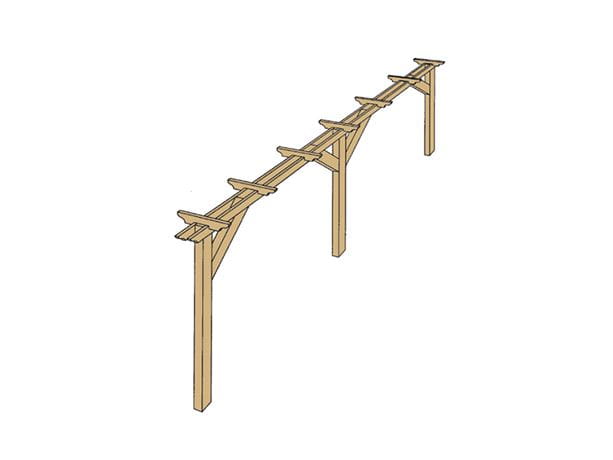

Single Bay sections

The table below explains the codes needed to purchase either the Single style of pergola and which bays to order for configurations from 1 to 5 bay examples.

  Code

  Single Pergola

1 Bay only PSSB Single Bay

2 Bays PSFB First Bay
  PSEB End Bay

3 Bays PSFB First Bay
  PSAB x1 Additional Bay
  PSEB End Bay

4 Bays PSFB First Bay
  PSAB x2 Additional Bays
  PSEB End Bay

5 Bays PSFB First Bay
  PSAB x3 Additional Bays
  PSEB End Bay























Download Installation Instructions



Let us help you design your Pergola or answer any questions, our specialist advisors are always happy to assist to make sure you get the best possible solution, Please use our General Project Enquiry Form.

General Project Enquiry Form



When using fixings/nails to join two timber parts we recommend drilling a hole in the first part to insert the nail through, this enables the nail to be driven easily into the other part of the structure.

Note: We recommend using 75mm nails (800210 - 1kg 145 per Kg) for the majority of the construction but you should use 100mm nails (800310 - 1kg 79 per Kg) for the in line braces. When using nails to join two timber parts we recommend drilling a hole in the first part to insert the nail through, this enables the nail to be driven easily into the other part of the structure.

Call us free on {% PhoneNumber %}

Line Drawings/Q40s
