Venetian Hit & Miss Fence Panels

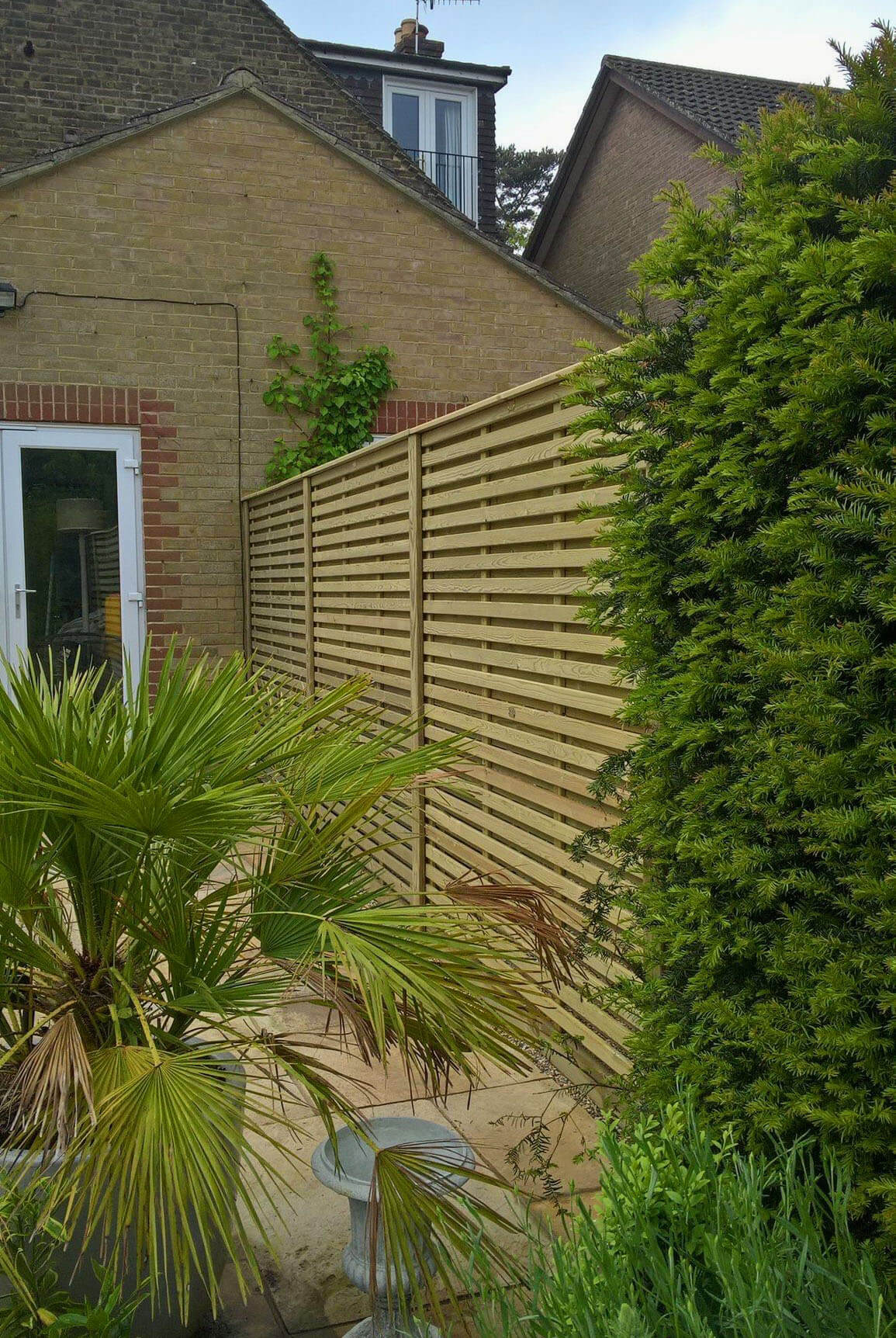

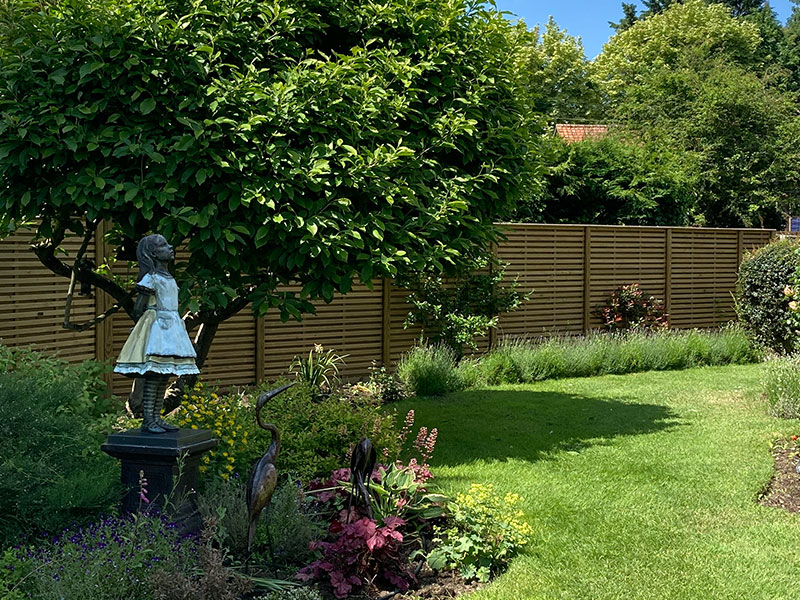

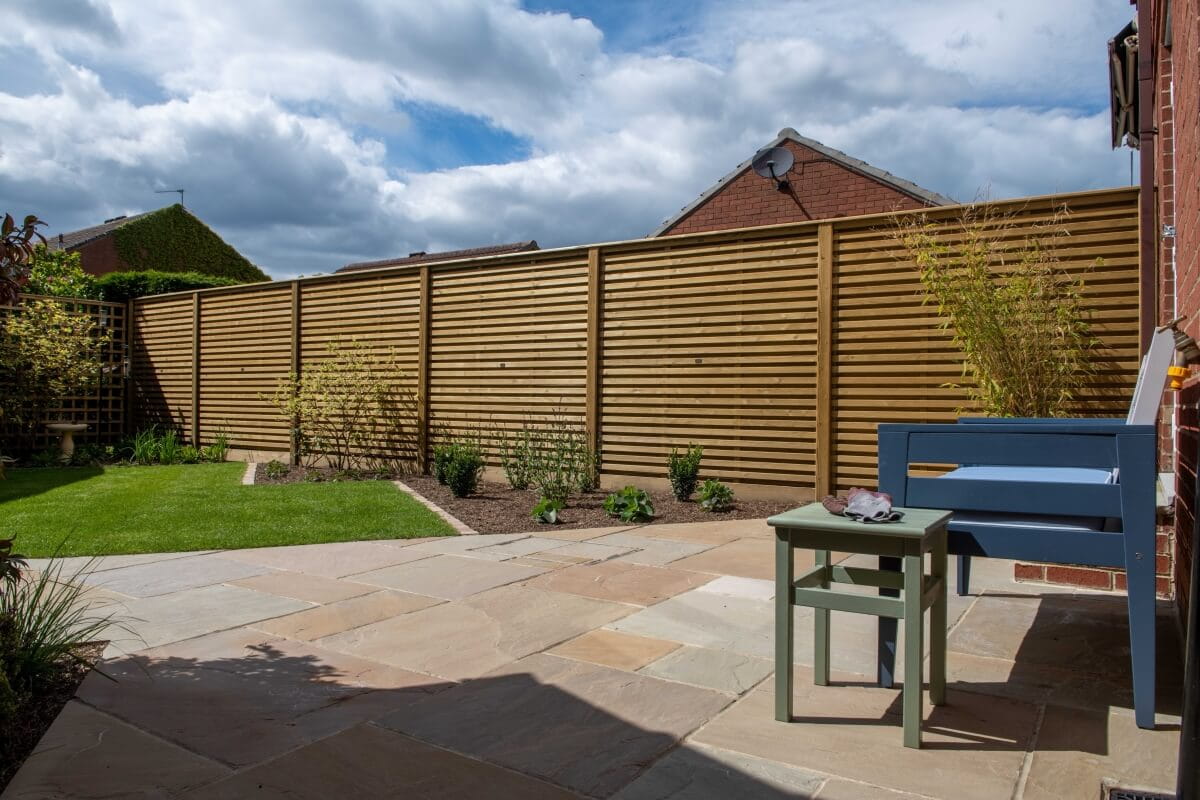

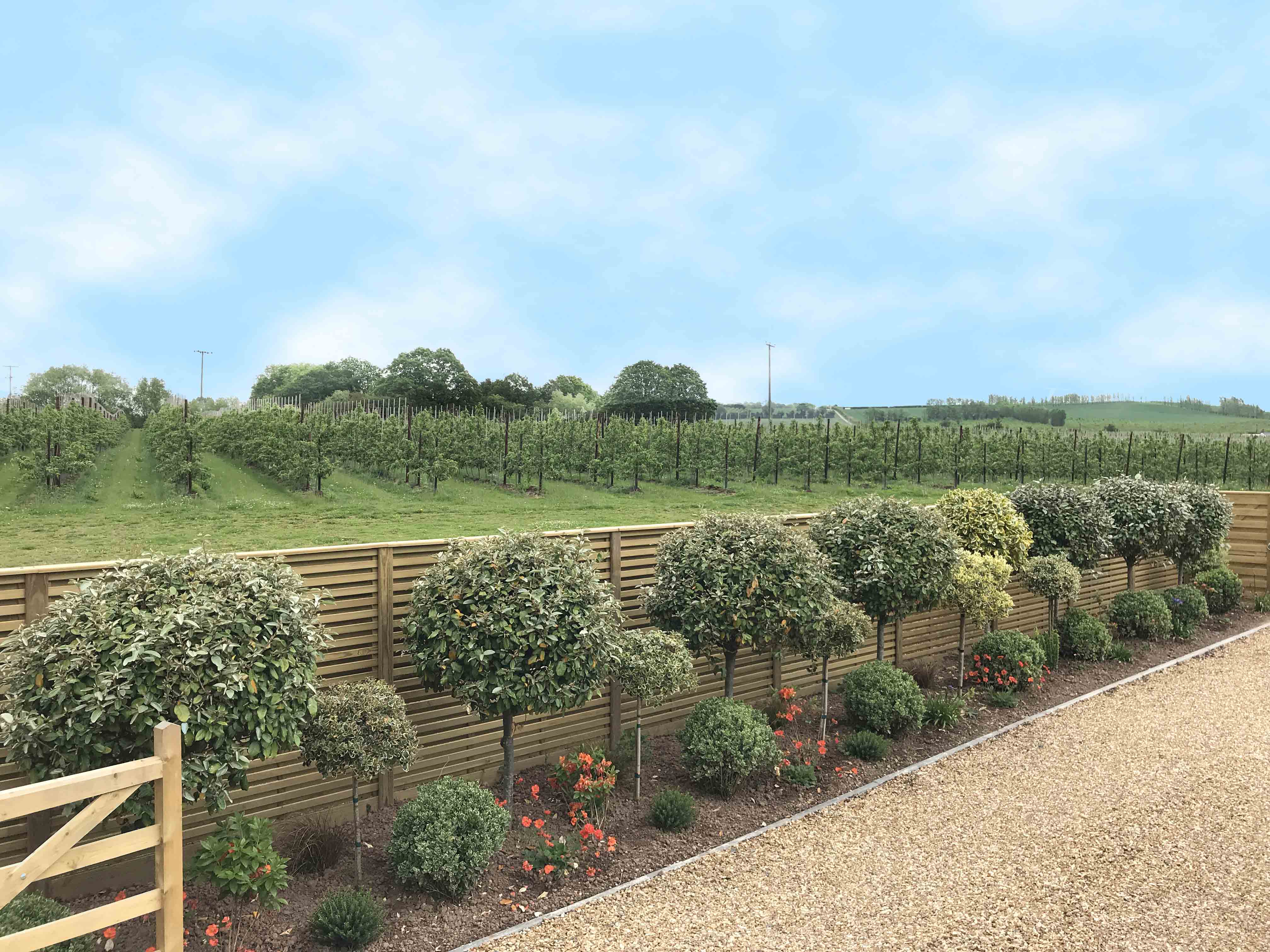

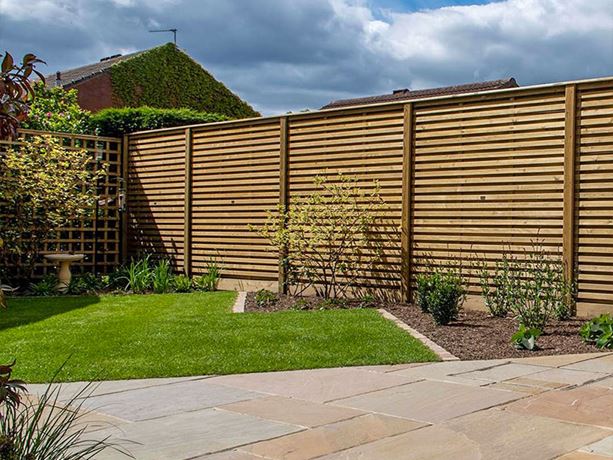

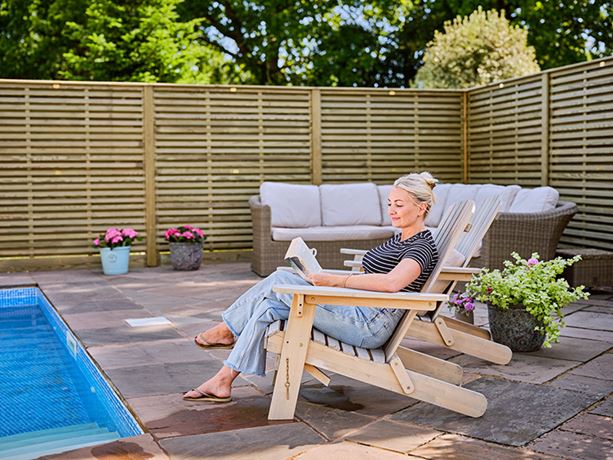

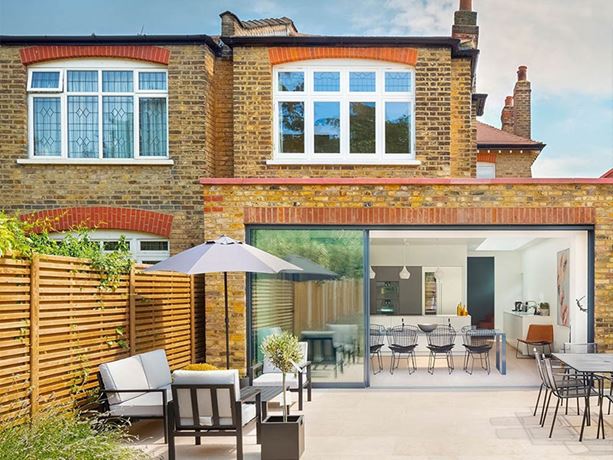

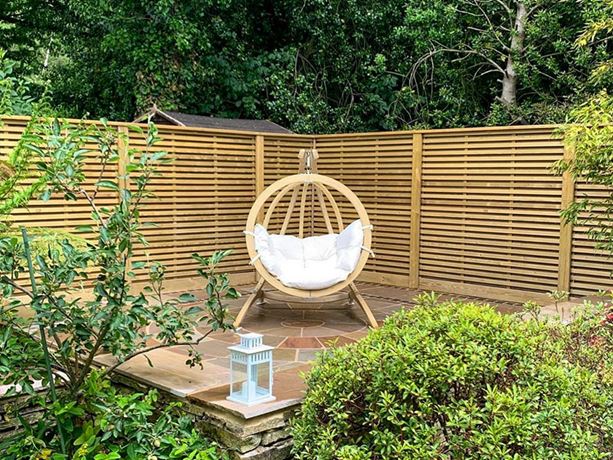

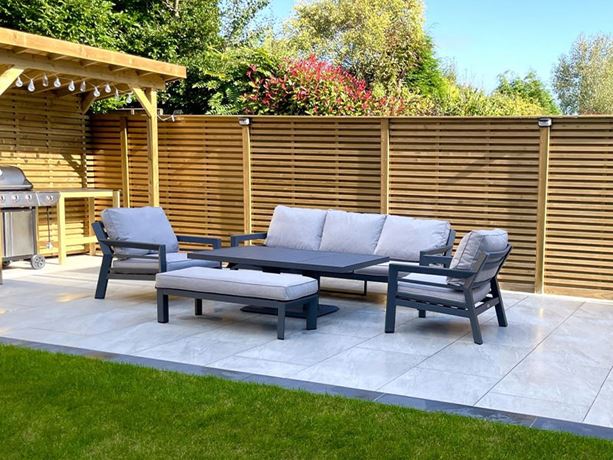

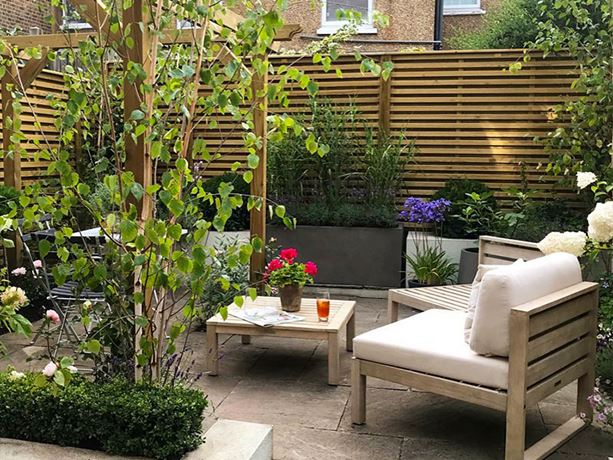

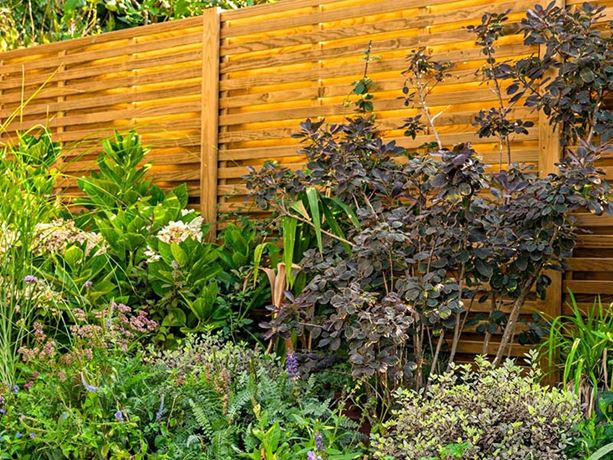

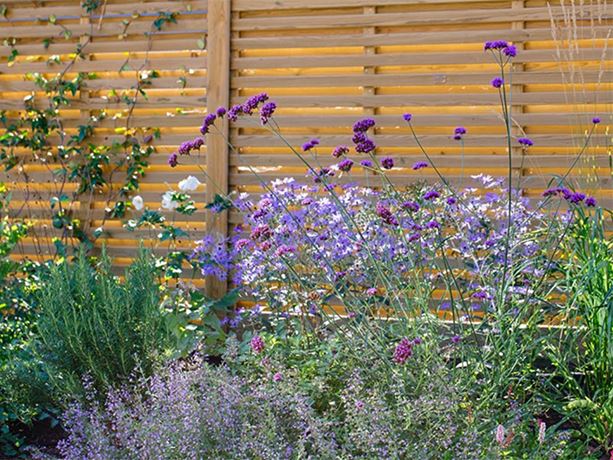

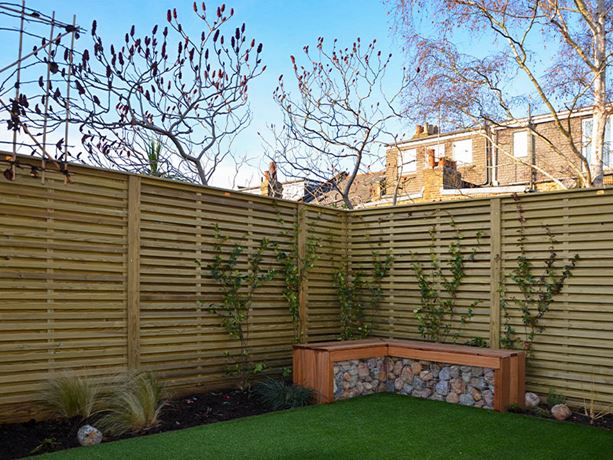

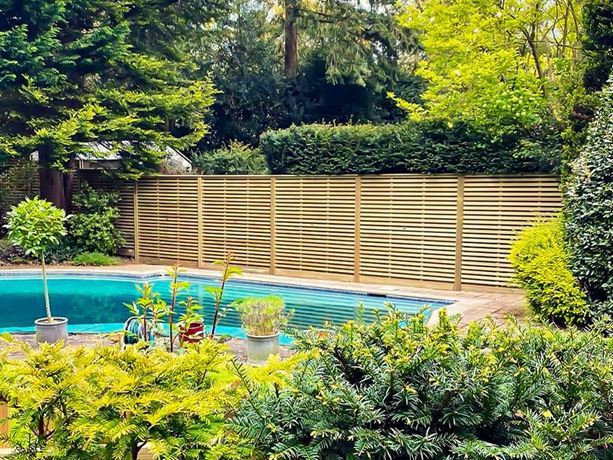

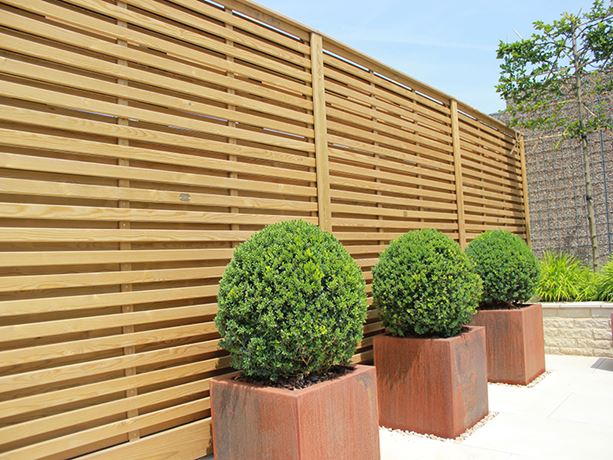

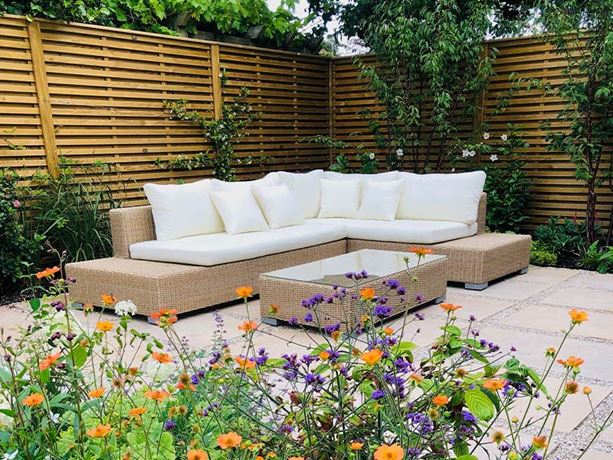

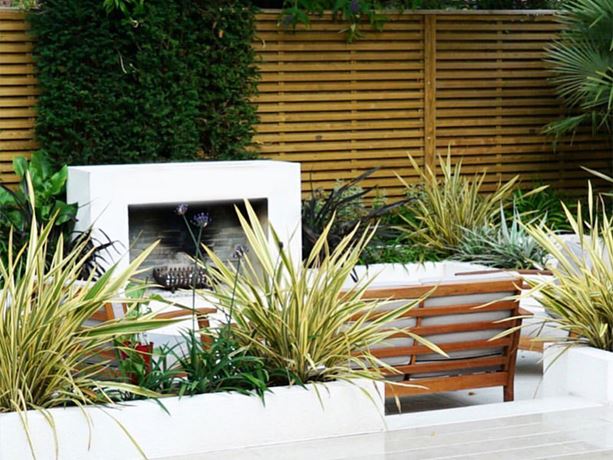

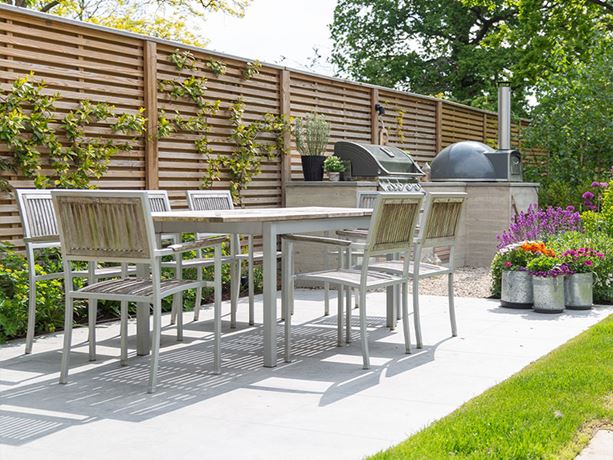

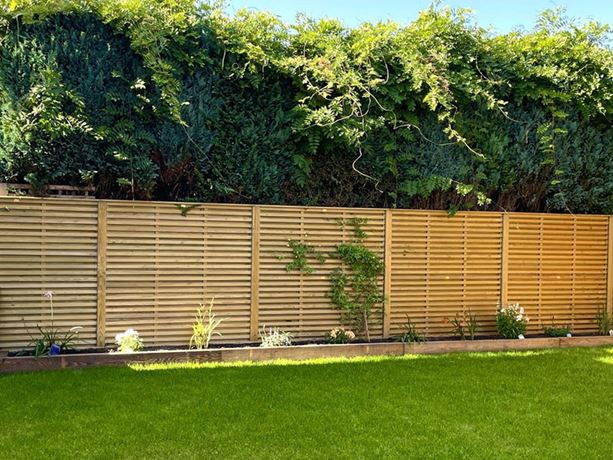

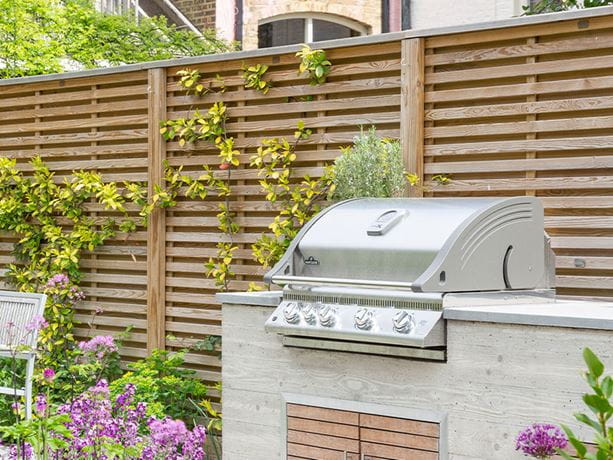

A variation on the Venetian fence panel theme, and just like that style panel; our Venetian Hit and Miss looks contemporary and sleek, complementing the suburban garden as well as more traditional style gardens beautifully - and there the resemblance ends - in the battle for more light, versus less privacy, the Venetian Hit and Miss panel wins on both counts.

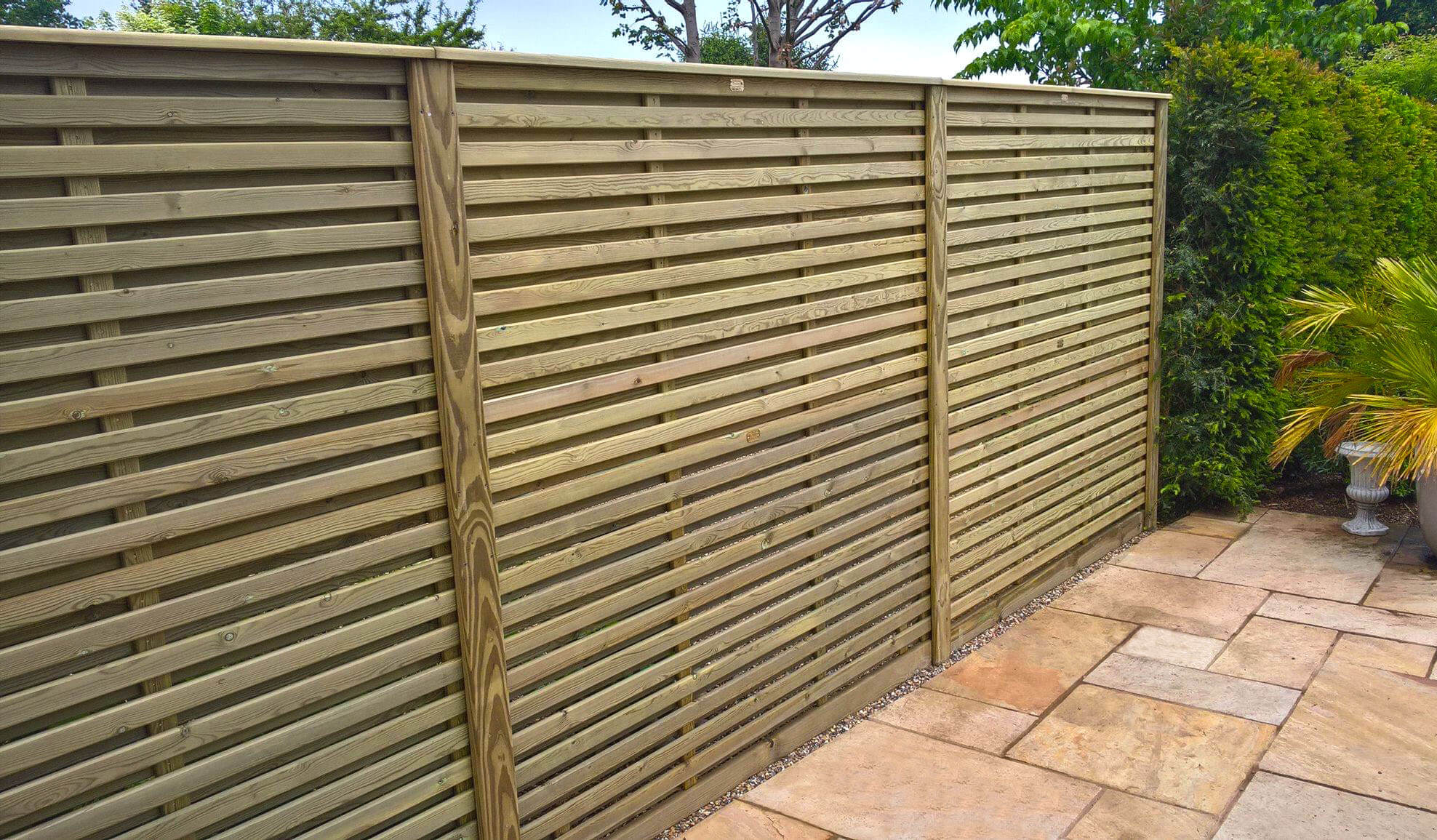

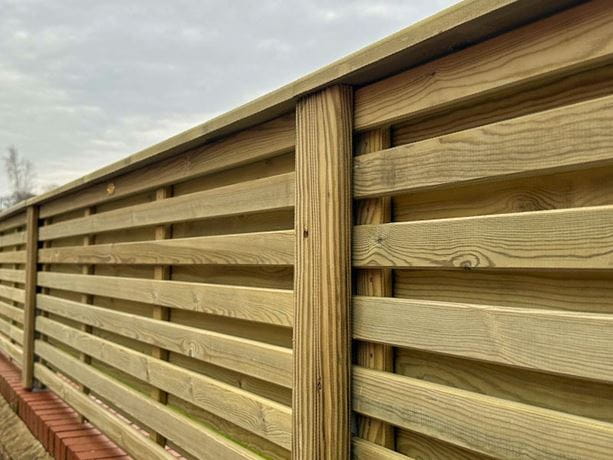

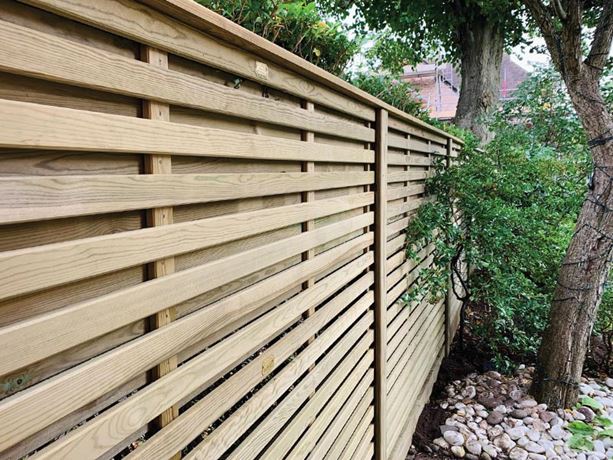

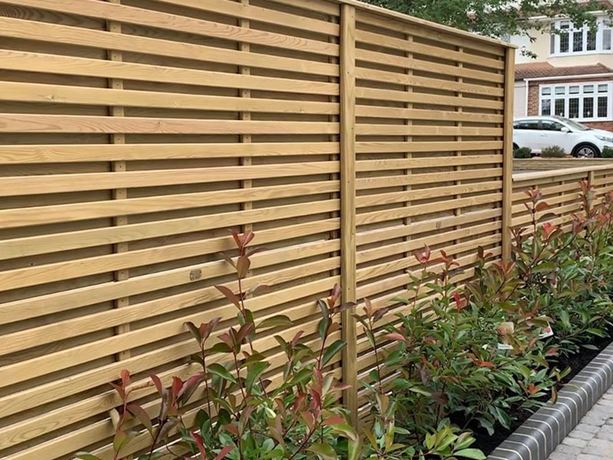

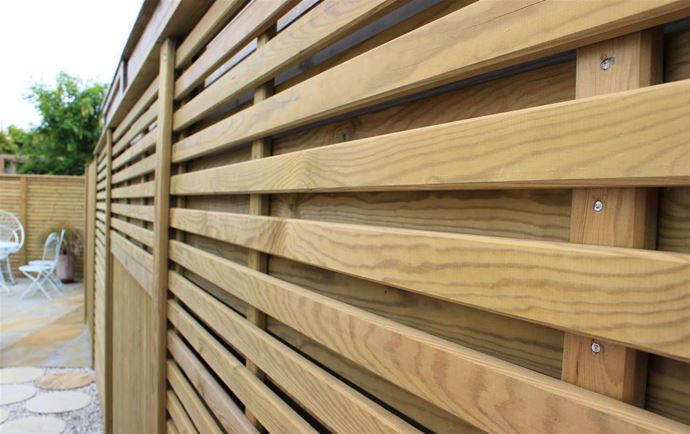

The horizontal slats that are usually only on the front of Venetian are also on the other side, these are fixed to cover the space between the slats on the first side with the slats alternating, in much the same way as hit and miss panels are made. Which means some air and light can still pass through, but the view through is obscured. Another big benefit is they are 'good both sides' so you and your neighbours don't have a view of rails, which can be a bone of contention.

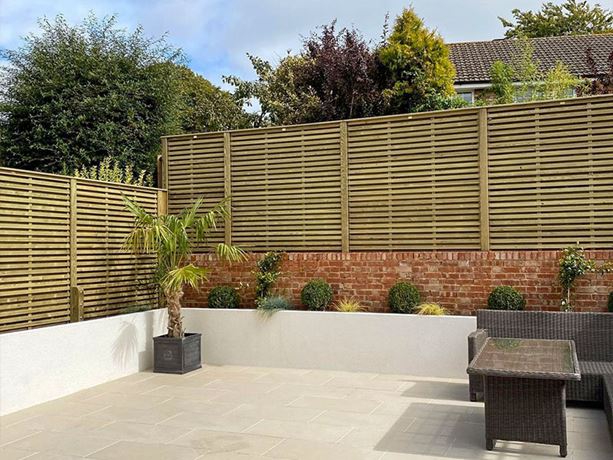

The additional slates required to make these panels 'good-both-sides', also makes them quite heavy, so for ease of handling we offer them in two heights both at 1.83m wide supplied along with a panel width cut-down kit. To achieve a taller fence, the panels can be stacked - for example stacking two 0.907m panels will give you 1.807m high plus 140mm gravel board gives a total fence height of 1.97m

The panels are designed for use with slotted Jakposts and gravel boards.

We recommend using capping rails to add the finishing touch to these frameless panels. For mathcing garden gates please speak to our sales team.

Please note: we do not manufacture 1.83m x 1.83m Venetian Hit and Miss panels. Combining 2 x 0.907m panels will give you a fence height of 1.8m but you must add a gravel board in order for our 25 year guarantee to be valid making the total fence height  1.95m.

If you include a capping rail that will add another 20mm to the overall fence height

Taller variants can be achieved by stacking these panels, up to 2.4m tall, using heavy slotted posts. Please note you may require planning permission from your local planning department if you fence height exceeds 2m, so please do check.

If you need a narrower panel to complete your fence, it is fine to cut a panel to the correct size on site. Please remember to treat any cut ends with Jakcure Cut Treatment.

Common fence panel combinations:

• 2 x 0.907m panels + 140mm gravel board = 1954mm fence
• 1 x 0.907m & 1 x 0.607m + 140mm gravel board = 1654mm fence

  Specification

Horizontal Slats 45mm x 16mm

Gap between slats is 30mm  (which is larger than standard venetian, therefore the panels do not match)

Panels can be stacked to create higher fence

Venetian Hit & Miss Panels Heights (1.83m wide)

0.607m / 0.907m

Detailed instructions of how to install panel fencing on slotted posts are available.

Recommended Fixings

We recommend using 6 screws per panel or 12 per panel if using capping rails plus an additional 4 per gravel board. 60mm, stainless steel, self-drilling countersunk screws are available in packs of 100 or 200 to secure panels to posts. Panels should be screwed to the posts to secure the fence run.

If you require a non standard width panel e.g. to complete your fence run you would need 5 ½ panels, add a cut down kit to your basket in order to be able to cut the panel to the required size. Alternatively, please give us a call to speak to us about ordering a bespoke panel.

We recommend using our slotted Jakposts for intermediates, ends and corners, click on the button below to see the range

Slotted Posts

Gravel boards need to be used when panels are in contact with the ground as part of the 25 year Jakcure® guarantee. More details can be found on our Jakcure T&Cs page.

Gravel Boards

We recommend using Capping Rails on these panels. Use the button below to see our options

Capping Rails

Post Caps add the finishing touch to any fence, view the full range by clicking the button below

Post Caps

Please call our sales team to discuss gate options in this design, alternatively Brook or Standard Venetian gates complement these panels well.
