Universal Field Gate Posts & Wall Plates

COVERED BY JACKSONS 25 YEAR GUARANTEE

25 Year Guarantee

Universal Field Gate Posts & Wall Plates

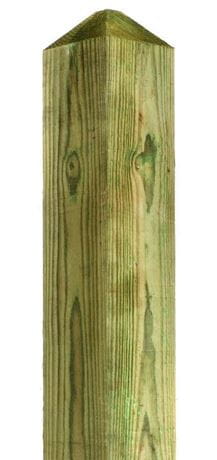

  • Square tops shaped four ways
  • The Hang posts should be placed so the stress relieving cut is at 90o to the gate hooks.
View products Product information

WAS

EXC VAT

INC VAT

NOW

EXC VAT

INC VAT

Number
Product
Add to Basket

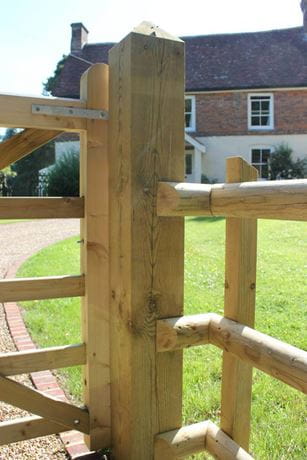

Gate hanging posts are stress relieved by having a saw cut in the middle of one side allowing the timber to move as it dries out or swells according to the weather, thus avoiding unsightly splits.

Please note: if hanging between posts, customers should be aware that this limits possible adjustment, to the lifting or lowering the slam end of the gate across the gate opening.

25-year Jakcure guarantee:

  • Please note that when cutting or drilling this product we recommend using Jakcure® End Grain Preservative to ensure cut timber is not left untreated.

The table below will assist you to establish which posts to use.

Post Length

Section

Code

Gate Type

Finish

2.1m

175x175mm

272400

Hanging Field Gate

Sawn

2.1m

150x150mm

274000

Hang/Slam Field Gate Sawn

2.4m

175x175mm 273800

Special Gates

Sawn

2.4m

150x150mm

273900

Special Gates

Sawn

2.7m 175x175mm 273880 Special Gates Sawn
2.7m 125x125mm 272600 Boarded Gate over 1m wide Sawn
1.8m 100x75mm 228000 Wall Plate Planed
2.1m 100x75mm 228050 Wall Plate Planed
2.4m 100x75mm 228100 Wall Plate Planed
1.8m 100x50mm 171000 Wall Plate Planed
450mm 115x150mm 927110 Centre Gate Stop Field/Entrance
450mm 115x150mm 927120 Centre Gate Stop Courtyard
450mm 100x150mm 602200 Centre Gate Stop F/B&Boarded/Jaktop



Line Drawings/Q40s
