Wooden Field Gates

COVERED BY JACKSONS 25 YEAR GUARANTEE

25 Year Guarantee

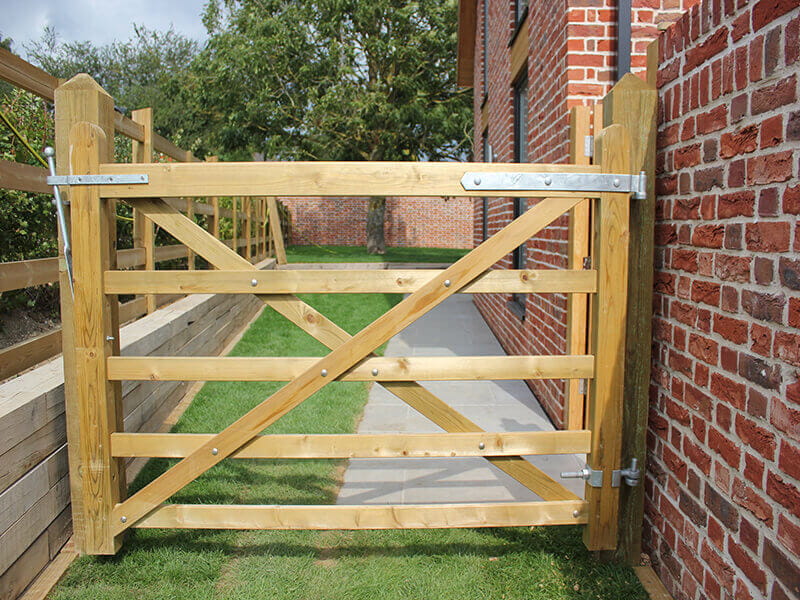

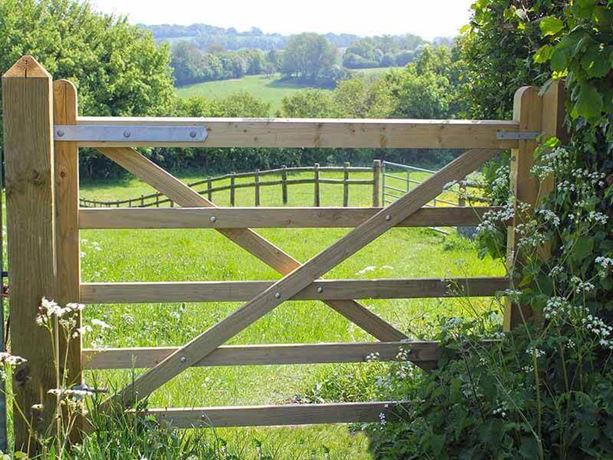

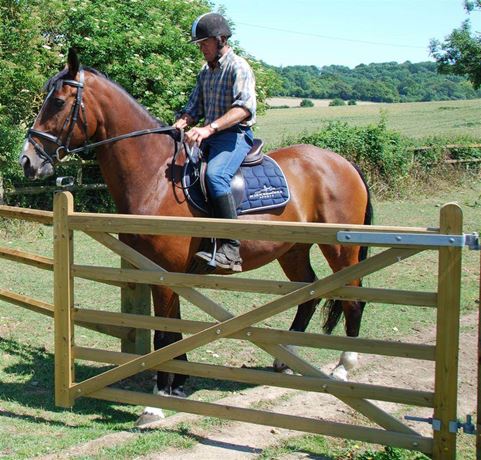

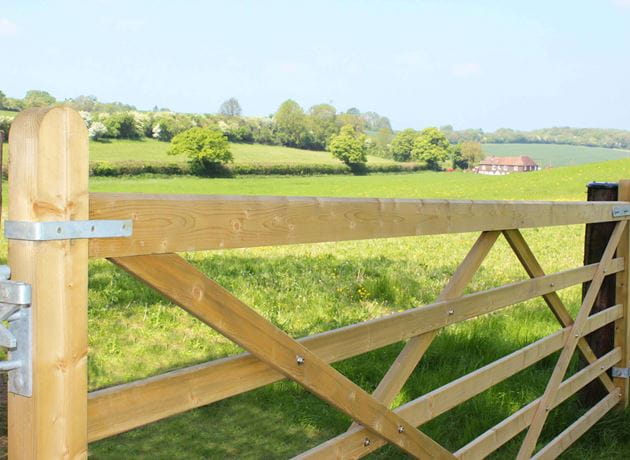

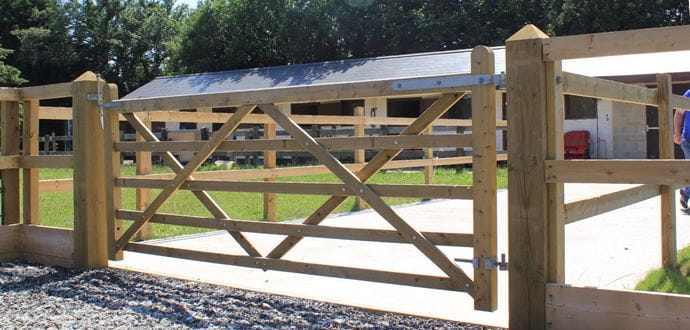

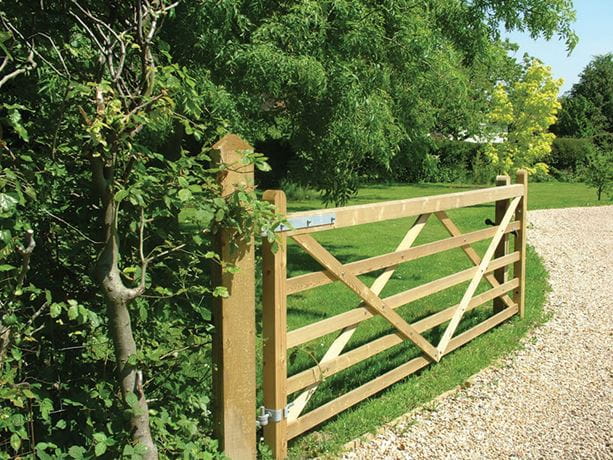

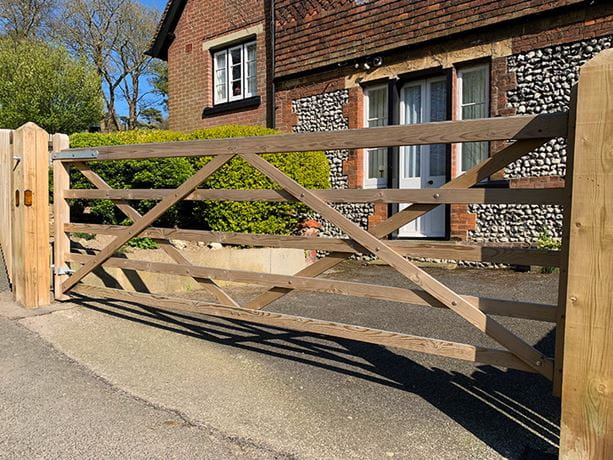

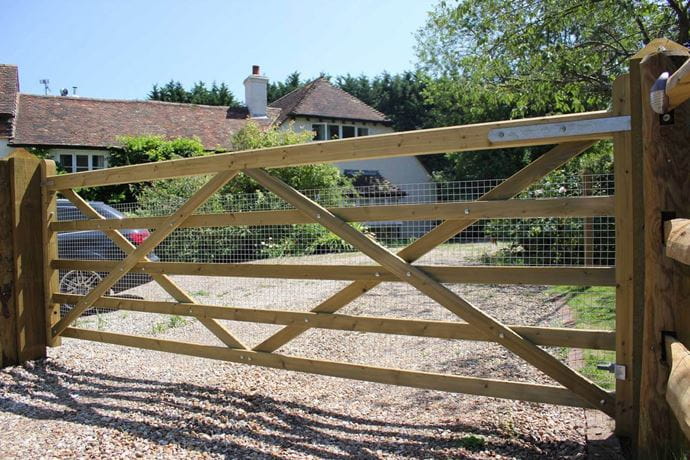

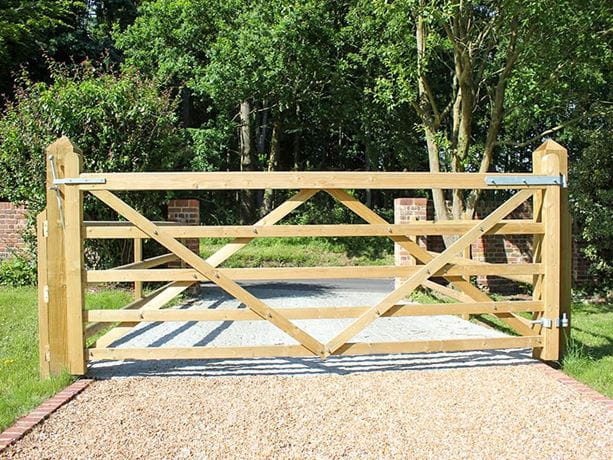

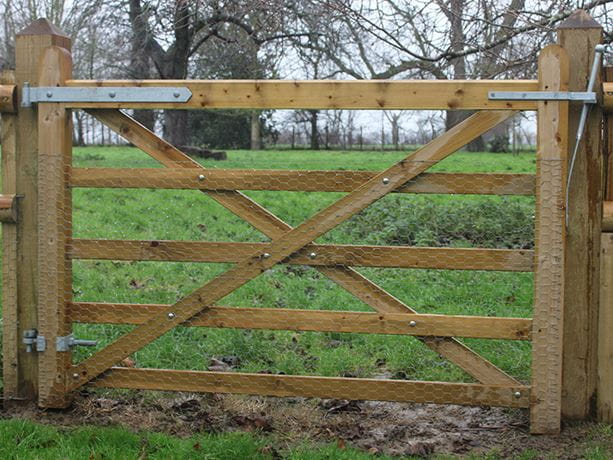

Universal Timber Field or Driveway Gate

  • Our Uni-Gates are called this as they are 'universal' which means they can be hung as right or left handed
  • Gate is designed with heavy top rail over entire width for extra strength
  • Both hanging and slam stiles are drilled to allow gates to be hung on the left or right
  • New planed finish
  • Rail and brace crossings are bolted with stainless steel bolts
  • Top bars are chamfered
  • Cross braced for extra strength
  • All joints are morticed and tenoned

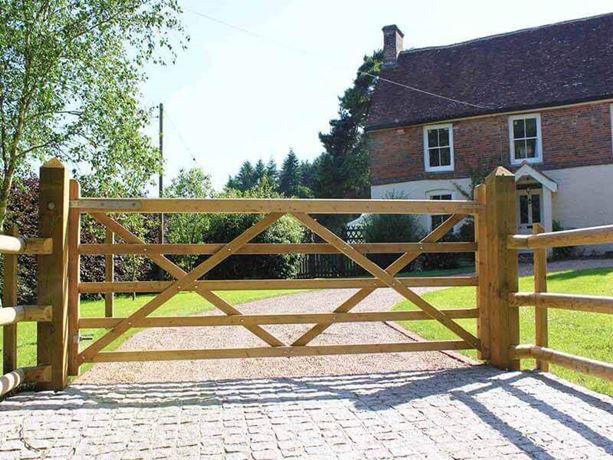

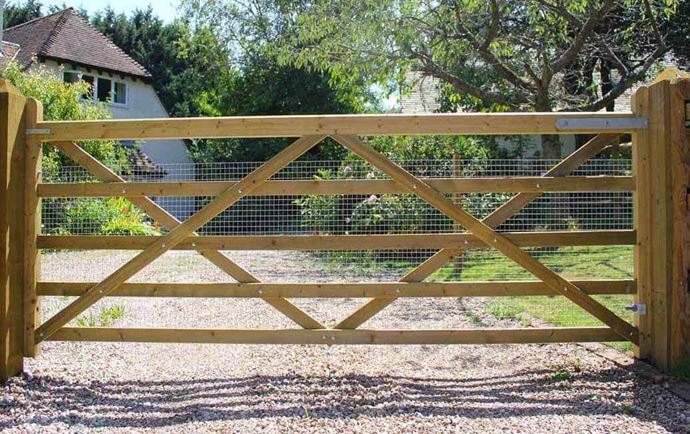

  • Commonly used as driveway gates or field gates.
  • These gates can be automated - please call
Gate Builder Build an Entrance or Uni gate.

WAS

EXC VAT

INC VAT

NOW

EXC VAT

INC VAT

Number
Product
Add to Basket

Specification

  •  0.9 - 4.2m wide
  • Gates are 1.27m high overall. Top rail 100mm x 75mm, under rail and cross braces 75 x 25mm
  • Hanging and slam stiles (rounded top) 100 x 75mm. With both stiles drilled to allow gates to be hung on the left or the right
  • Supplied in natural Jakcured finish

Note: Narrow Uni-Gates (under 2.1m wide) when hung in a pair - Left handed bracing when viewed from front, opposite hanging is available at no extra cost. If you require a matching symmetrical braced pair, please make a note in the special instructions at checkout.

Don't forget to order hanging systems

Our standard sets are shown in the table below, but please also see our separate posts and gate fitting as well as our other gate fitting sets for a list of available options.

Note - the sets shown include posts that are fine sawn finish.

Fitting of irons to gates are included, for a pair of gates please state which gate should have loopover catch and drop bolt fitted as "special instructions" on checkout page.

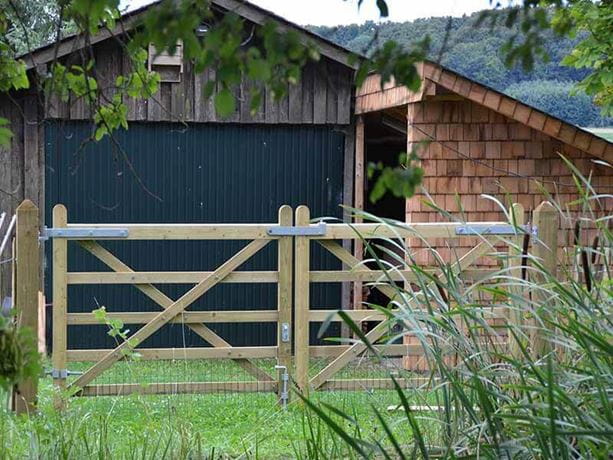

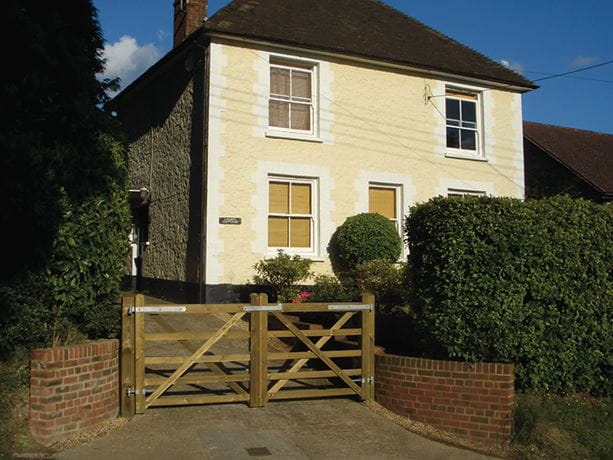

TRHSDL = Uni Field Gate/Entrance Double Leaf

TRHSSL = Uni Field Gate/Entrance Single Leaf (Wide) 1.8m to 3.6m

TRHSSLN = Uni Field Gate/Entrance Single Leaf (Narrow) 0.9m to 1.5m

If you have requested your gate to be fitted we will fit as Right Hand Hung (when viewed from outside of the property) as standard.

When installing on a hill or incline, longer posts may be required allowing gate to have additional ground clearance and avoid grounding. This may also effect the option of a centre gate stop.

Please state in the special Instructions box at checkout any special request.

The hanging system codes are shown at the end of the product list on this page.

Description

Code

TRHSDL

TRHSSL

TRHSSLN

AntiLift device

271200BM

2 1 1
Loop over catch 271410 1

Fitting irons to gate

271700 2 1 1

Hinge set

271800

2

1

1

Spring catch set

271300

1

1

Gate post 2.1m 175x175

272400

2

1



Gate post 2.1m 150x150

274000

1

2

Heavy drop bolt

351400

1



Drop bolt receiver

351440

1



Centre gate stop

927110

1



Installation Instructions Click below for Field Gate Instructions

Installation Instructions



Note: If you are thinking of automating a gate on this page either now or in the future, please discuss with us prior to purchase. Some types of gate automation require the gate to be built in a different way to our standard gates.



Remember to order your gates fittings and accessories. Explore our Gate Fitting Kits below

Gate Fitting Kits

Please note that a centre gate stops, drop bolts and catchs/atches are essential for our gates, as they support the gates in their closed position and resist twists which can occur in the gates.View our gate post product page below.  More information can be found at the bottom of this section.

Gate Posts

Uni Gates are often used for driveways, but if you are looking for a more attractive gate with stile and crook, you may be interested in our Traditional Entrance Gates:

Traditional Entrance Gates

Please be aware: Due to the natural variability of materials used in the manufacture of timber field and entrance gates, the gates are prone to some movement such as bows and twists in the timber components as they weather. This is natural and should not be considered as a defect, having no impact on the durability of the gate itself. When correctly fitted, the adjustable hinge sets, catches, centre gate stop and drop bolts are all intended to help keep the gates clear of the ground and in line also allowing for adjustment if gates do move. Hanging gates ‘between’ posts is therefore not recommended as this prevents the gate hinges being adjusted for such natural movement. We understand that sometimes gates have to be installed between posts, some examples may include kissing gates and gates with ‘two-way’ latches where the gate has to be hung between posts. In these situations alignment of the gate has to be treated as less critical and a compromise with its function. Please feel free to call us for advice.
