Estate Fencing And Gates

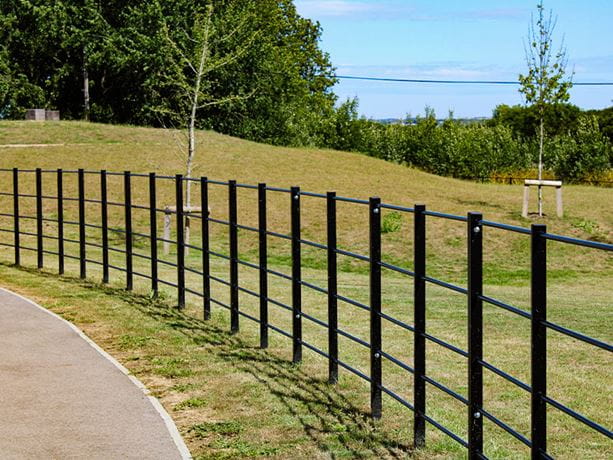

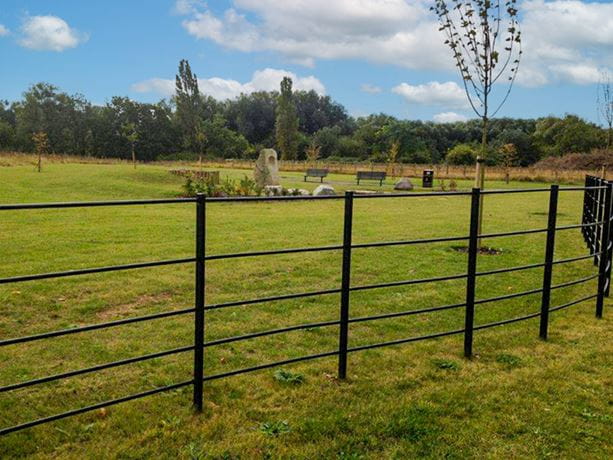

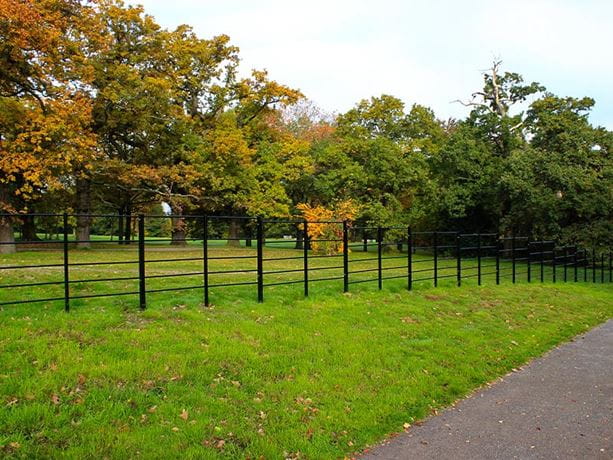

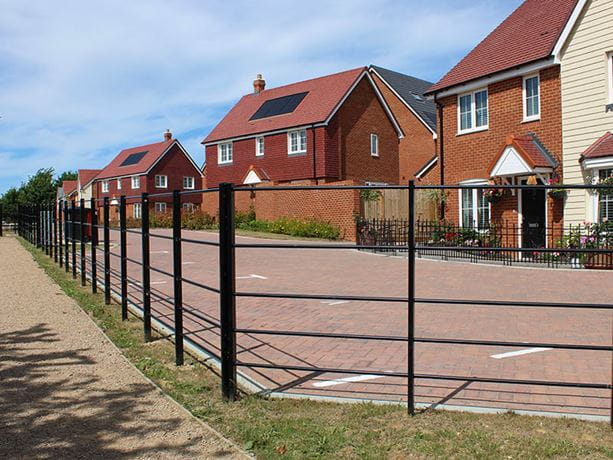

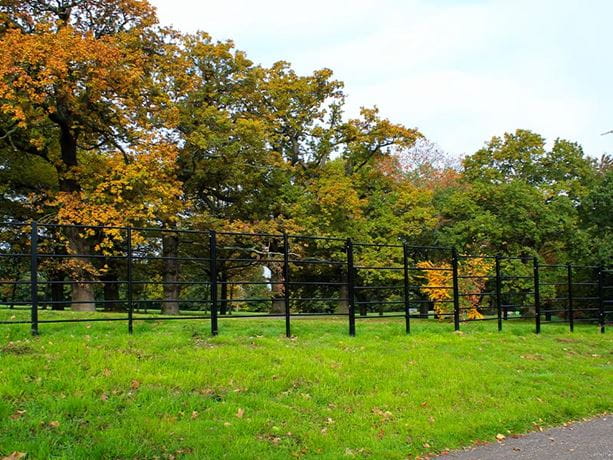

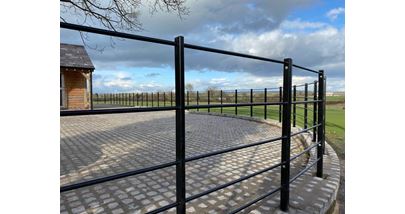

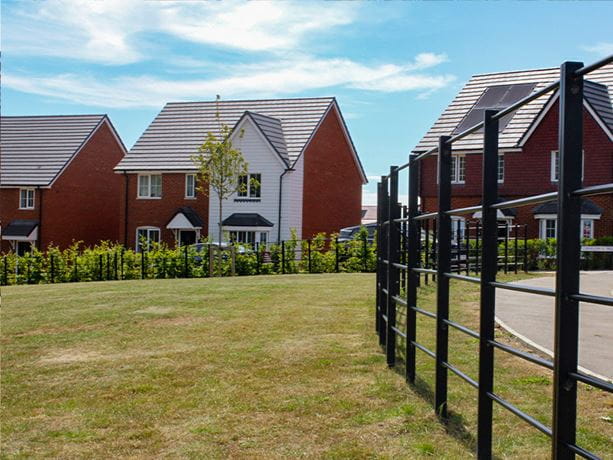

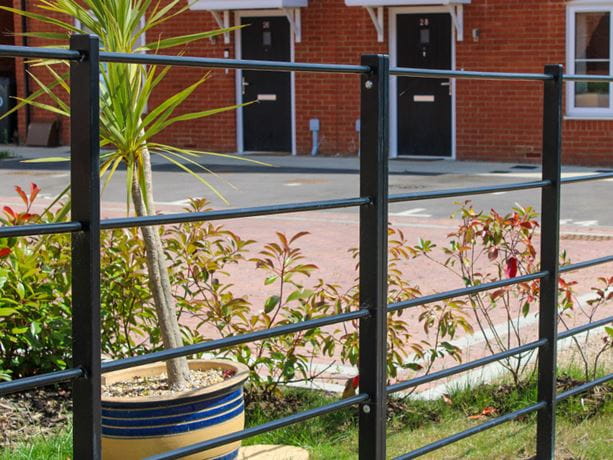

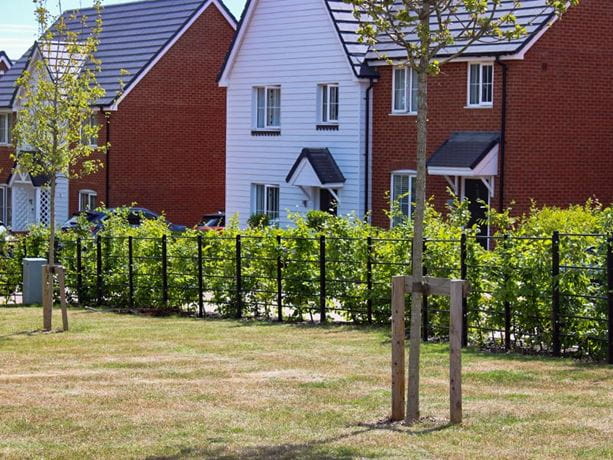

This product is supplied in galvanised (silver) finish as standard. If you require coloured railings please call our sales team to organise powder coating. All images show estate railing in black powder coating.

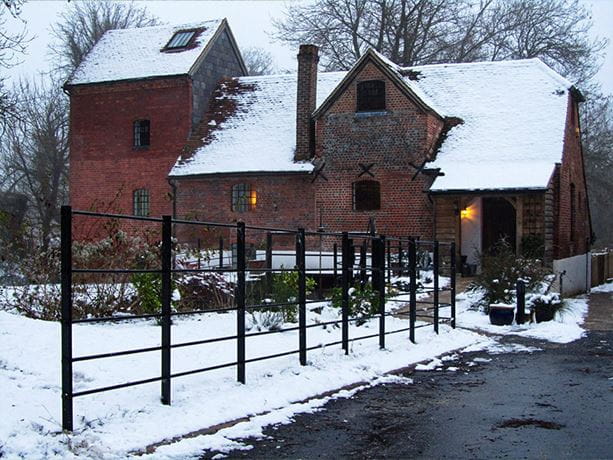

Estate fencing has a traditional railing style that everyone associates with country parks and rural estates, it's been around for years, but can look rough, ready and ancient. Originally estate rails and posts were manufactured from flat bar, which is prone to bending and can be heavy.

Better Estate Fence And Railing Design

We have improved on the traditional fence and created an economical modern, tubular version that is stronger, lighter and virtually maintenance free. Like all Jacksons steel fencing, it is galvanised and has a 25 year service life guarantee. Post ends are filled with heavy duty black plastic infills, for all colours including galvanised as standard.

Please note: Panels cannot be raked, only stepped to accommodate sloping ground.

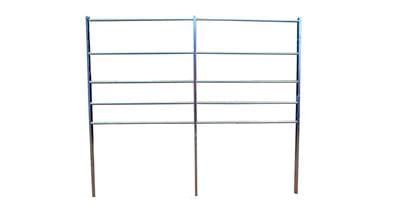

Metal Estate Fencing Specifications

• Fence panel height: 1.215m above finished ground level
• Fence Panel width: 2m wide overall
• Uprights/posts: 50 x 25 x 2mm RHS (end posts are drilled with 2 holes for bolting to the next panel)
• Rails: 5 x 19mm diameter CHS

Panels are bolted together using 2 x M8 x 65 Coach bolts (804100). If a panel needs reducing to size at the end of a run, a 50x50mm SHS end post is required (079801), the cut rails are then fed into the end post with uneven cuts hidden inside post (no fixings required).

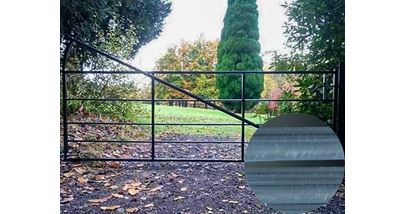

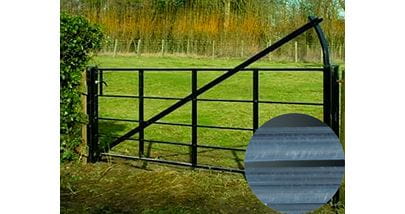

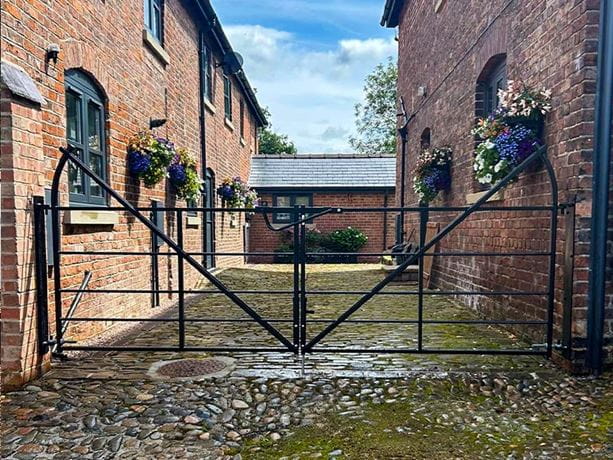

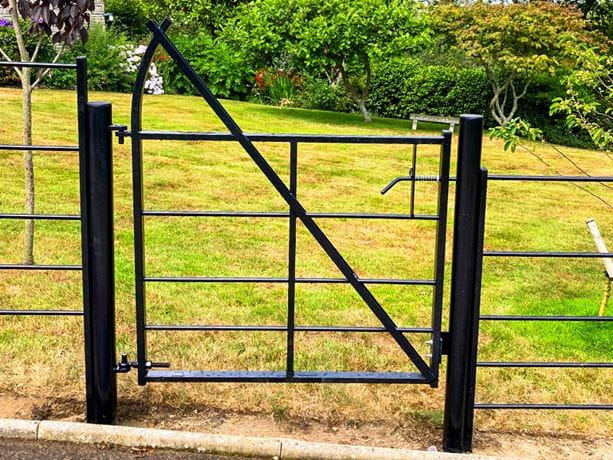

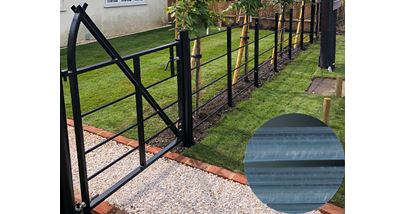

Estate Railing Gates

Manufactured from the same high quality materials and with all the same benefits as the estate railings, these elegant estate gates are ideal when combined with estate railings or in the place of any metal field gate. The graceful crook with the diagonal strengthening brace adds an attractive feature to the gate whilst also adding a level of quality not always available with other suppliers.

All products on this page come galvanised (silver) as standard. If you would like extra powder coating then please contact our sales department on {% PhoneNumber %}.

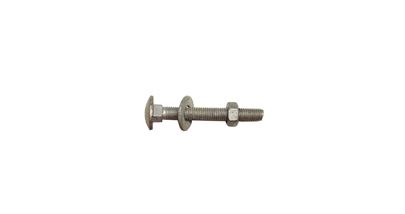

Remember to order: 2 x M8x65 Coach bolts (804100) to hold panels together.

Coach Bolts

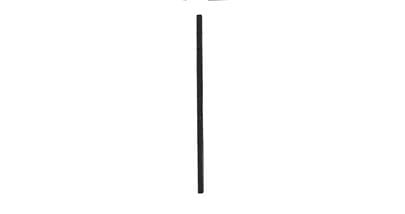

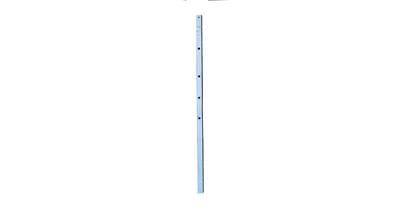

If a panel needs reducing to size at the end of a run, a 50x50mm SHS end post is required (079801), the cut rails are then fed into the end post with uneven cuts hidden inside post (no fixings required).

End post

Please note: This product comes galvanised as standard, optional powder coating is available at extra cost. If you would like the product supplied in a black finish like the photos you will need to call us to add powder coating to your order.

Please note: Panels cannot be raked, only stepped to accomodate sloping ground.

Document Downloads

• Q40 Estate railings
• Estate Single Gates 1200mm and 3000mm - J402051sht1
• Estate Single Gate 3600mm - J402051sht2
• Estate Double Gates - J402051sht2D
• Estate Fencing - Standard - J401030sht9
• Estate Fencing - Stepped - J401030sht10
• Estate Kissing Gate 1500mm - Wheelchair Access - J402051sht10
