Garden Balustrade

Garden balustrade for use with decking

We manufacture two styles of garden balustrade. All balustrade styles are made from premium quality Jakcure® pressure treated timber, with a 25 year guarantee.

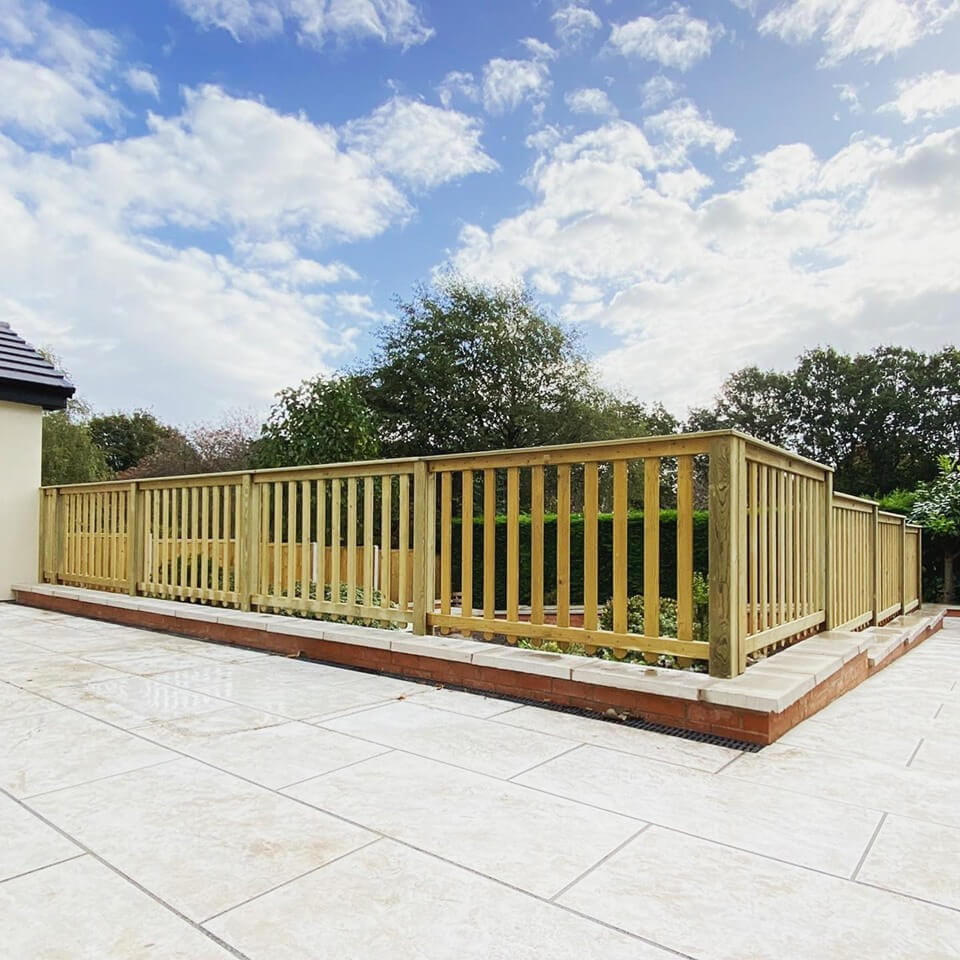

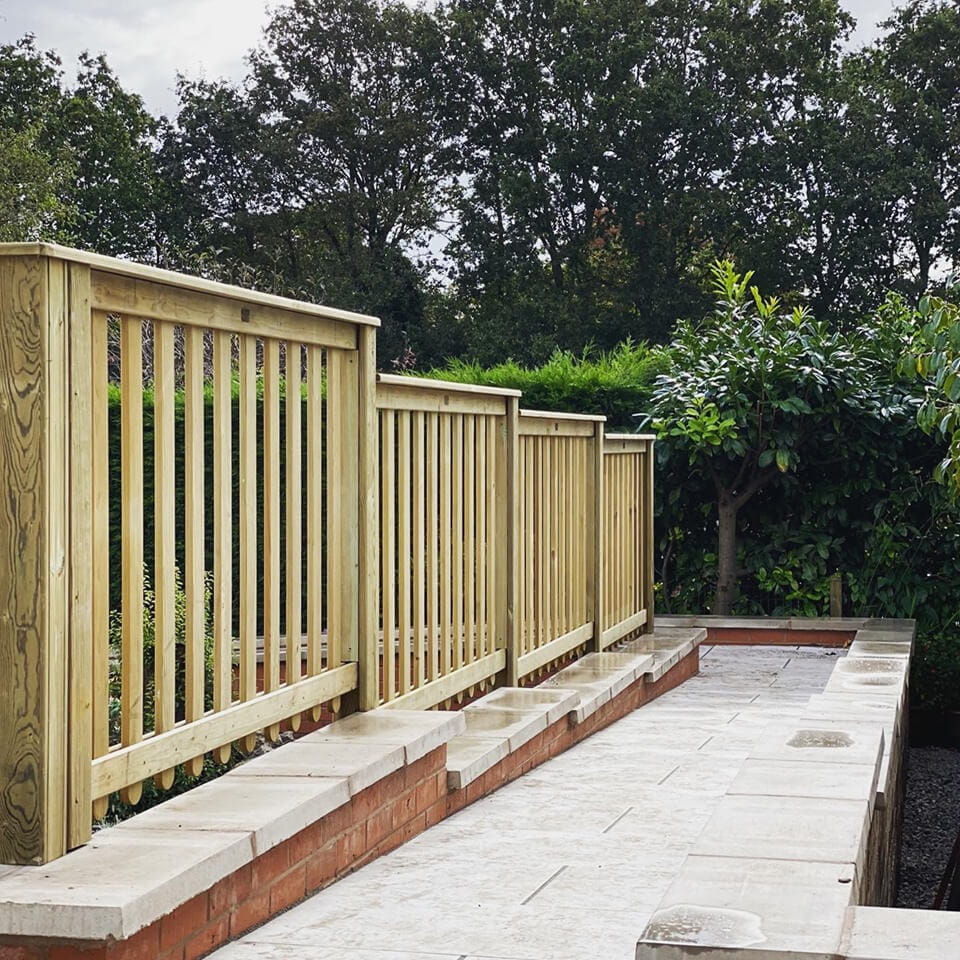

Style 1 - plain timber pales

Pre-assembled garden balustrade panel system that gives a finished height of 1.1m including capping rail in a standard width of 1.8m. The vertical pales are 75 x 20mm, 100mm apart, which complies with building regulations; fitted with 2 pairs of horizontal rails of 75 x 20mm which fit each side of the pales, and fixed into position with timber dowels. These panels, as well as being stylish, are ideal for going up slopes, as they rake to suit any angle of incline.

Style 2 - turned timber spindles

Pre-assembled garden balustrade panel system that gives a finished height of 1.1m including capping rail in a standard width of 1.8m. This system comprises of turned vertical spindles 40 x 40mm, which fit between 2 horizontal rails 70 x 55mm, spaced 100mm apart with specially formed 40 x 30mm T section spacers.

All systems are fitted in Jakposts®, either 1060mm high for normal balustrade, or 2.1m if a pergola is to be installed above the deck.

The posts are fitted into galvanised & PPC coated black shoes 100 x 100mm. Use code (756000) for inter posts & (756010) for end/corner posts upon a base board which is bolted through the deck.

In addition, a capping rail (756800) 3.9m long x 120mm x 21mm is available and should always be used on Style 1 system, and optional on Style 2 system.

Gates

• 1.0m wide opening inwards, fittings included
• Style 1 - right handed 757900
• Style 1 - left handed 757990
• Style 2 - right handed 758900
• Style 2 - left handed 758990
