Tubular Mesh Fencing Systems

• Available with two types of cladding and in two finishes

These are circular hollow section tubes clad with either chain link or welded mesh and are available in two finishes. Available in heights from 0.9m - 3.6m

• galvanised Steel

Hot dip galvanised steel as specified in BS EN 1461. This process protects the steel against all weather conditions and is maintenance free. The tube is 60.3mm overall diameter and the wall thickness varies depending on fence height.

• galvanised Steel and Coated

Hot dip galvanised, as specification BS EN 1461 and then a polyester powder coated finish is applied (to BS 6497). This process results in an excellent coating that will last for many years. The colours are green, black, white, blue or grey. Other colours are available on request.

• No sagging with extra strength from the top rail

Top rails are 6M long with a diameter of 41.5mm and are available in the same finish as posts. They run through the top of the post/extension cap. Top Rails may be cut to suit the length of the fence run and are supplied with a galvanised steel tube joiner.

Jacksons offer six systems for tubular fencing used both with welded mesh and chain link::

System One - This system is suitable for domestic chain link installations, dog runs and larger pet enclosures etc. It is produced from heavy and medium grade tubular posts. This system does not include a top rail. More on Tubular Fence System One

System Two - This system is suitable for industrial fencing with minimum security applications. This system is similar to System One but included posts vertically extended for three rows of barbed wire. More on Tubular Fence System Two

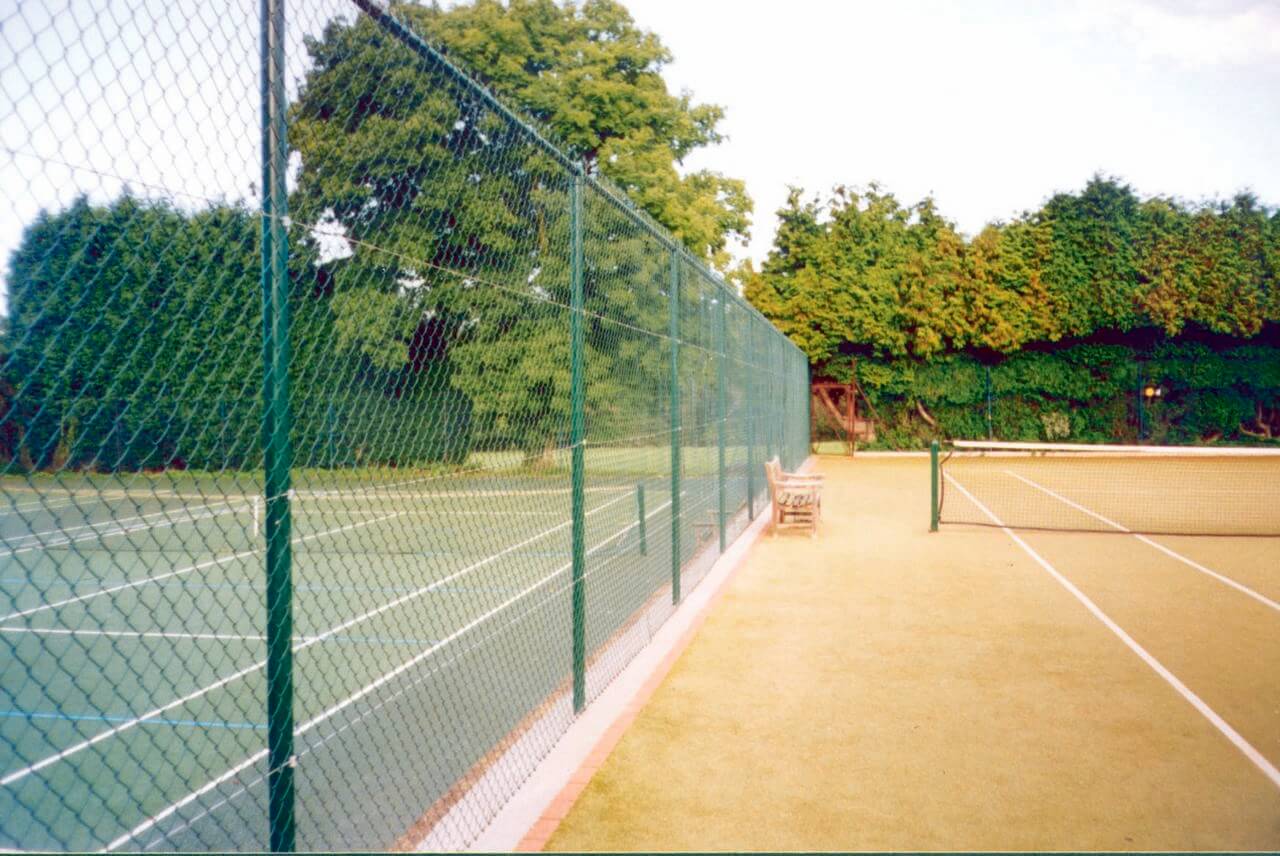

System Three - This system is suitable for domestic installations where the fence will be tested and the long term look of the fence is important. This system includes a top rail and heavy duty posts. More on Tubular Fence System Three

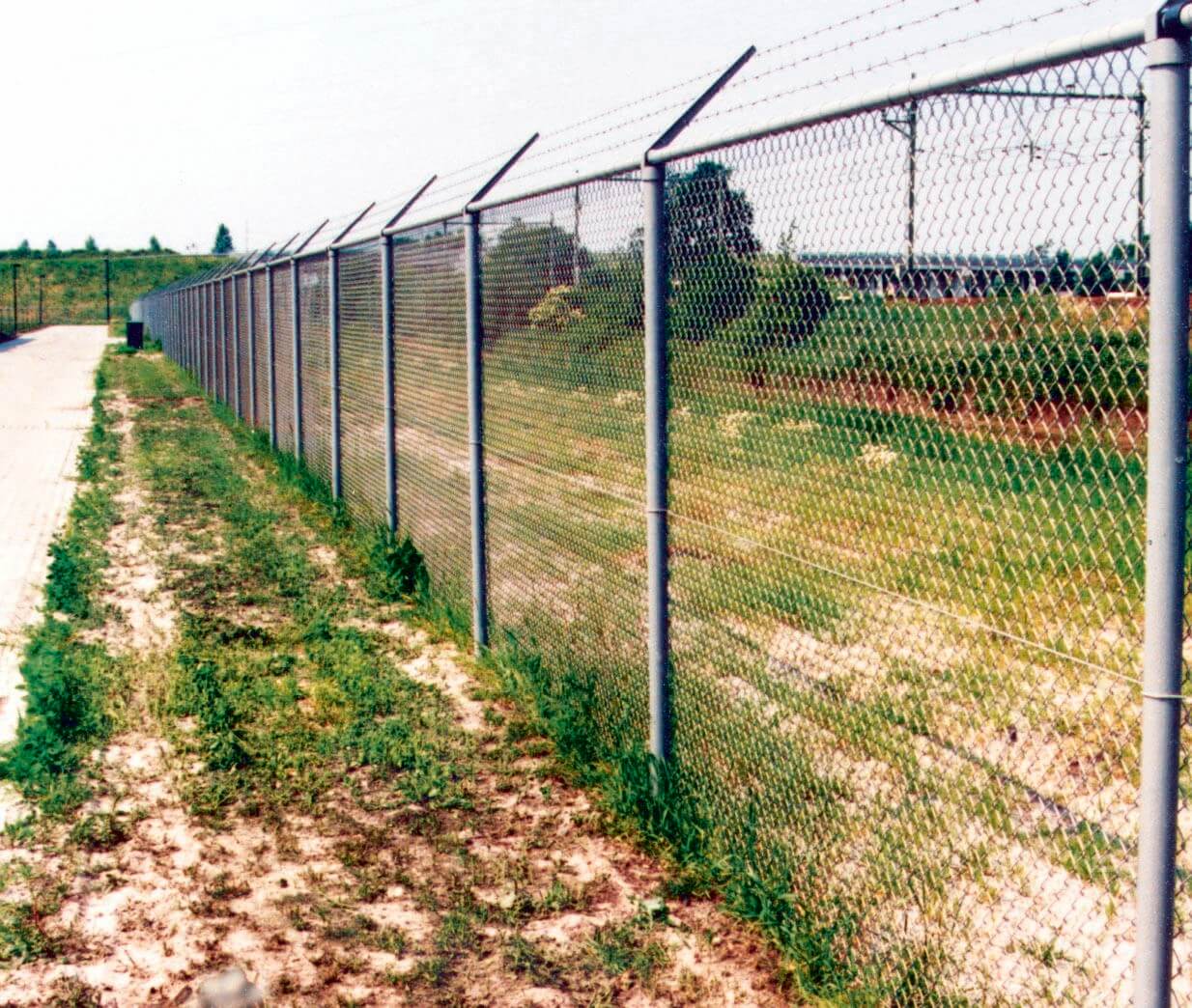

System Four - This system is appropriate for quality industrial installations where the fence will be tested and the long term look of the fence is important. Similar to System Three but also includes extended posts to hold high tensile barbed wire. More on Tubular Fence System Four

System Five - As with system Four this system is appropriate for quality industrial installations where the fence will be tested and the long term look of the fence is important. This system also includes cranked intermediate extensions for three rows of barbed wire. More on Tubular Fence System Five

System Six - This system is suitable for higher security installations, where the fence will be tested and the long term look of the fence is important. Similar to system Three and Four but in addition, six rows of barbed wire. Concertina razor wire can be fixed instead of barbed wire in the �Y� to make an almost impassable barrier. More on Tubular Fence System Six
