Components forSolitaryBay of 2.4m Wide Double Pergola System (not inc. Fixings)
£205.00 EXC VAT
246.00
£246.00 INC VAT

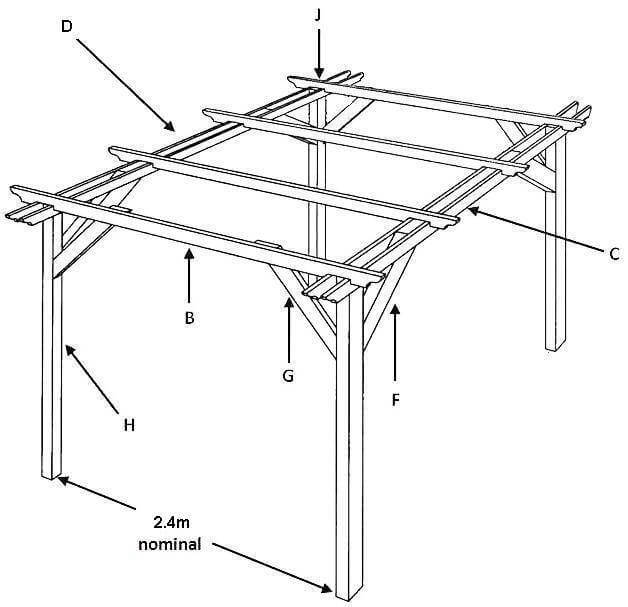

The 2.4m wide Pergola Double, Single Bay (Solitary bay) - PDSB2.4 contains the following components:
_x00D__x00D_
4 X Post 2.7m x 94 x 94mm (H) - Code: 641600
_x00D__x00D_
4 X Long cross member 3.11m (B) - Code: 650900
_x00D__x00D_
4 X Double Ended Side rail 2.42m (C) - Code: 650320
_x00D__x00D_
4 X InLine Brace 0.5m (F) - Code: 650400
_x00D__x00D_
4 X Corner Brace 590mm (G) - Code: 650500
_x00D__x00D_
2 X Spacer Block (D) - Code: 650700
_x00D__x00D_
4 X Post Top (J) - Code: 650750
_x00D__x00D_
We recommend using 75mm nails (800210 - 1kg 145 per Kg) for the majority of the construction but you should use 100mm nails (800310 - 1kg 79 per Kg) for the in line braces. Please follow the link for Pergola Instructions
