Horizontal Hit and Miss Fence Panels

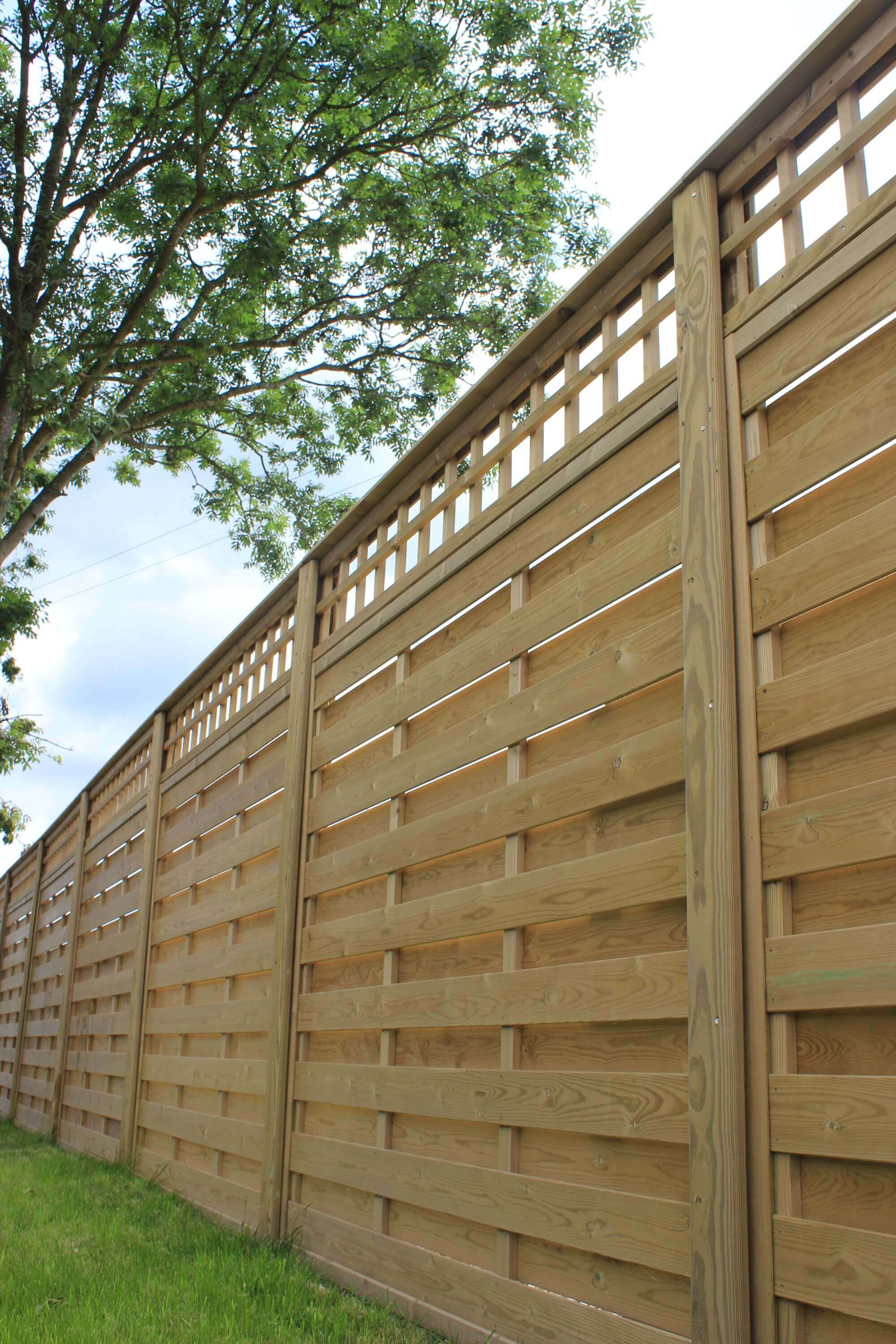

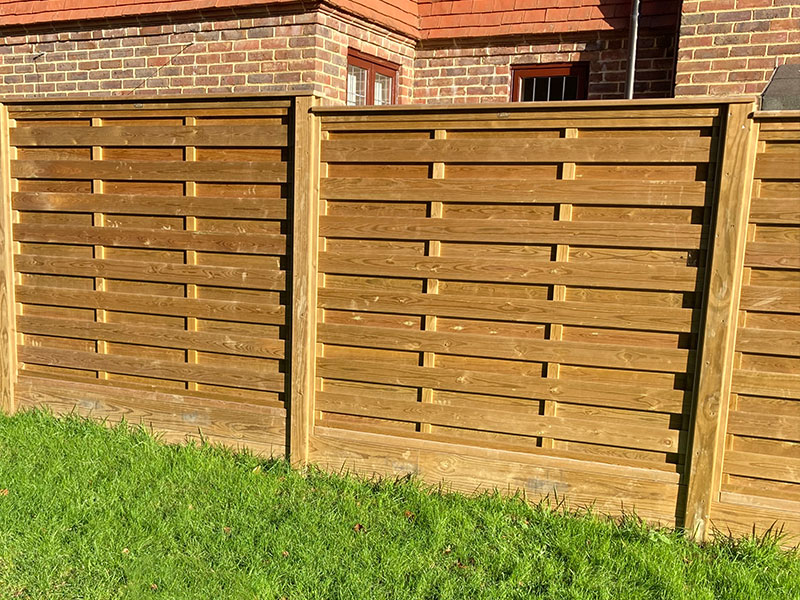

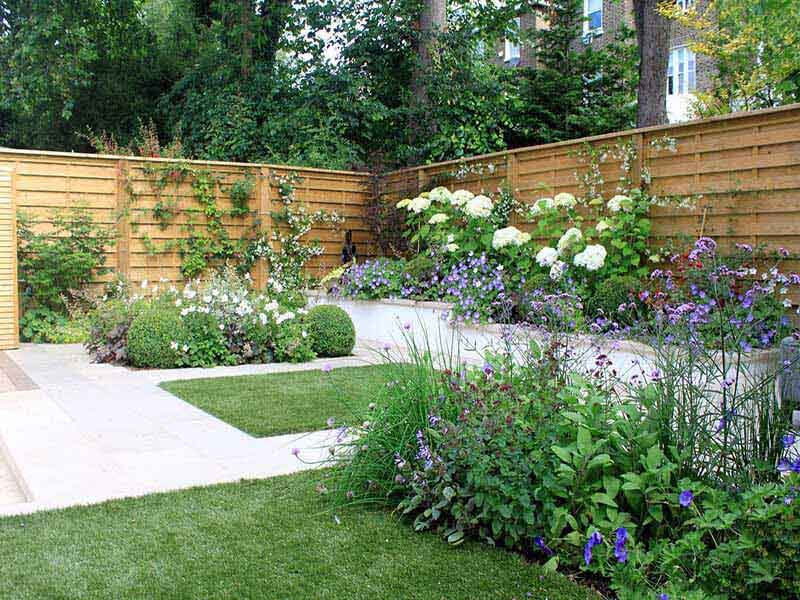

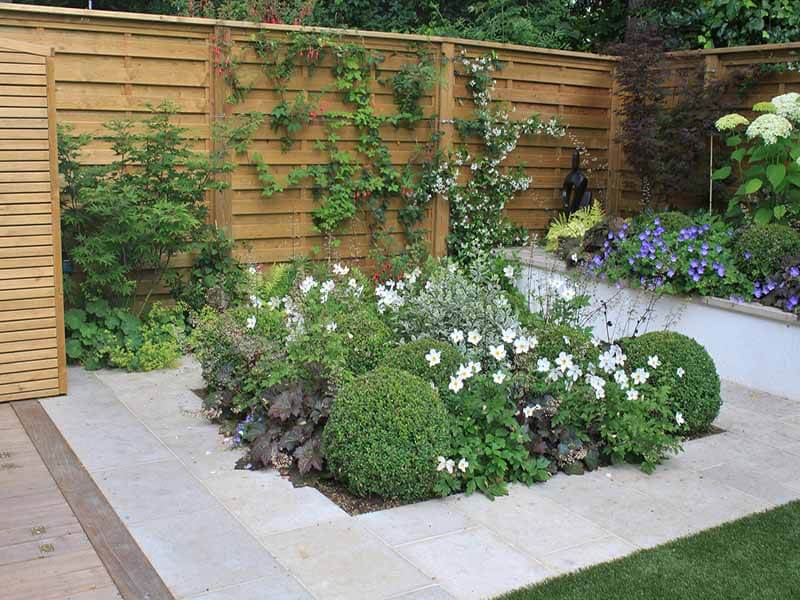

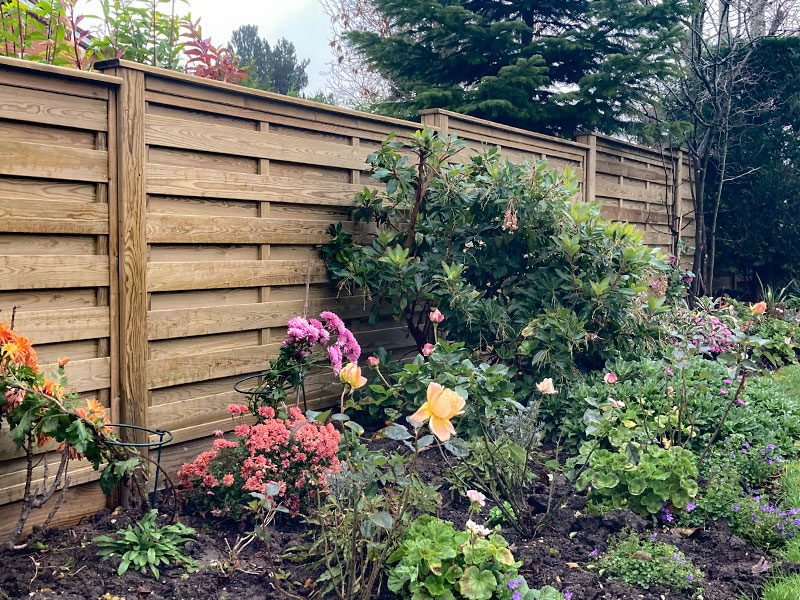

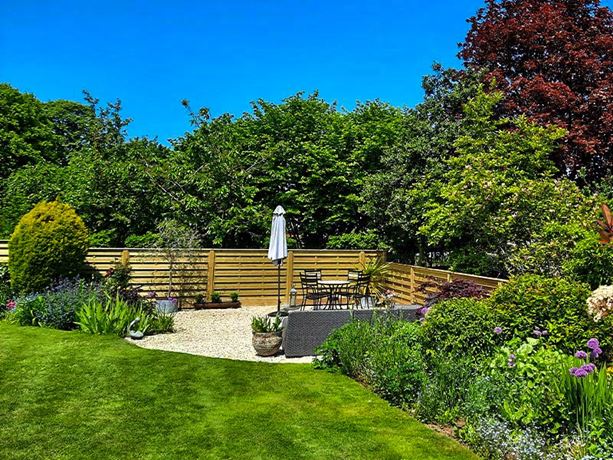

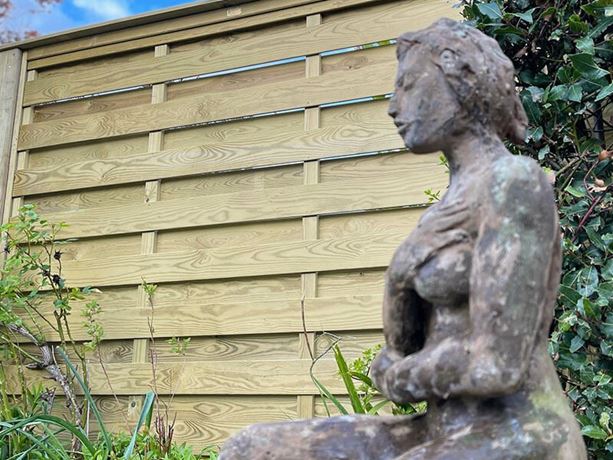

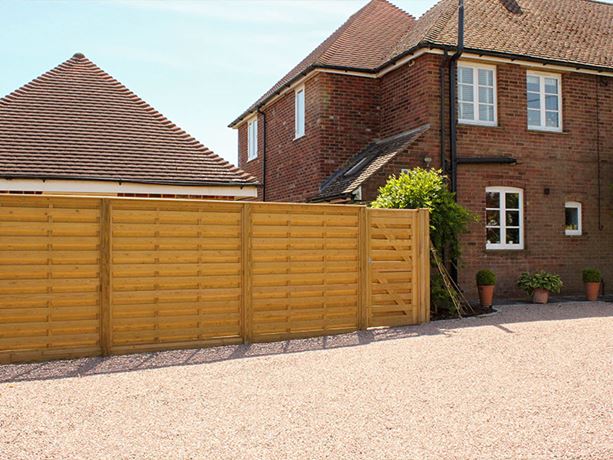

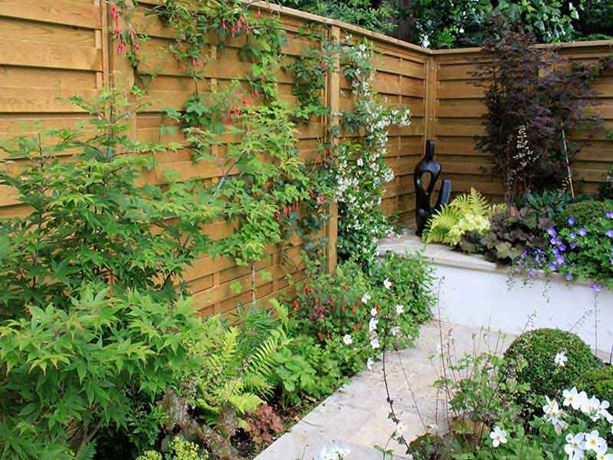

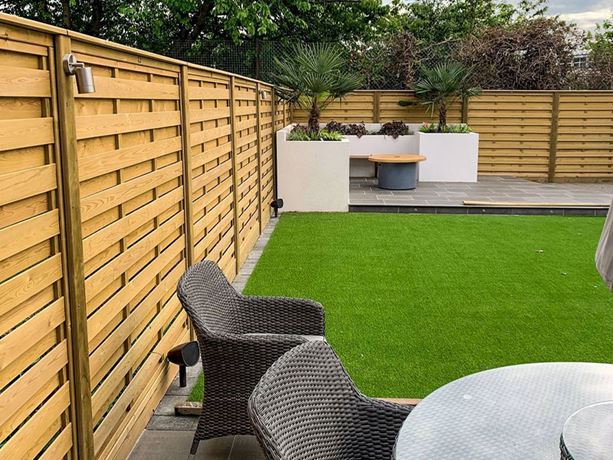

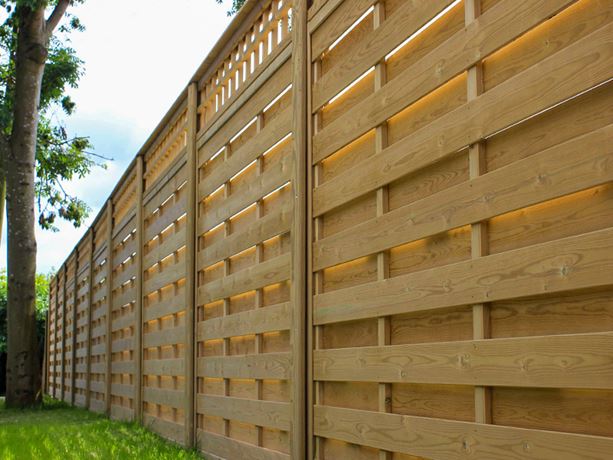

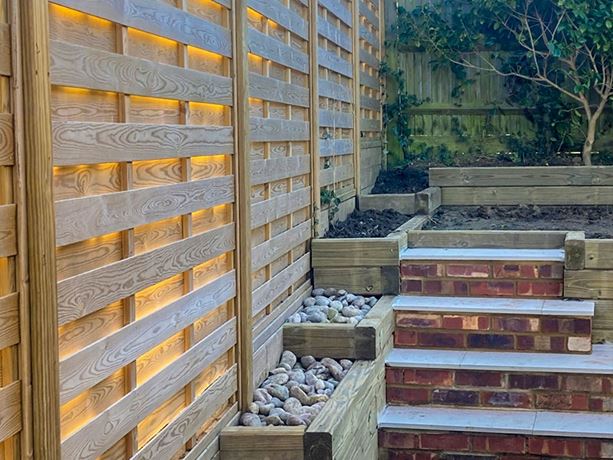

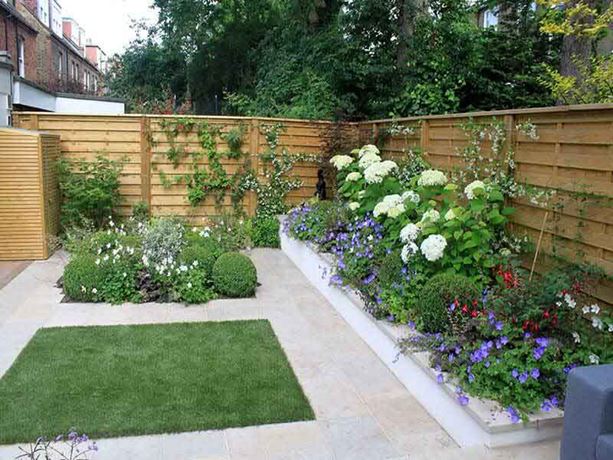

Our handcrafted Hit and Miss fencing panels are so called because the pales or boards are alternately fixed on the front and the back of the panel with an over-lap to create a stylish Hit and Miss pattern. They are part of our premium 'good both sides' range, as both sides are the same, so you and your neighbour have the best looking side of the fence.

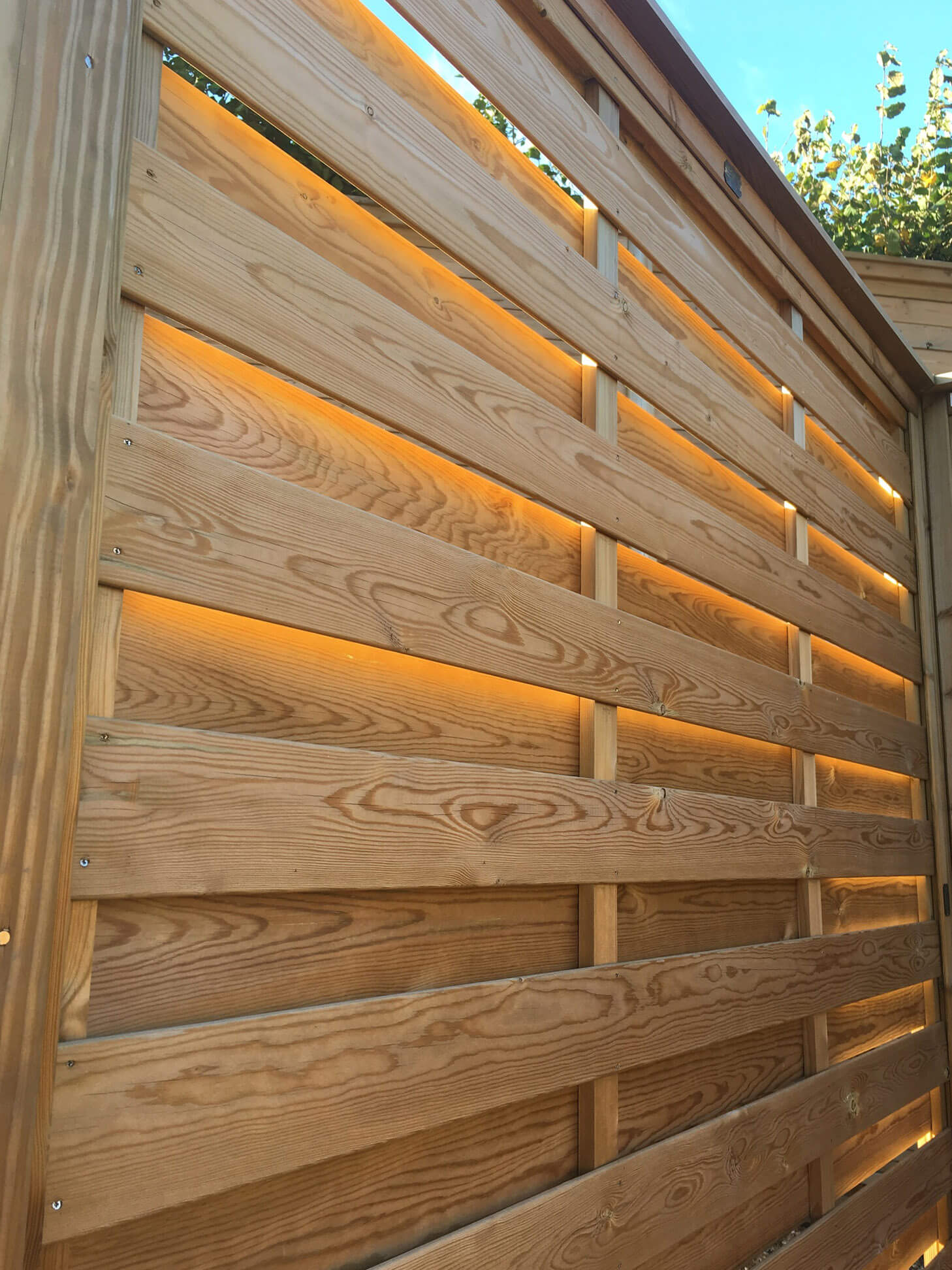

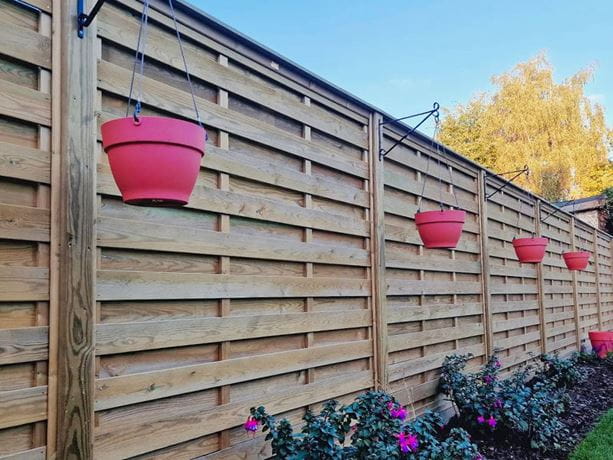

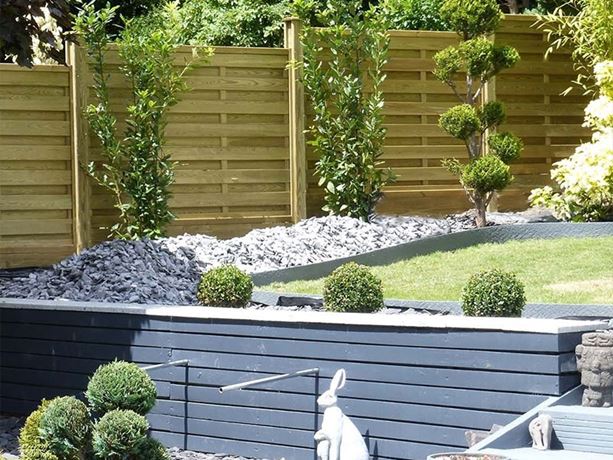

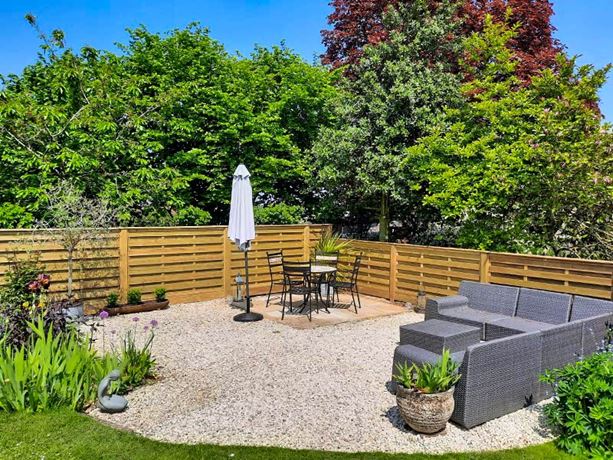

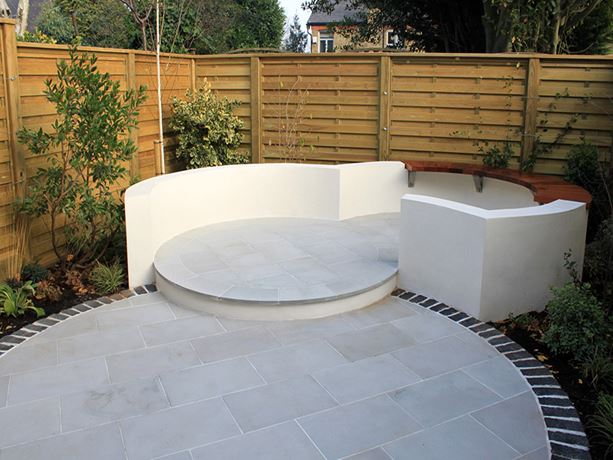

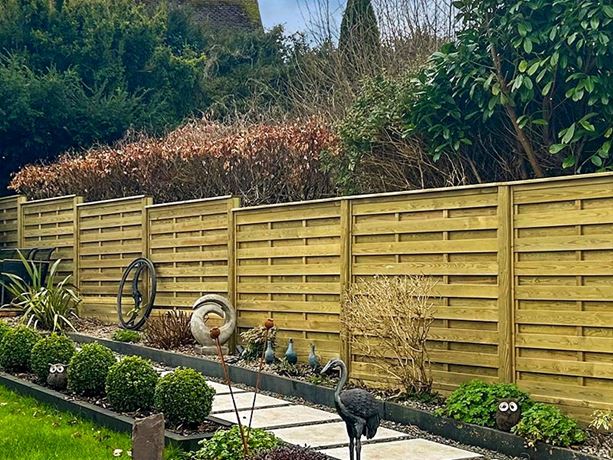

They are built using planed boards so the finish is smooth and gives a high quality feel.Horizontal Hit and Miss panel boards run horizontally rather than our alternative Vertical Hit & Miss. This variation obviously still allows the wind to pass through the panel, but gives a different appearance.

If you need a narrower panel to complete your fence, it is fine to cut a panel to the correct size using our cut down kit (364000K) on site. Please remember to treat any cut ends with Jakcure® End Grain Preservative.

These panels are sometimes also known as ventilation fence panels.

Please note: These Horizontal Hit & Miss fencing panels do not provide total privacy and it is just possible to see through the panels at an angle.

SPECIFICATION

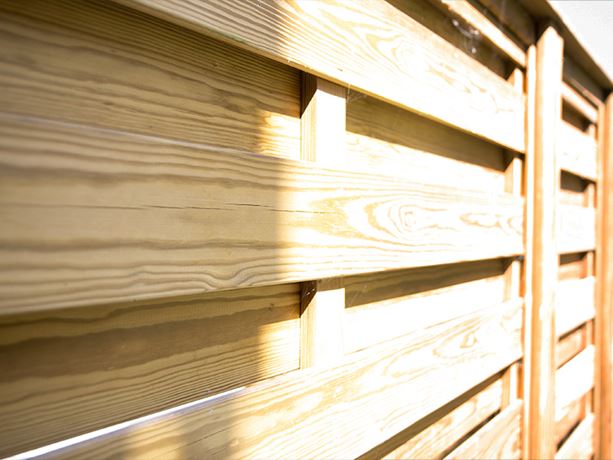

• Panels are 1.83m wide, framing 45 x 51mm, recessed to take boards.
• Horizontal boards 95 x 8mm with internal battens 50 x 12mm.
• All timber is planed all round, and supplied in natural Jakcure® treated timber and guaranteed for 25 years.
• All fixings are stainless steel.

Panel thickness is 51mm - Please Note that the dimensions of components may increase by 6% when first delivered as our treatment process can temporarily cause the product to swell.

HORIZONTAL HIT AND MISS PANEL HEIGHTS (1.83M WIDE)

0.91m / 1.22m / 1.52m / 1.83m

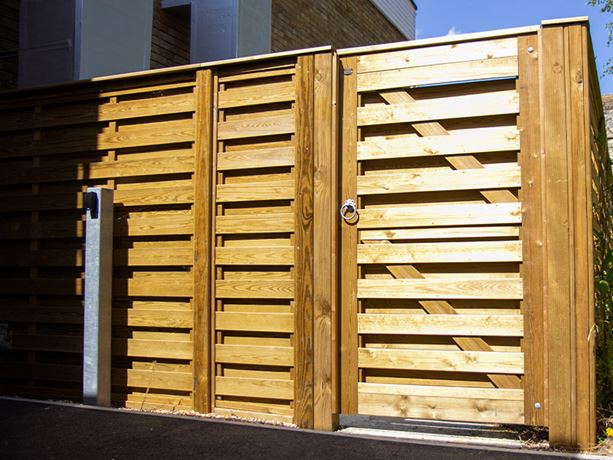

Matching Horizontal Hit & Miss Gates are also available to suit a 1.83m height of fence.

The spacing of the panel boards varies slightly on different height horizontal Hit and Miss - we recommend Hit & Miss Vertical fencing panels are used when different height panels are used in a run.

Detailed installation instructions for how to install panel fencing on slotted posts are available.

1.83m x 1.83m panels can be installed vertically. They are doubled badged so they can be fitted with the pales either vertically or horizontally.

Recommended Fixings

We recommend using 6 screws per panel or 12 per panel if using capping rails plus an additional 4 per gravel board. 60mm, stainless steel, self-drilling countersunk screws are available in packs of 100 or 200 to secure panels to posts. Panels should be screwed to the posts to secure the fence run.

If you require a non standard width panel e.g. to complete your fence run you would need 5 ½ panels, add a cut down kit to your basket in order to be able to cut the panel to the required size. Alternatively, please give us a call to speak to us about ordering a bespoke panel.

We recommend using our slotted Jakposts for intermediates, ends and corners, click on the button below to see the range

Slotted Posts

Gravel boards need to be used when panels are in contact with the ground as part of the 25 year Jakcure® guarantee. More details can be found on our Jakcure T&Cs page.

Gravel Boards

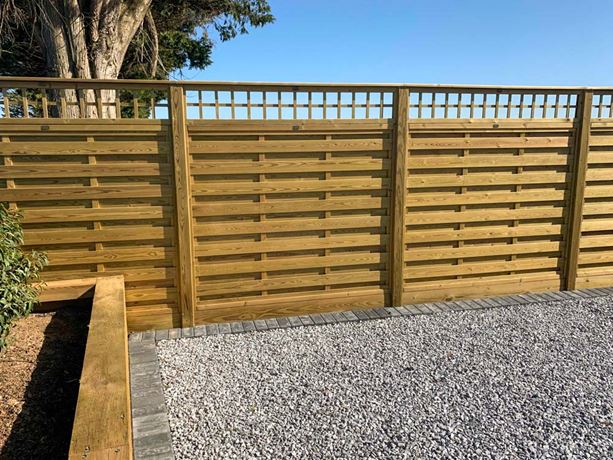

Capping Rails can be used on these panels. Use the button below to see our options

Capping Rails

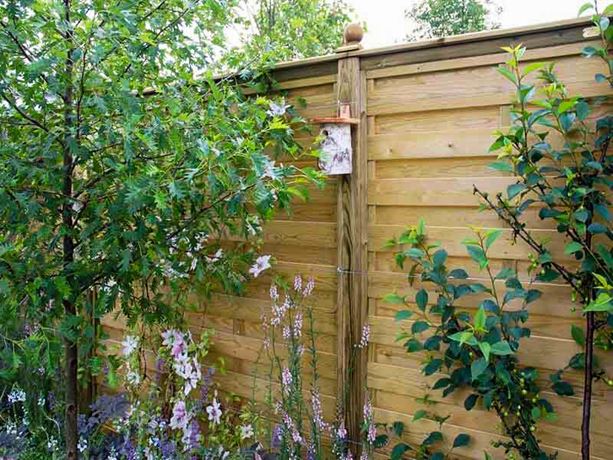

Post Caps add the finishing touch to any fence, view the full range by clicking the button below

Post Caps
