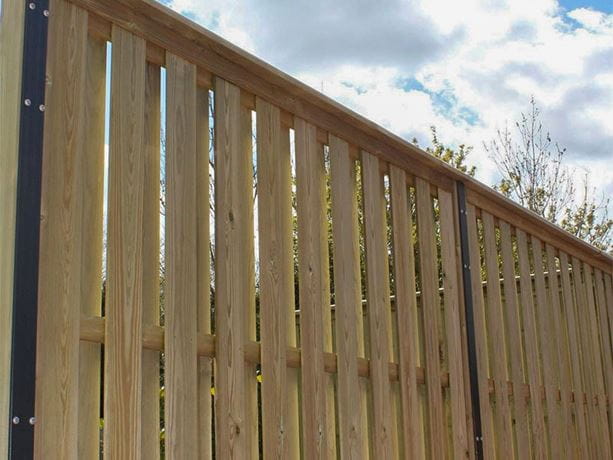

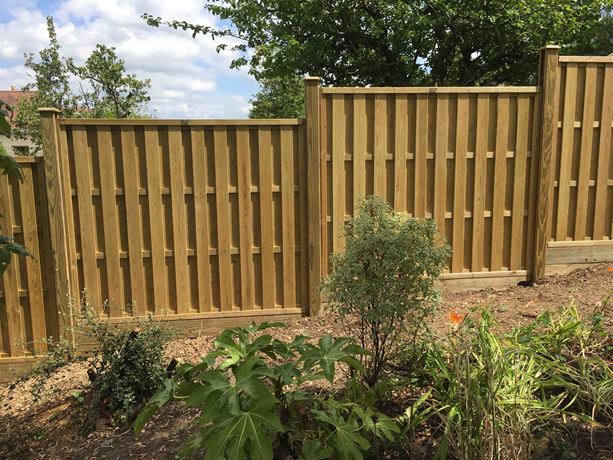

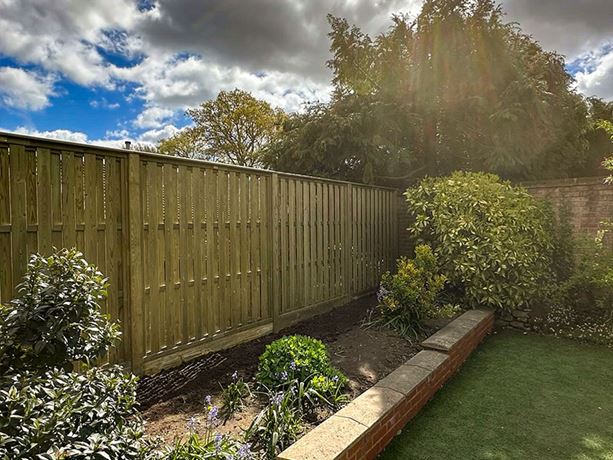

Vertical Hit and Miss Fence Panels

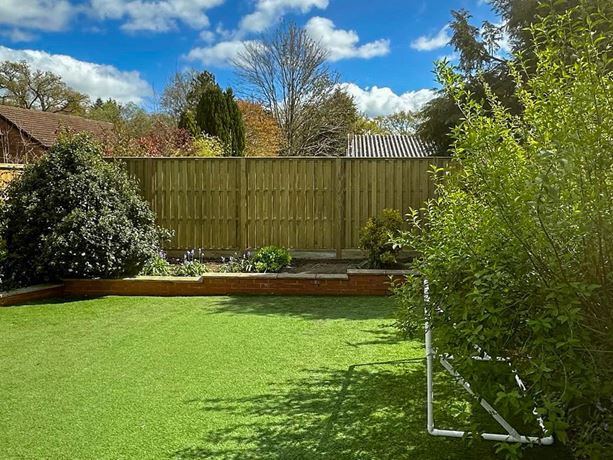

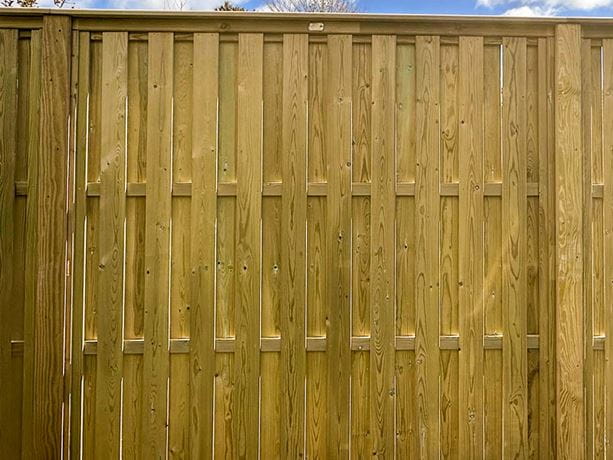

Hit and Miss fencing panels are so called because the pales or boards are alternately fixed on the front and the back of the panel with an over-lap to create a stylish Hit and Miss pattern.

They are part of our premium 'good both sides' range, as both sides are the same, so you and your neighbour have the best looking side of the fence. They are built using planed boards so the finish is smooth and gives a high quality feel. Another advantage of the Hit and Miss style is that the slatted panel design has an approx. 15% wind load reduction as the gaps between the pales allows air to pass through.

Vertical Hit and Miss panel boards run vertically rather than our alternative Horizontal Hit & Miss. This variation obviously still allows the wind to pass through the panel, but gives a different appearance.

If you need a narrower panel to complete your fence, it is fine to cut a panel to the correct size on site. Please remember to treat any cut ends with Jakcure Cut Treatment

These panels are also known as ventilation fence panels

Please note: These Vertical Hit & Miss fencing panels do not provide total privacy.

1.83m x 1.83m panels can be installed horizontally. They are doubled badged so they can be fitted with the pales either vertically or horizontally.

Specification

Panels are 1.83m wide, framing 45 x 51mm, recessed to take boards.
Vertical boards 95 x 8mm with horizontal internal battens 50 x 12mm.

Panel thickness is 51mm - Please Note that the dimensions of components may increase by 6% when first delivered as our treatment process can temporarily cause the product to swell.

All timber is planed all round, and supplied in natural Jakcure® treated timber and guaranteed for 25 years.

All fixings are stainless steel.

If you require a non standard width panel e.g. to complete your fence run you would need 5 ½ panels, add a cut down kit to your basket in order to be able to cut the panel to the required size. Alternatively, please give us a call to speak to us about ordering a bespoke panel.

We recommend using our slotted Jakposts for intermediates, ends and corners, click on the button below to see the range

Slotted Posts

Gravel boards need to be used when panels are in contact with the ground as part of the 25 year Jakcure® guarantee. More details can be found on our Jakcure T&Cs page.

Gravel Boards

Capping Rails can be used on these panels. Use the button below to see our options

Capping Rails

Post Caps add the finishing touch to any fence, view the full range by clicking the button below

Post Caps

View our other types of fencing using the buttons below

Horizontal Hit & Miss Fence Panels

Our Hit & Miss Range

All Fence Panels
