Flat Top Tongue And Groove Fence Panels

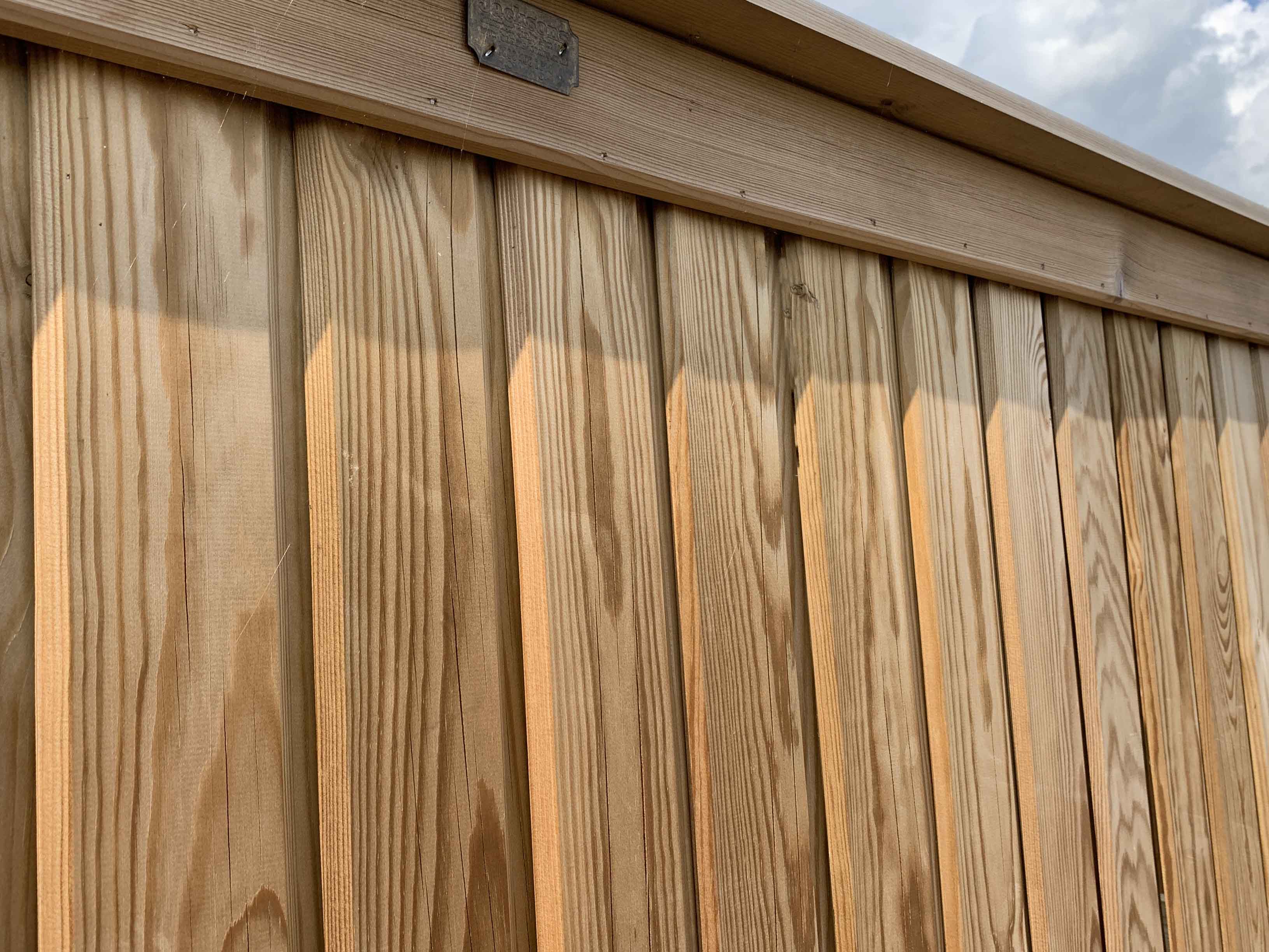

Flat Top Tongue and Groove Fence Panels

These luxury flat top fence panels are available in a variety of sizes. Constructed using Tongue and Groove effect style boards, these panels are manufactured to 1.83m wide and 51mm thick as standard. The design originates from the Victorian era, and allows two flat pieces of timber to be joined together for general building purposes; today, Tongue and Groove style is most often used to achieve a traditional wooden panelled effect within the confines of people’s homes to provide a premium finish.

Our Tongue and Groove effect panels are made using our trademark Jakcure® softwood timber, guaranteed for 25 years and featuring a mortice and tenon jointed frame for extra strength. Built using stainless steel fixings for longer life, the centre of the panel is given additional support with a single or double 70mm wide cant rail dependent upon the height of the fence, with a bevel to allow rain to drain away easily.

These premium solid panels are designed for privacy, and provide a contemporary style for a variety of different shapes and sizes of garden.

If you need a narrower panel to complete your fence, it is fine to cut a panel to the correct size on site. Please remember to treat any cut ends with Jakcure® Cut Treatment.

Our 1.83m Tongue and Groove effect fence panels can be supplied with the boards running horizontally instead of vertically. If you’re interested in this product please call our sales team on 0800 408 2234.

Please note: options are available for a level or convex top.

The infill of the panel is a Tongue and Groove board which matches the infill used within our Courtyard gates.

SPECIFICATION

•    All standard panels are 1.83m wide and 51mm thick - Please Note that the dimensions of components may increase by 6% when first delivered as our treatment process can temporarily cause the product to swell.
•    Top and bottom rails 70 x 51mm and side frame 45 x 51mm
•    Boards 95 x 16mm
•    Back rail 70mm x 20mm
•    Coverage width of a Tongue and Groove effect board is 80mm approx.
•    140mm gravel board to be included

FLAT TOP TONGUE AND GROOVE FENCE PANELS (1.83m WIDE)

*0.91m / 1.22m / 1.52m / 1.65m / 1.83m

*please note: these heights do not include 140mm gravel boards.

Recommended Fixings

We recommend using 6 screws per panel or 12 per panel if using capping rails plus an additional 4 per gravel board. 60mm, stainless steel, self-drilling countersunk screws are available in packs of 100 or 200 to secure panels to posts. Panels should be screwed to the posts to secure the fence run.

If you require a non standard width panel e.g. to complete your fence run you would need 5 ½ panels, add a cut down kit to your basket in order to be able to cut the panel to the required size. Alternatively, please give us a call to speak to us about ordering a bespoke panel.

Our Tongue & Groove panels match both our Courtyard gates and Brook garden gates. Click on the buttons below:

Courtyard Gates Brook Boarded Gates

Explore other Tongue and Groove Effect panels below

Tongue and Groove Family

In order to reduce the width of the panel you will need a cut down kit they can be found on the page below.

Components

Metal Railing topper panels are often added to Tongue and Groove effect panels, giving an extra touch of elegance. Explore our Railing Topper Range below.

Railing Topper Panels

Gravel boards need to be used when panels are in contact with the ground as part of the 25 year Jakcure® guarantee. More details can be found on our Jakcure T&C'spage.

Gravel Boards

If you are installing the product yourself, view our instructions below:

Installing Panel Fencing Instructions

Installing Timber Fence Post Instructions

Document Downloads

• Panel fence instructions
• How to reduce the width of Jacksons Fencing Panels
• Tonge and Groove Vertical Panel Spec Sheet
• Tongue and Groove 0.9m High
• Tongue and Groove 1.2m High
• Tongue and Groove 1.5m High
• Tongue and Groove 1.8m High
• Q40 - Tongue and Groove Vertical Panel - Flat Top
