1.8m Double Pergola

1.8m Double Pergola Bay

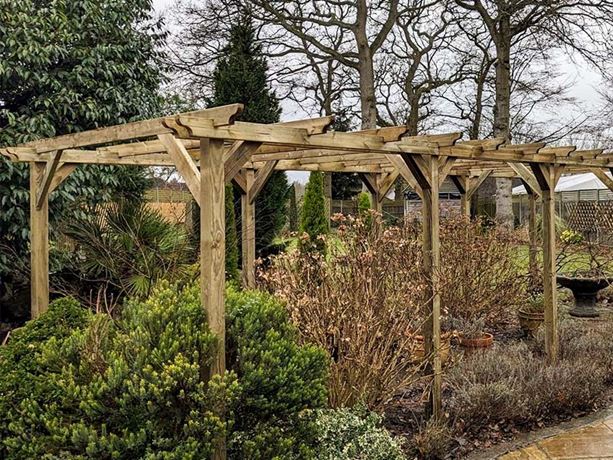

Double Pergolas can be used to make feature areas for sunbathing or relaxing giving summer shade, made all the more inviting when combined with climbing plants.

WAS

EXC VAT

INC VAT

NOW

EXC VAT

INC VAT

Number
Product
Add to Basket

Delivery

We aim to deliver most orders within 30 days
Most orders will be delivered within 7-10 days. Dependent on stock availability this may be longer on some items. Please call us for latest lead time if your order is time sensitive. Delivery charges are calculated at checkout based on your order value and postcode.
See the Jacksons Difference

Read Our Latest Pergola Reviews




Making features of paths, walkways and even flights of steps in the garden is another favourite use for a double pergola. An added bonus is that if scented climbing plants are twined through the structure it will make your stroll even more pleasant.

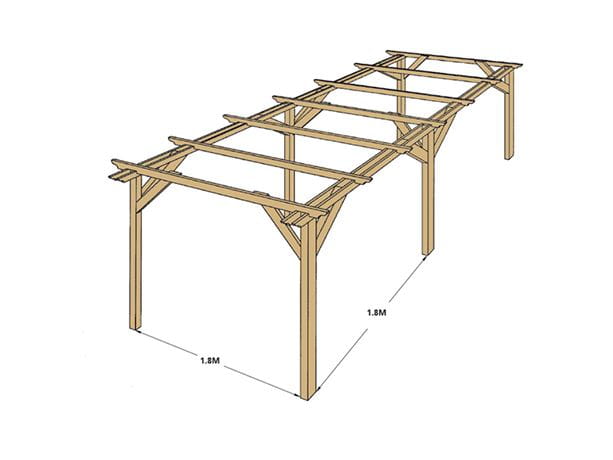

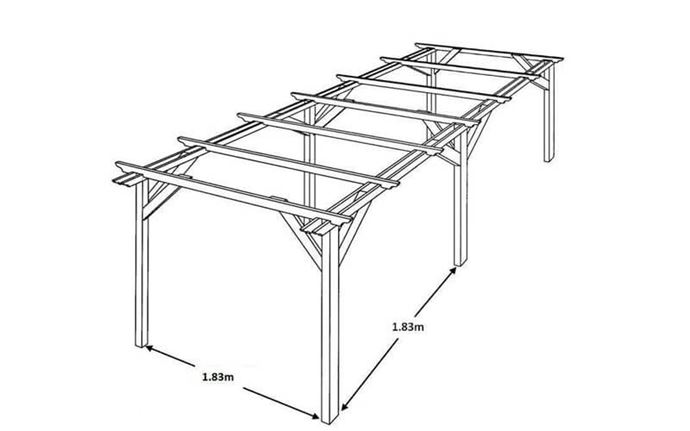

Please note: The standard length of all bays is 1.83m as measured between the posts, this allows for all of our standard wooden fencing panels to be used in conjunction with our pergola systems. You can therefore increase
the length of the pergola in multiples of 1.83m. The internal width between posts for installation purposes is 1830mm. The cross members overhang the structure by 200mm. We recommend that the pergola is installed so that the underside of the side rails are 2.0m above ground.

When using fixings/nails to join two timber parts we recommend drilling a hole in the first part to insert the nail through, this enables the nail to be driven easily into the other part of the structure.

Note: We recommend using 75mm nails (800210 - 1kg 145 per Kg) for the majority of the construction but you should use 100mm nails (800310 - 1kg 79 per Kg) for the in line braces.

The table below explains the codes needed to purchase the double style of pergola and which bays to order for configurations from 1 to 5 bay examples.

  Code

  Double Pergola

1 Bay only PDSB1.8 Single Bay

2 Bays PDFB1.8 First Bay
  PDEB1.8 End Bay

3 Bays PDFB1.8 First Bay
  PDAB1.8 x1 Additional Bay
  PDEB1.8 End Bay

4 Bays PDFB1.8 First Bay
  PDAB1.8 x2 Additional Bays
  PDEB1.8 End Bay

5 Bays PDFB1.8 First Bay
  PDAB1.8 x3 Additional Bays
  PDEB1.8 End Bay




It is important to download the Pergola Installation instructions for full details please click on the link below:

Download Installation Instructions
