A garden gate must resist movement, retain its shape, and continue to function smoothly over time. The most effective way to ensure this is through the correct design and bracing. Gate bracing is not decorative. It is a structural requirement that supports the weight of the gate, prevents movement, and maintains proper alignment.
Why we brace wooden garden gates
The primary purpose of a brace is to prevent the gate from sagging. This is the gradual dropping of the gate on the side furthest from the hinges. When a gate sags, it becomes difficult to close because it may strike the slam post, drag on the ground, or twist out of shape. Correct bracing transfers the load to the hinge side so that gravity cannot distort the frame.
Timber naturally expands, contracts, and settles over time. Without a correctly positioned brace to counter these forces, the frame loses its original square form. This is why a well placed brace is essential for long term stability, smooth operation, and overall structural reliability.
How garden gate compression bracing works
A compression cross brace carries the weight from the top rail and transfers it by pushing down toward the bottom hinge. The brace sits beneath the load and supports it, allowing the weight to travel diagonally to the strongest anchoring point, which is the bottom hinge. If the brace is fitted the opposite way, the timber is placed under tension rather than compression, and timber does not resist tension effectively. This causes the gate to sag because the structural forces are not directed into the hinge side.
A gate that is correctly compression braced remains square, opens smoothly, and maintains long term reliability.
Which way the brace should run
A correctly braced gate has the brace running from the bottom hinge side up to the opposite top corner. This creates a clear structural path for the weight to travel and ensures that the load is carried back toward the hinge. If the brace slopes in the wrong direction, it provides no meaningful support and sagging becomes unavoidable.
The simplest way to understand the correct position is to imagine lifting the free end of the gate. The brace must sit beneath that lifting force rather than above it. When the brace supports the underside of the load, the gate remains stable, aligned, and resistant to long term movement.

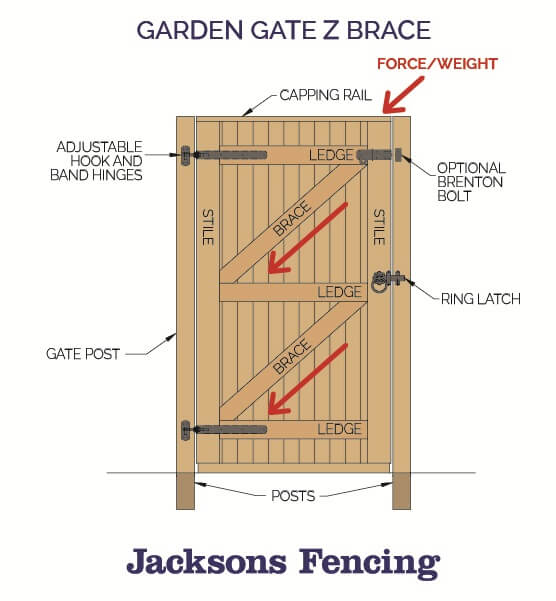

Garden gate Z bracing
Z bracing is a widely used method that provides stability and strength to timber gates. It uses a combination of horizontal rails and a central diagonal brace that creates the shape of the letter Z. The correct Z pattern has the diagonal running from the bottom of the hinge side to the top of the latch side. This orientation places the brace in compression and moves the load toward the hinge side, which prevents the gate from sagging at the unsupported corner.
Most Jacksons garden gates use a Z style brace because it provides a reliable structural layout that supports the frame, maintains long term performance, and protects the gate from distortion over time.
The Z configuration distributes weight across the entire frame, improves stability, and reduces the risk of twisting. It also enhances the appearance of the gate and provides a traditional finish. For wider gates, the Z shape can be adapted to an A frame to maintain an effective brace angle of more than forty five degrees.
A Z configuration also allows the pales to be fixed at additional points in the centre of the gate, which increases rigidity and reduces movement in the face boards.
Correct Z bracing always follows the principle that the point of the Z must be on the side opposite the hinge. This ensures that the diagonal brace performs the correct structural work by transferring weight to the hinge side.

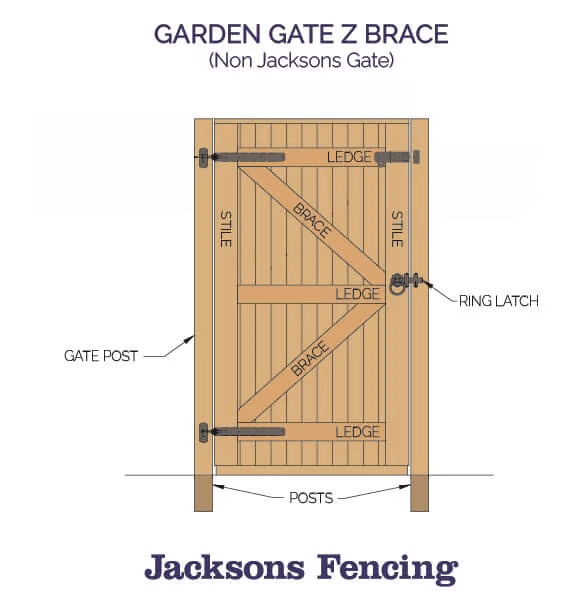

Universal garden gate bracing
Universal bracing is an alternative approach that some manufacturers prefer because it allows a gate to be hung on either the left or the right without altering the frame. This simplifies production and reduces the need for separate frame patterns. In a universal layout, the lower brace still runs from the bottom hinge side toward the opposite centre ledge. However, instead of completing a true Z by positioning the upper brace from the hinge stile to the top opposite corner, the upper brace is reversed and does not follow the correct structural line.
This arrangement leaves the top outer corner of the gate less effectively supported because the upper diagonal does not reach the area most vulnerable to sag. As a result, universal bracing is structurally weaker than a true Z configuration. The unsupported top corner is more likely to move or drop over time because the load is not transferred back toward the hinge side.
The main appeal of universal bracing is simplicity in manufacturing. Because the gate can be rotated, companies can produce one pattern that suits both left hand and right hand hanging. This reduces production complexity, reduces stock variety, and reduces cost. However, the reduced structural performance means this design is unlikely to last as long as a properly Z braced gate. Manufacturers that use universal bracing are usually competing on price and often provide short guarantees, which reflects the lower level of structural support offered by this layout.
Jacksons Fencing do not manufacture garden gates with a universal brace because our priority is long term performance. We build our gates with the correct Z bracing, and we also include and fit the hinges and ring latch so that the gate is assembled in a layout we know will last. This ensures that the best fittings are used, that they are positioned correctly, and that the gate performs exactly as intended. It also saves considerable time on site because the hinges and ring latch arrive already fitted in the correct positions and ready for straightforward installation.
Fittings are just as important
Bracing alone cannot protect a garden gate if the fittings and fixings are poor quality or incorrectly installed. The hardware is an essential structural component that works with the brace to keep the gate secure and correctly aligned. The most important part of this fitment is adjustable hinges. Adjustable hinges allow the gate to be realigned easily as the timber naturally moves, expands, or contracts. If the gate settles slightly over time, it can be lifted and reset quickly without removing the entire gate or altering the hinge positions.
Without adjustable hinges, even a well braced gate may need to be removed completely if the frame drops or shifts. This creates unnecessary labour and cost that can be avoided by selecting the correct fittings from the start. High quality fixings also help prevent loosening, twisting, and long term wear, and they keep the gate operating smoothly throughout its life.
All Jacksons wooden garden gates are supplied with adjustable hinges and a ring latch already fitted. This ensures that the gate arrives ready for reliable long term performance, provides simple and precise adjustment whenever required, and saves considerable time on site because the hinges and latch do not need to be fitted separately.
We also recommend a ten millimetre gap between the gate and the posts to allow for natural movement and smooth operation over time.
Treatment and guarantees are key
Even the best bracing and hardware will not protect a gate if the timber itself is poorly treated or vulnerable to decay. High quality treatment is essential to protect the timber from moisture, rot, and long term structural breakdown. When choosing a gate, it is worth considering manufacturers that offer long guarantees because these indicate the durability of the materials and the confidence the manufacturer has in their own processes.
Gates that are fully treated and supplied with long guarantees, such as those protected by the Jacksons Jakcure guarantee, offer far greater long term value. Although these gates may have a higher initial cost, they last significantly longer. Over the life of the gate, this often becomes far cheaper than repeatedly refitting hinges, replacing failed hardware, or replacing the entire gate several times. A guarantee of twenty five years, which is the length of our Jakcure guarantee, provides reassurance that the materials will remain stable, protected, and structurally sound for decades.
Choosing a properly treated gate with a long guarantee removes the cost and inconvenience of premature replacement and ensures that the bracing, fittings, and overall structure continue to perform exactly as intended.
Alternative designs

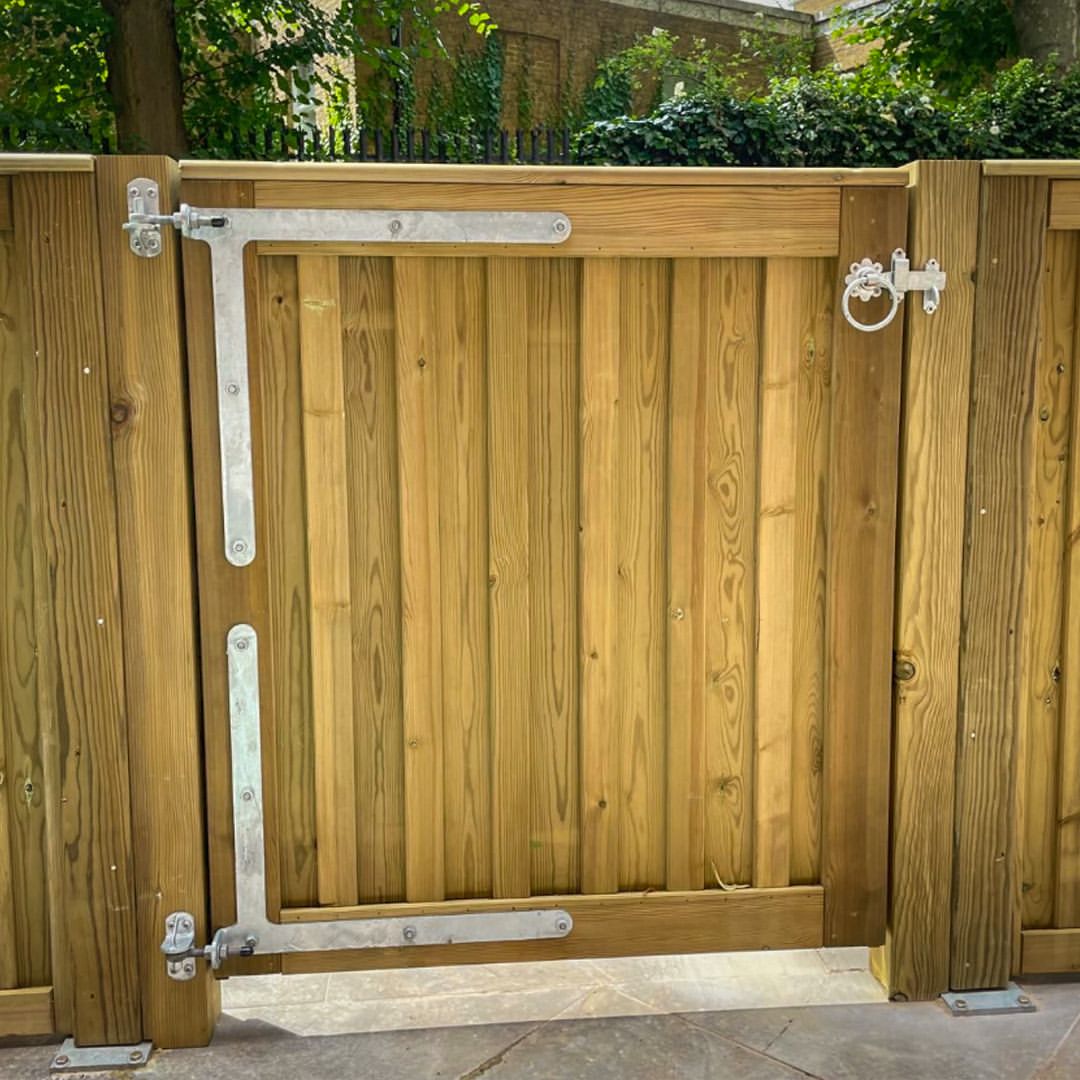

That being said, we have designed our gates using science and experience, but this does not mean that other designs are incorrect. A good example is our Chilham garden gates, a design that has been proven through thousands of successful installations. The garden gate is built with substantial sections of timber and uses complex joints that connect the frame and cladding in a strong and reliable way. In addition, it features unique adjustable L hinges that support both the gate and the frame.
This approach allows the gate to be made without braces on the rear and ensures that it matches the Chilham panels, which have no rails on the back and present an attractive appearance on both sides. The result is a gate that delivers strength, longevity, and a clean, consistent finish, while still meeting the design intent of a double sided attractive product.
The result of correct bracing or design
A gate that is properly braced or well designed will last longer and perform better. It will remain square, open smoothly, and require far less maintenance. Poor or incorrect bracing places the gate under tension and leads directly to sag and failure.
By bracing correctly using proven compression principles, choosing the best configuration for the frame, and ensuring high quality adjustable fittings that are fitted correctly, and selecting a well treated gate with a long guarantee, you significantly increase the lifespan and structural integrity of the gate.
