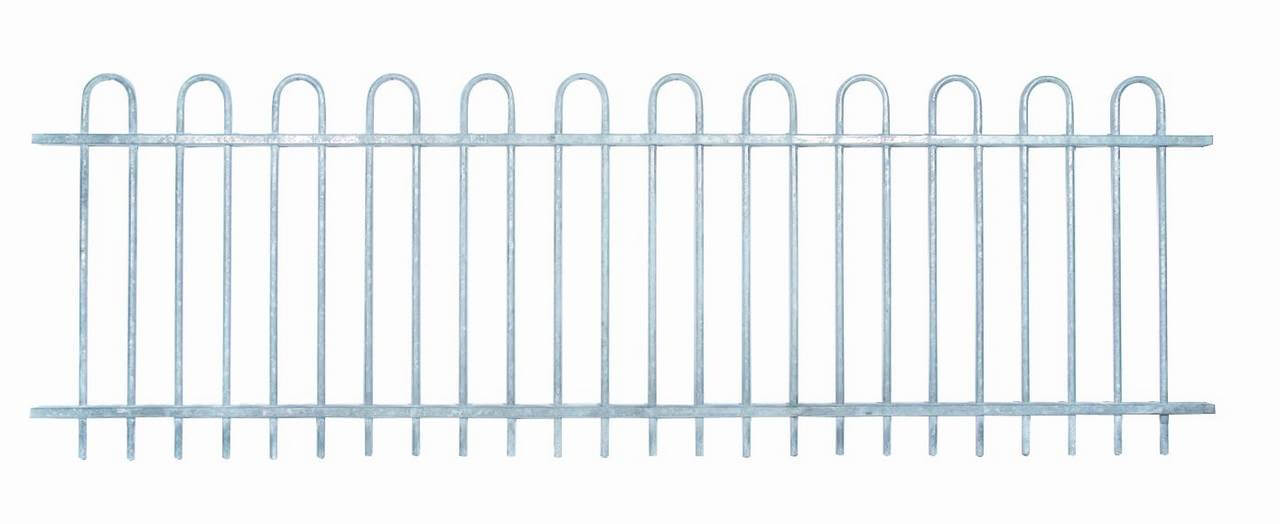

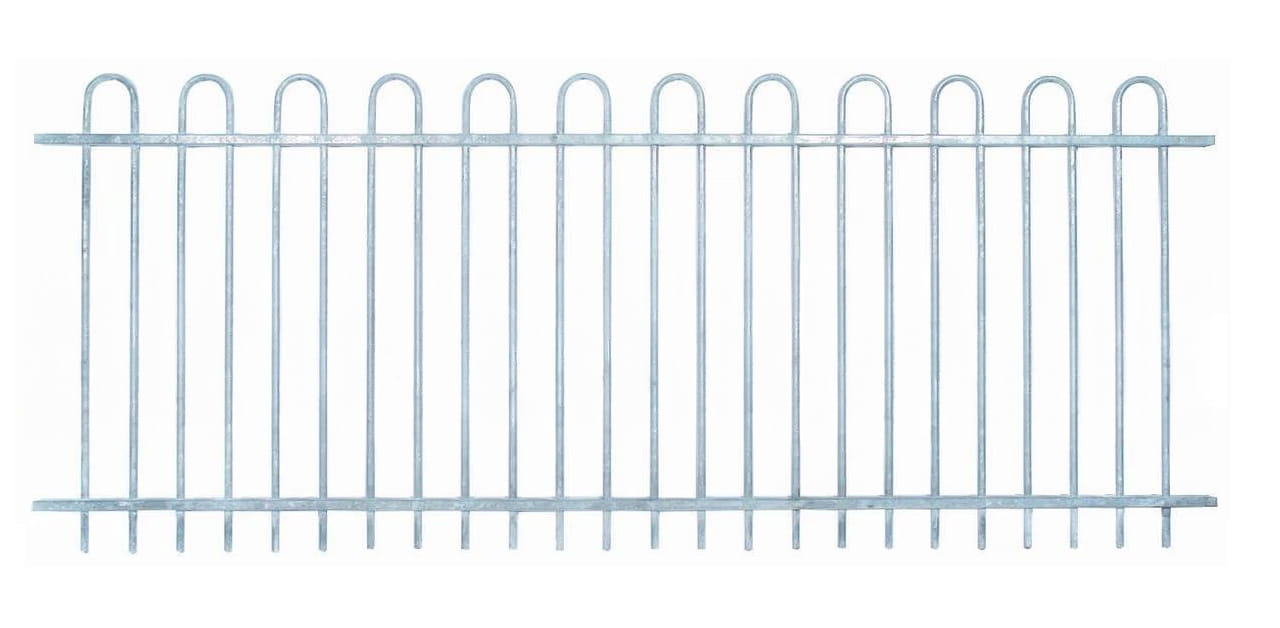

Tubular Bow Top Railings
Tubular Bow Top Railings
- Modern tubular construction for increased strength
- Vandal proof panel-to-post connectors
- Traditional hoop top railing design; ideal for front gardens, schools, and commercial properties
- Galvanised finish as standard to BS EN 1461 for a long life
- Polyester powder colour coating available at extra cost
- Available in heights between 1-2m
- 25 year guarantee
Specifying or installing for a commercial application?
Our commercial website is host to technical and specification documents and all the advice you need to help you choose the best security fencing for your site.
Commercial WebsiteFor more details or to specify this product visit our commercial site:
Bow Top fencing is perfect for many applications
Our Bow Top fencing (also known has hairpin railings) is perfect for all kinds of permanent protection - for gardens, parks, schools, commercial properties, and public spaces. This is our modern take on traditional Bow Top fencing; a secure and vandal-resistant fence with a timeless appearance, with pale-through-rail construction and no visible joins or fixings. With a hot dip galvanised finish and optional polyester powder coating, it has superior protection against rust and looks good for years to come. Supplied with our 25 year guarantee against rust, corrosion, and manufacturing defects.
Matching Gates
Single and double leaf matching gates are available to suit fence height.
Specifications

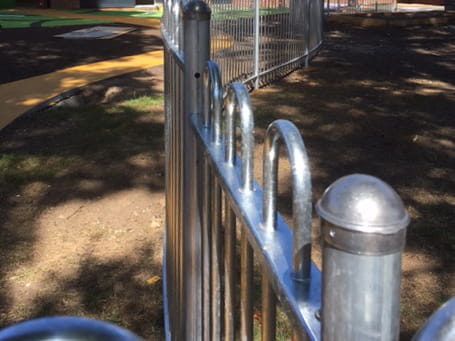

- Posts: 60.3mm outside diameter, supplied with domed post caps with 500mm to be set in concrete. (Posts are also available with base plates for fixing to concrete - please call for options)
- Post centres: 3m
- Rails: 50 x 25mm Rectangular Hollow Section
- Tubular infill: 19mm diameter
- Tube spacing: 119mm centres giving 100mm gap
- 60mm clear of ground
If you are installing the product yourself, view our instructions below
Explore our Tubular Bow Top Gates by clicking on the button below
Document Downloads
- Bow Top Fencing with Feature Posts - J804009sht1
- Bowtop Fencing - J804009sht2
- Bowtop Single and Double Gates - Self-Closing Single Gate - Combination Double Gates - J804016sht1
- Bowtop Single and Double Gates - Self-Closing Single Gate - Combination Double Gates - J804016sht2
- Bow Top Fencing on Top of Wall with Cranked posts
- Bow Top Pedestrian and Double leaf gates standard
- Bow Top Self Closing Gates
- Bowtop Domestic Self Closing Gate 1000mm and 1200mm - J802052sht1
- Bowtop Feature Fencing Sales Drawing - J801018
- Bowtop Fence - Crowd Loaded - 1200m - J802058
- Bow top fencing 1m with baseplated posts
- Bow top fencing 1.2m high with baseplated posts
- Bow top fencing 1.5m with baseplated posts
- Bowtop Installation Details - J801026
- Bowtop Wall Connector Installation - J801020
- Bow Top Fencing
- Bow Top Gates
- 044 Q40 Bow Top Word
- 010 Q40 Bow Top Gates Word
- Bow Top Fence Above Wall - J801021sht1
