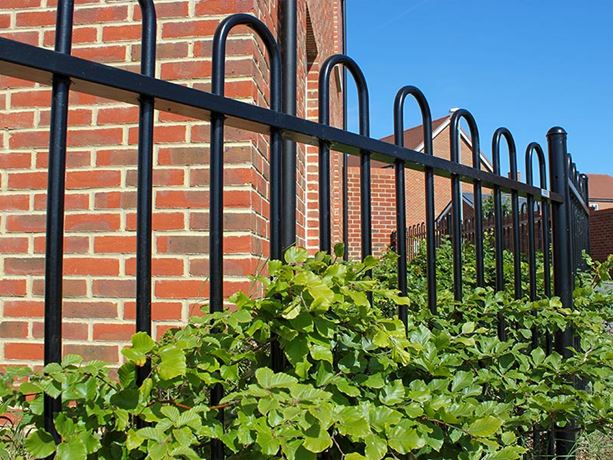

Tubular Bow Top Railings

How many corners does the run have?
Are there any extra posts required?
Add Ballast and Cement? 8 bag(s) of ballast (£), 9 bag(s) of cement (£)

Accessories count:

Connectors count:

Panels =
Inter-post, end post =
Corner posts =
Fixing tool =
Height =
Finish = Galvanised
Connectors and post caps included
Posts dug-in (please contact us for baseplate)

Specifying or installing for a commercial application?

Visit our commercial website

Our commercial website is host to technical and specification documents and all the advice you need to help you choose the best security fencing for your site.

Commercial Website

For more details or to specify this product visit our commercial site:

Bow Top Fencing

  • Modern tubular construction for increased strength
  • Vandal proof panel-to-post connectors

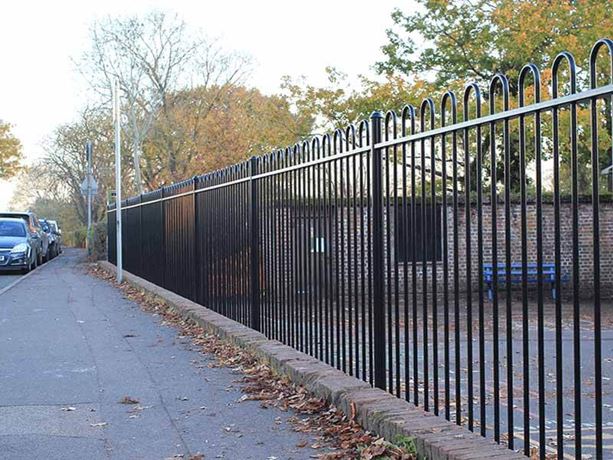

  • Traditional hoop top railing design; ideal for front gardens, schools, and commercial properties
  • Galvanised finish as standard to BS EN 1461 for a long life
  • Polyester powder colour coating available at extra cost
  • Available in heights between 1-2m
  • 25 year guarantee

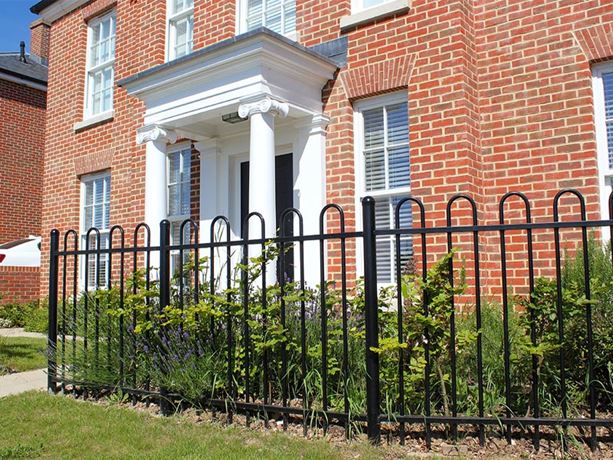

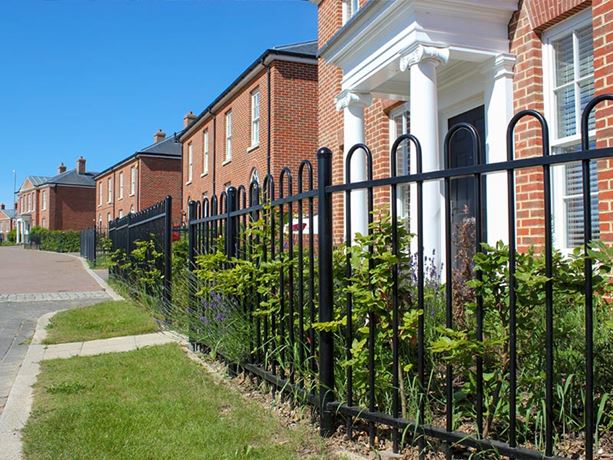

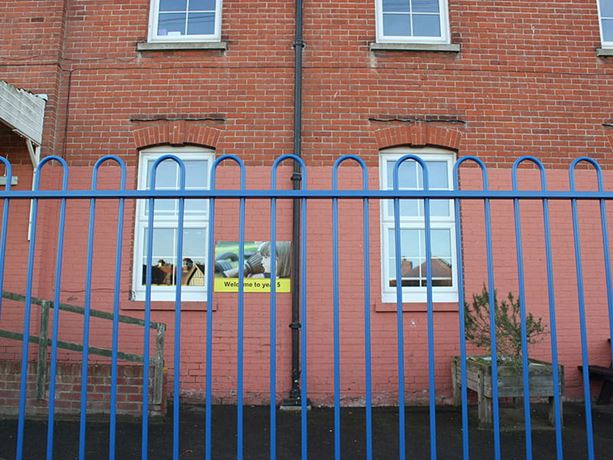

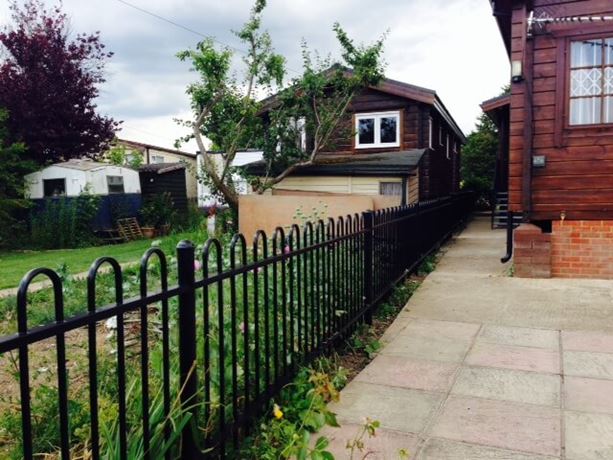

Bow Top fencing is perfect for many applications

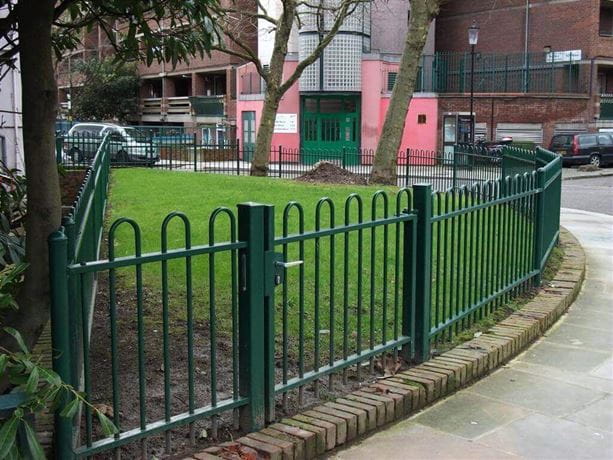

Our Bow Top fencing (also known has hairpin railings) is perfect for all kinds of permanent protection - for gardens, parks, schools, commercial properties, and public spaces. This is our modern take on traditional Bow Top fencing; a secure and vandal-resistant fence with a timeless appearance, with pale-through-rail construction and no visible joins or fixings. With a hot dip galvanised finish and optional polyester powder coating, it has superior protection against rust and looks good for years to come. Supplied with our 25 year guarantee against rust, corrosion, and manufacturing defects.

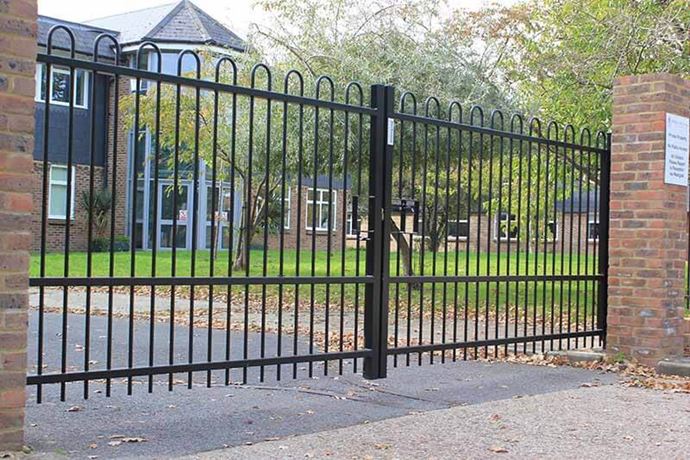

Matching Gates

Single and double leaf matching gates are available to suit fence height.

Bow Top Gates

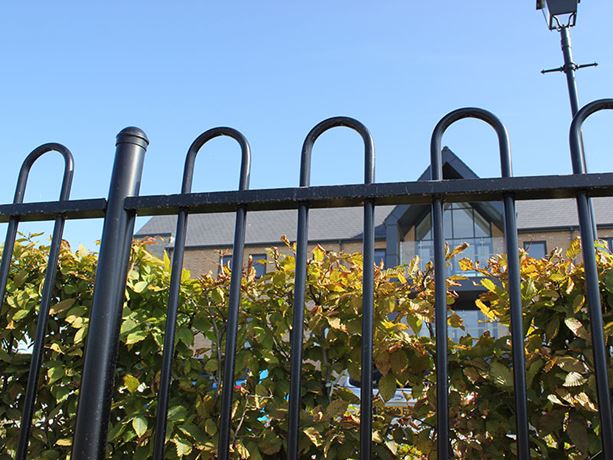

  • Posts: 60.3mm outside diameter, supplied with domed post caps with 500mm to be set in concrete. (Posts are also available with base plates for fixing to concrete - please call for options)
  • Post centres: 3m
  • Rails: 50 x 25mm Rectangular Hollow Section
  • Tubular infill: 19mm diameter
  • Tube spacing: 119mm centres giving 100mm gap
  • 60mm clear of ground

If you are installing the product yourself, view our instructions below

Installation Instructions

Explore our Tubular Bow Top Gates by clicking on the button below

Tubular Bow Top Gates

Delivering an exceptional fence installation service

Approved Installers Network

Our network of Approved Installers are high skilled, carefully selected, reputable fence installers who we trust to install our high quality timber products to the highest installation standards. If you are interested in installation by one of our Approved Installers please click "Add installation to basket" below. We will be in touch shortly after processing your order to discuss installation.
