Sentry Metal Garden Railings

Sentry Metal Residential Railings

  • Contemporary metal garden railings
  • 25 Year Guarantee
  • Matching Gates Available
  • Conforms to Building Regulations for Anti-trap

Specifying or installing for a commercial application?

Visit our commercial website

Our commercial website is host to technical and specification documents and all the advice you need to help you choose the best security fencing for your site.

Commercial Website







Add to Basket

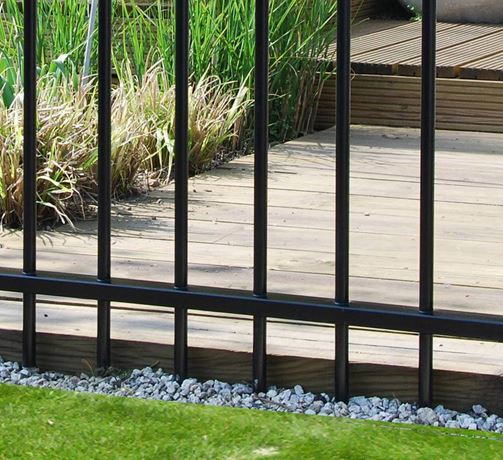

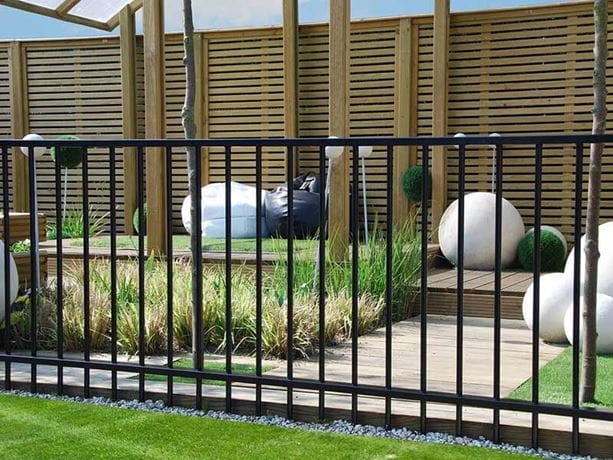

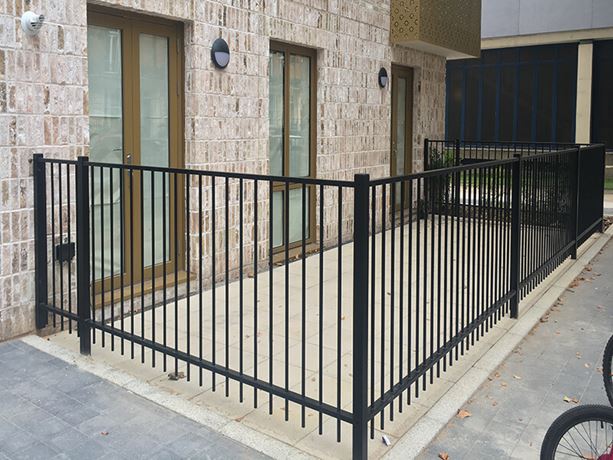

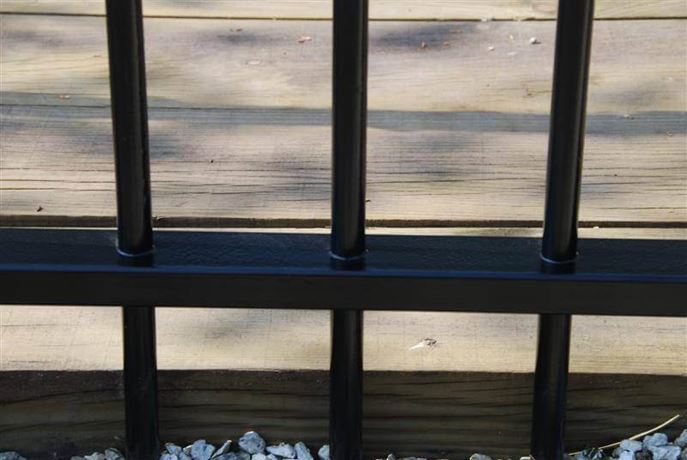

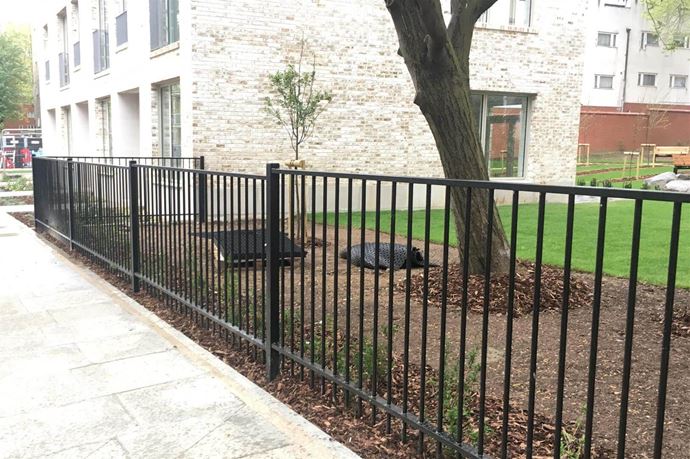

Sentry® Residential Garden Railings are perfect for use in residential applications, with its round 19mm pales and flat top rail giving it a contemporary style. The garden panels are fully welded and of tubular semi pale-through-rail construction, with concealed, vandal-proof panel to post fixings. Sentry® metal garden railings are ideally suited for use around decks and on walls and other raised areas where a strong, simple barrier is required. Please ask us for advice on fencing raised areas.

Product Specification

  • Post centres: 3000mm
  • Posts: 60 x 60mm - Rectangular Hollow Section
  • Post length: 1600mm or 1850mm to allow for 0.6m in the ground
  • Pales: Diameter 19mm Circular Hollow Section
  • Rails: 50 x 25mm Rectangular Hollow Section

Features & Benefits of Sentry Metal Railings

  • Constructed from galvanised steel with a 25 year service life guarantee.
  • Pale spacing is at 100mm to conform to Building Regulations for anti trap.
  • Option to be base plated.
  • Supplied galvanised as standard
  • Galvanised and powder coated to BS EN 13438 in other colours at extra cost.
  • Swing or sliding gates are available with either automated or manual operation options.

Please ask for specification.

Products on this page are made to order and CANNOT be cancelled once placed.

When ordering panels, remember to add 4 connectors (020001) per panel to connect to posts click on the link below to go to product page.  If you are planning on connecting panels to walls, please contact us.
