Barbican Imperial Metal Railings

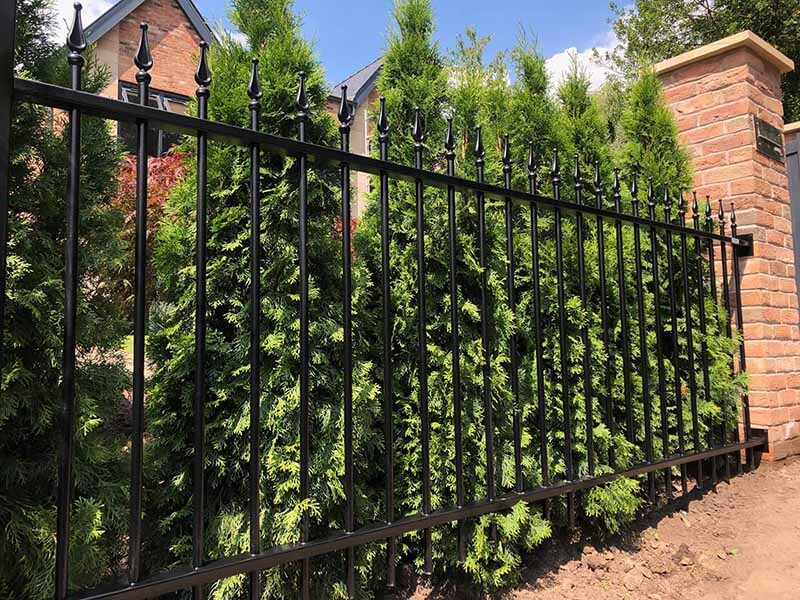

Barbican® Imperial metal ornamental railings are perfect for the front garden, as well as larger residential developments and housing projects.  Offering an aesthetically pleasing metal railing design with slender 19mm round pales; a lighter version of our standard Barbican Imperial® vertical bar fencing, which is commonly used for commercial projects.

To order this product or for specification please call our commercial sales team on 0800 408 4331

Decorative finials can be added with six different finial options available. The panel and posts are of hollow steel sections constructed in a fully welded, pale through method with no visible joins.

The fence panel to post fixing is by way of concealed, vandal resistant fixings.

Product Specification

• Panel heights: 1000 & 1250mm - other sizes available.
• Post centres: 3000mm
• Posts: 60 x 60mm - Rectangular Hollow Section
• Post length: 1600m or 1850m to allow for 0.6m etc in the ground
• Pales: Diameter 19mm Circular Hollow Section
• Rails: 50 x 25mm Rectangular hollow section

Features & benefits of Barbican Imperial railings

• Constructed from galvanised steel guaranteed for 25 years.
• Pale spacing is at 100mm to conform to Building Regulations for anti trap.
• Option for posts to be base plated.
• Supplied galvanised as standard.
• Galvanised and powder coated to BS EN 13438 in a range of colours at extra cost.
• Matching swing or sliding gates are available with either automated or manual operation options.

Products on this page are made to order and CANNOT be cancelled once placed.

Explore product pages below

You may also be interested in our Sentry Residential Railings, check out the button below to explore the range

Sentry Residential Railings

This product cannot be ordered online, to order this product or for specification please call our commercial sales team on 0800 408 4331

Line Drawings/Q40s

• 1 m & 1.25m High Imperial Residential Double Leaf Gates With Slide Latch - J102157sht3.pdf
• 1 m & 1.25m High Imperial Residential Double Leaf Gates With Key Lock - J102157sht4.pdf
• 1m & 1.25m High Imperial Residential Single Leaf Gates with Slide Latch - J102157sht1.pdf
• 1 m & 1.25m High Imperial Residential Single Leaf Gates with Key Lock - J102157sht2.pdf
• 1 m - 1 .25m HIGH BARBICAN IMPERIAL 'RESIDENTIAL' FENCING - J101064Sht8a.pdf
• 045 Q40 Barbican Imperial Residential PDF
