Garden Gate Brabourne

Brabourne Arched Wooden Gate

  • All garden gate timber is superior quality Jakcure® treated softwood guaranteed for 25 years
  • All timber is planed all round for a high quality finish
  • Includes all galvanised fittings and fixings
  • Wall plates are available for fitting these gate to walls
  • Prices include ring latch, adjustable hook and band hinge
  • Mortice and tennoned frame


We aim to deliver most orders within 30 days
Most orders will be delivered within 7-10 days. Dependent on stock availability this may be longer on some items. Please call us for latest lead time if your order is time sensitive. Delivery charges are calculated at checkout based on your order value and postcode.
See the Jacksons Difference







Add to Basket

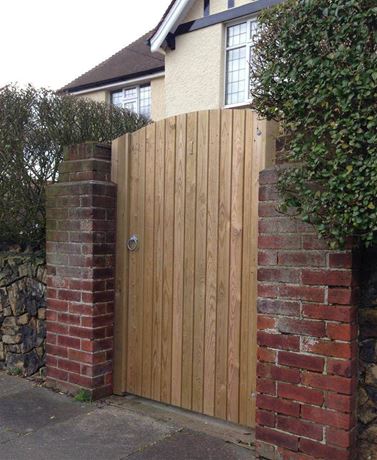

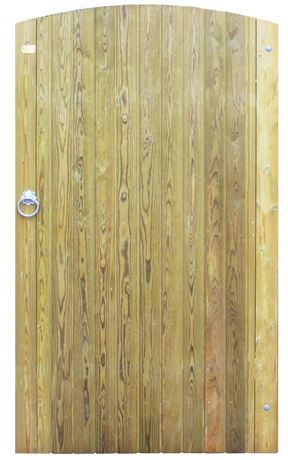

Arched Garden Gate Brabourne

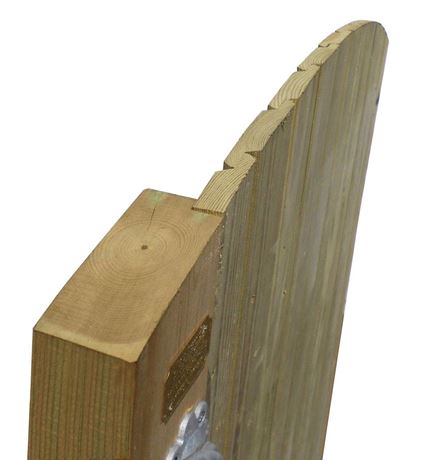

Solid and high privacy garden gate with elegant arched top, made using tongue and groove effect boards. All our garden gates come complete with ring latch, adjustable hook and hinges and fixings

Our Brabourne garden gates are made using our trademark vacuum pressure treated Jakcure® softwood timber and are guaranteed for 25 years. Constructed using stainless steel fixings, our gates are built to last.

Standard widths: 750mm, 900mm, 1m

Standard heights: 1.15m, 1.45m, 1.75m

Recommended clearance from ground is 50mm

Non-standard gate sizes can be made on request if style suits at an additional cost. Please call to discuss.

Gates are manufactured either left hand or right hand hanging for a left or right hand swing. To determine the swing direction, view the gate as if you were standing on the outside facing your property.

If you want the gate to open from the left-hand side, the gate will be attached to the gate post on the right-hand side and therefore be right hand hanging.


RHH = Right Hand Hanging gate

LHH = Left Hand Hanging gate

Gate locks: our gates are supplied as standard with a ring latch, but other gate locks may be required. Brabourne gates have wider stiles than some of our other gates therefore can accommodate, J Locks and Morticed Locks but this must be specified during the ordering process if you require fitting.

Gate Height
Gate Width
Right hand hanging reference
Left hand hanging reference





If using our slotted Jakpost system (usually installed in a run of fencing) we recommended using the following posts:

      • 668500 End/Gate post (for 1.8m high gate other sizes available)

For more on our Jakpost slotted post system, click below.

Slotted posts

If using standard square section posts we recommend using the following posts:

      • 641500 Heavy intermediate or Gate post (for 1.8m high gate other sizes available)

For more on our gate range, click below.

Garden Gates

Brabourne Gates are designed to match our Tongue and Groove Effect panels

Tongue and Groove

Delivering an exceptional fence installation service

Approved Installers Network

Our network of Approved Installers are high skilled, carefully selected, reputable fence installers who we trust to install our high quality timber products to the highest installation standards. If you are interested in installation by one of our Approved Installers please click "Add installation to basket" below. We will be in touch shortly after processing your order to discuss installation.
