Rota Spike Security Topping

Rota Spike Security Topping

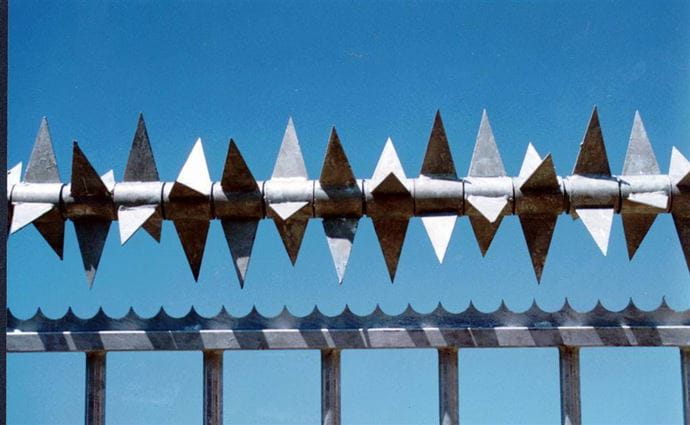

With extremely sharp rotating steel blades on a steel tube, Rota Spike offers insurmountable protection against intruders.

Easy to install

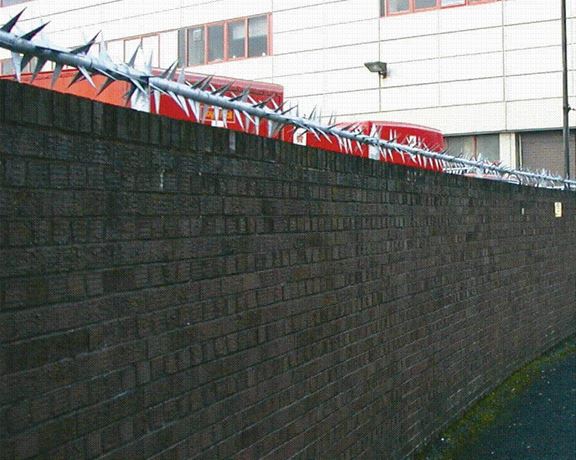

Rota-Spike is supplied with brackets for fixing above any type of fence, gate, or wall. This makes it easy to utilise on buildings, to protect vulnerable points, for example upstairs windows where it can be possible for intruders to gain access from adjacent buildings or roofs.

Made to last

Rota-Spike is made entirely from hot dip galvanised steel and is also available with a durable, architectural grade polyester powder coating so it stays looking not only fierce but good too.

Note: We recommend "Danger Signs" are used with all security toppings, please order code 329330.

In some cases, the installation of security extras may require planning permission or Building Regulations approval, if in doubt, please consult your relevant Local Authority department.

Rota Spike is sold in 6m lengths with:

• 064000BM - 6m Galv top rail.
• 010994 - Rota spikes for rail
• 019991 - End bracket
• 010998 - Intermediate bracket
• 019992 - Mitre

Specification

• Size: Supplied in 6m lengths

• Design: Steel tube with sharp rotating blades
• Inner tube: 41.5mm diameter x 2mm thick
• Blades: 70 blades per 6m. 90mm long, rotating on outer tube

• Brackets: Installed at 3m centres when vertical (on top of wall) and 2m when horizontal (on face of wall). For corners use 2no. end brackets 019991

Anti Intruder Guidelines

Alternative brackets for fixing to Triple Point Palisade fencing

Please note we also supply Rota Spike Brackets for use with existing installations of Corrugated, Triple Point Palisade fencing (Although we do not supply Triple Point Palisade).

Fittings available for Corrugated/Triple Point Palisade:

010985 Intermediate Brackets 248mm high (including spike) 65 x 6mm flat bar with 44m diameter hole drilled 350mm to centre line from bottom of bracket to take top rail.

010986 End Brackets 248mm high (including spike) 65x6mm flat bar with spigot fixed 350mm to center line from bottom of bracket to take the top rail.

Intermediate brackets drilled twice. Ends and Corners drilled 4 times for self tapping screws 5.5 x 25mm.

073162 Tamper-Drive Security Screw

Visit our security fencing website for our full range of security fencing and toppings.

Document Downloads

• Rota-Spike Installation Instructions
• Rota Spike above Chainlink or Weldmesh Fencing Details - J204001
• Rota Spike Bolted to Top of Wall - J404007sht1
• Rota Spike for Face Fixing - J404007sht2
• Rota Spike for Steel Palisade Fencing - J404007sht3
• Rota Spike above Barbican - J104013
• Wall Face Fixed Cranked Rota Spike - J404165
