PineGroove Fence Panels
- All timber used throughout is superior quality Jakcure® treated softwood guaranteed for 25 years
- Designed for use with slotted Jakposts®
- Gravel boards are required where panels are in contact with the ground
- Stainless steel fixings are used throughout for longer life
- All timber is planed all round.
- Strong, interlocking pales
- Please call our sales team for gate options in this design
Delivery
PineGroove Fence Panels
About the panel

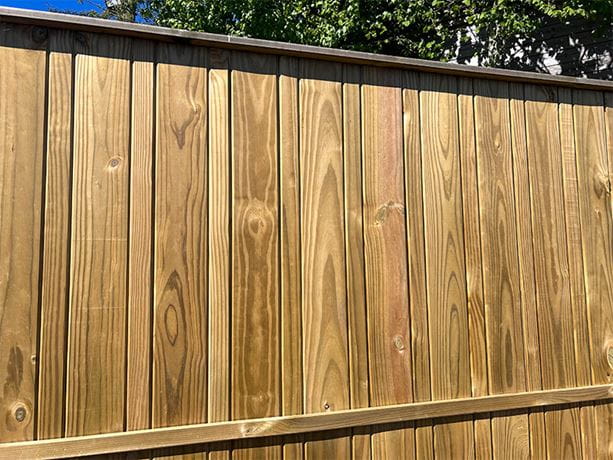

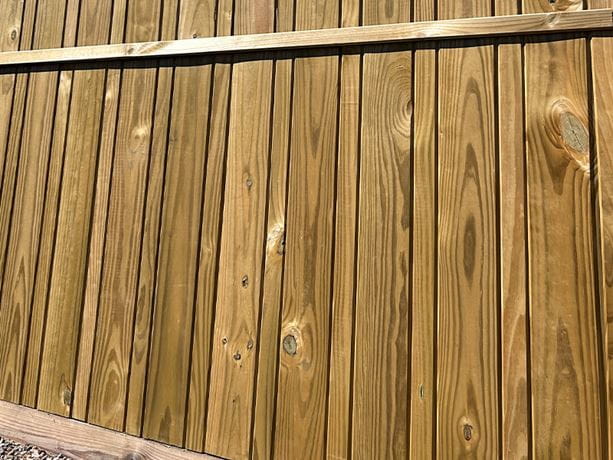

Introducing our solid, vertically clad fence panel, designed to combine strength, privacy, style, and durability. This unique panel features alternating width interlocking 24mm thick timber pales, creating a striking contemporary look that stands out in any outdoor space.
Our PineGroove fence panel is made from vacuum pressure treated Jakcure® softwood and is guaranteed for 25 years. Using a dense, high strength and naturally resinous softwood, these panels offer exceptional durability, strength and noise reduction. Built using stainless steel fixings to ensure longevity, our PineGroove fence panels are built to last.
Manufactured in 0.90m high panels that are stacked and joined by a decorative wooden band across the centre, adding both strength and visual appeal. The result is a fence that’s not only functional but also a design statement.
Panel Specification
Our PineGroove fence panels are made using our trademark vacuum pressure treated Jakcure® softwood timber and are guaranteed for 25 years. Constructed using stainless steel fixings, our fence panels are built to last.
- Panel Heights: 0.90m, stackable
- Panel Width: 1.83m
- Panel Thickness: 51mm including frame, 24mm thick pales
- Rails: Two per panel; 69 x 24mm section
- Join: 23mm thick T piece with 40mm front face
Panels can be cut to a desired width on site. Always use Jakcure® End Grain Treatment on any cut timber
Please Note: dimensions may increase by 6% when first delivered as our treatment process can temporarily cause the product to swell.
Fence Post Options – Standard Slotted Jakpost® ,Heavy Duty Slotted Jakposts®
Gravel board options- Standard Gravel Board , Hedgehog Friendly Gravel Board
To meet the conditions of the 25 year guarantee, gravel boards are required where panels are in contact with the ground.
Installation Advice Installation Instructions
We recommend using 6 screws per panel or 12 per panel if using capping rails plus an additional 4 per gravel board. 60mm, stainless steel, self-drilling countersunk screws are available in packs of 100 or 200 to secure panels to posts. Panels should be screwed to the posts to secure the fence run.
We recommend using our slotted Jakposts for intermediates, ends and corners, click on the button below to see the range
Gravel boards need to be used when panels are in contact with the ground as part of the 25 year Jakcure® guarantee. More details can be found on our Jakcure T&Cs page.
Capping Rails are optional with PineGroove panels. Use the button below to see our options
Post Caps add the finishing touch to any fence, view the full range by clicking the button below
Please Note that the dimensions of components may increase by 6% when first delivered as our treatment process can temporarily cause the product to swell.
Document Downloads
Approved Installers Network
Our network of Approved Installers are high skilled, carefully selected, reputable fence installers who we trust to install our high quality timber products to the highest installation standards. If you are interested in installation by one of our Approved Installers please click "Add installation to basket" below. We will be in touch shortly after processing your order to discuss installation.
Products in PineGroove Fence Panels
Related Products
Find related products for your order. If you cannot find the item you are looking for, please do not hesitate to call our friendly sales team.
Shopping with us
We offer the longest guarantee in the industry for manufactured timber products.
Find out more about our market leading 25 year guarantees for service and timber treatment
Our Guarantees
Featherboard Fence Calculator
Enter the run length and height, to calculate the items required:
You will need bays consisting of posts, pales, rails and Gravelboard(s).
