Agricultural Fencing - Riding Arenas

Average customer rating:

Out of 1 review(s):


Riding Arenas

  • Can be installed by our professional installation teams - please ask for a quote
  • A selection of riding surfaces are available on request
  • Samples are available on request
Buy Products Product Information
Whether you require a commercial or private, indoor or outdoor ménage, or even gallops with an all weather surface, we can offer you a comprehensive service for fencing and access carried out by our approved riding arena installers around the country. Alternatively we can offer you kits that include a mix of products to suit your needs. Please ask for more details or a quote for riding arenas.

Riding Arena General Description

With all riding arenas the surface is most important, but a good surface will be ruined if the preparation is not correct. All riding arenas should be constructed ensuring there is good drainage, typically this will be done with a layer of clean stone on top of a subsoil base.

Depending on the site, drainage may also be included and then a layer of protective membrane, followed by the topping. The topping will normally be rubber and sand, or sand and waxed fibre. (supplied by others)

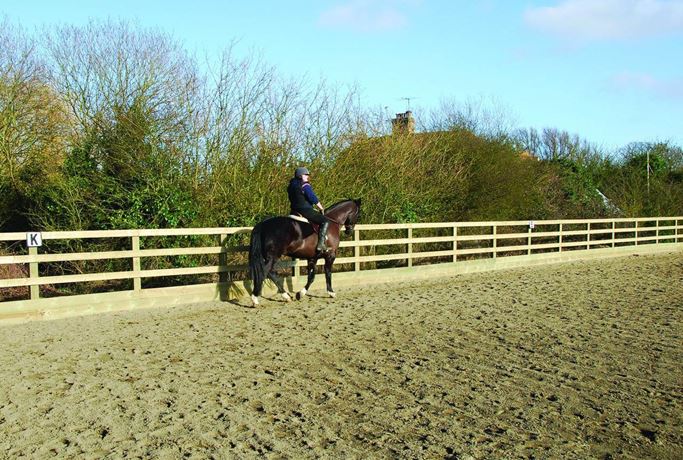

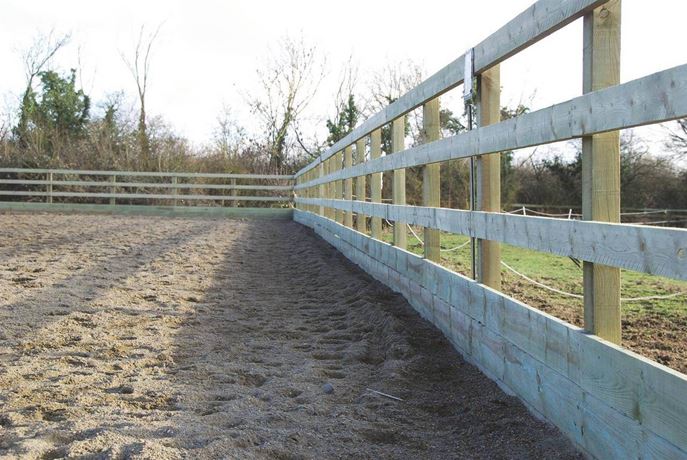

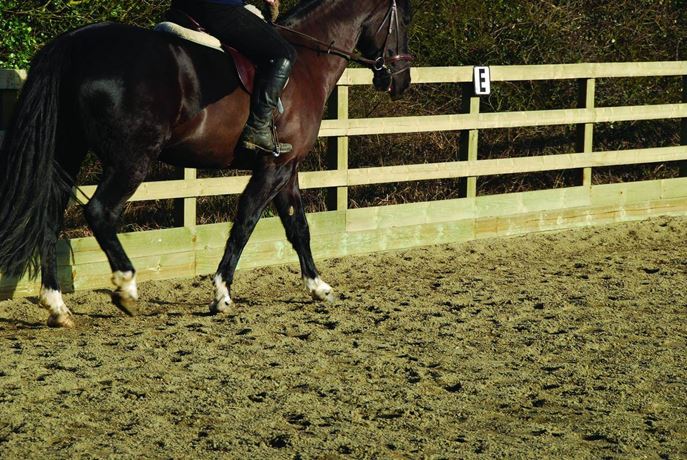

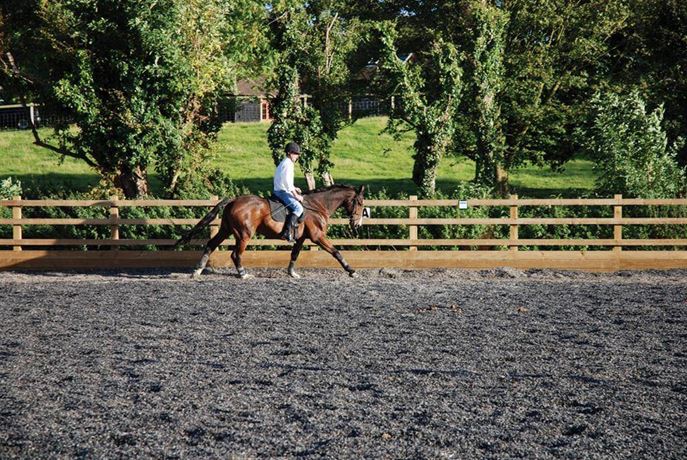

The fencing and gates around the riding arena will be 1.4m out of the ground, with a top rail flush with the top of the posts, with a further two rails evenly spaced below, and finally a kick or retaining board at ground level. In exposed or windy sites we have the option of featherboard panels that offer a solid barrier to help avoid the riding arena surface blowing away.

A gate typically 3.6m wide should be installed in the fence line with a horse safe latch that allows the gate to open both ways.

Fencing Specification

The standard configuration for an arena would consist of the following:

  • 1 x fence post every 1.85m (either 170500 or 170600 depending on height)
  • 2 x containing boards at the bottom of the fence
  • 1 x optional splash board above the containing boards
  • 3 / 4 x fencing rails

When calculating materials we recommend the use of 3.6m boards and rails and allow a post every 1.85m of fence, plus one at the end of the run.

For a 3-rail fence allow three rails per 1.85m. And for a 4-rail fence also allow four rails per 1.85m. Nails: use 50mm galvanised wire nails approx 441 per kg. code 800110 1kg, 800150 5 kg, 800100 25kg. 2kgs for 180m of 3-rail fence or 3kgs for 180m of 4-rail fence

Riding arena construction

Riding Arena Planning

Normal Size

Approximately 40m x 20m inside retaining boards

Soil Preparation

All top soil and vegetation removed from the riding area to an immediately adjacent area. Site then levelled.

Base Layer

Clean stone available locally, compacted to give an average thickness of 150mm and placed upon a prepared sub-soil. Drains can be installed as an optional extra.

Working Surface

Conifer bark and wood fibre, laid to a level thickness of 225mm on a separation and drainage membrane.

Riding Surfaces

Jacksons’ separation and drainage membrane.

Jumping Poles

3.6m Long x 100m diameter (131800)

Fencing & Access

Please read the main product information tab of this page or call our team


This product currently does not have any line drawings. If you require more information/line drawings, please contact us.
