Jaktop Criss Cross Fence Panels

Jaktop Criss Cross Fence Panels

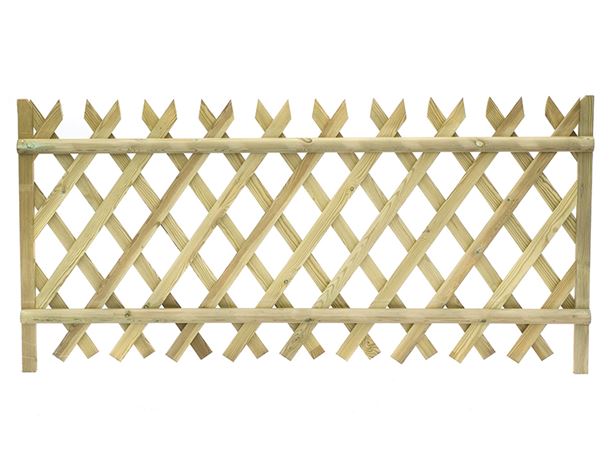

About the panel

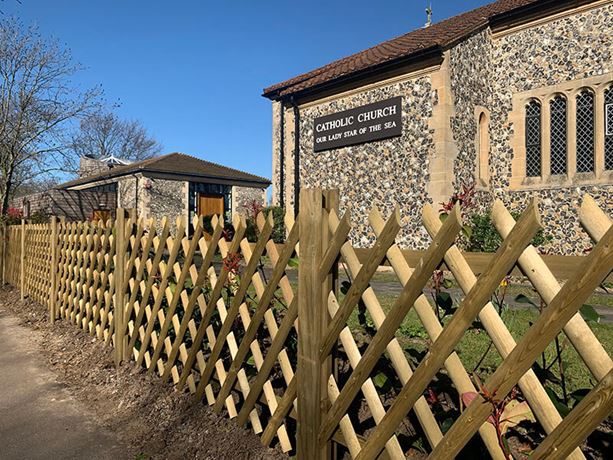

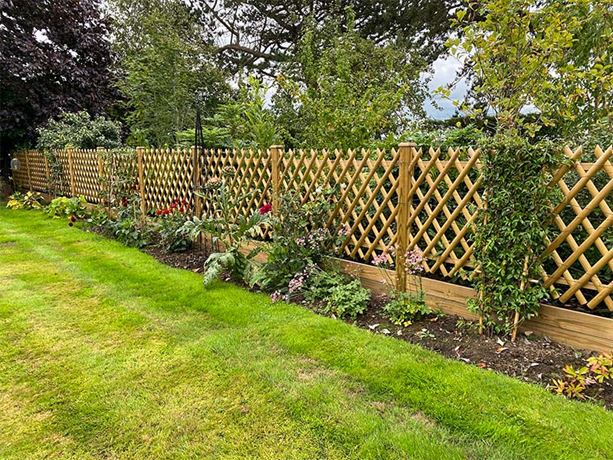

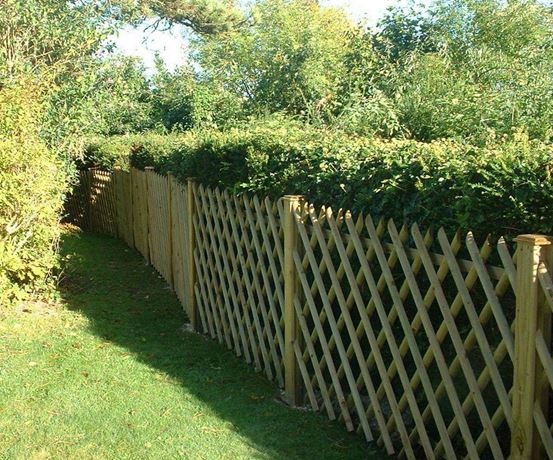

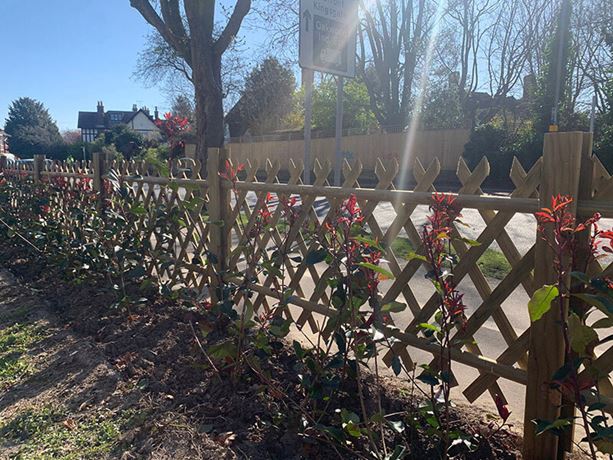

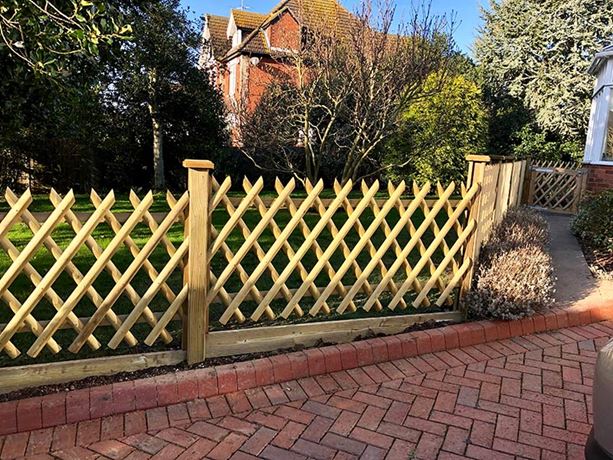

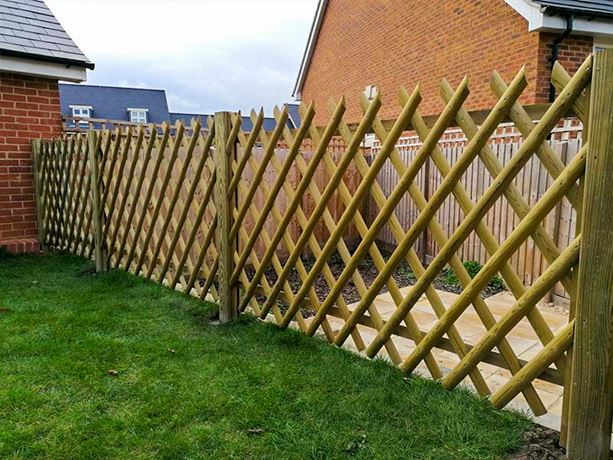

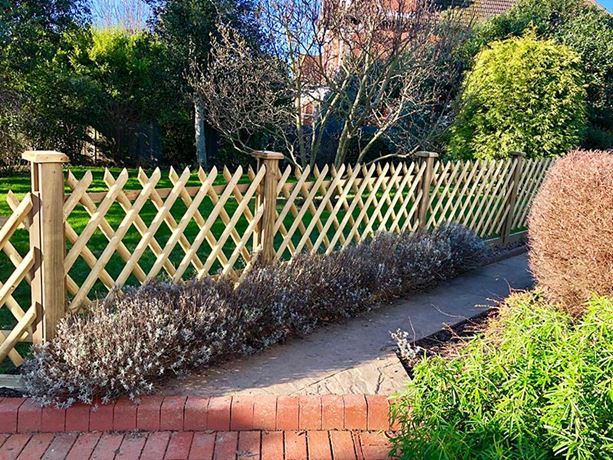

Jaktop fence panels are well suited to front gardens in suburban and rural areas. It’s a popular alternative to traditional palisade or picket styles of front garden fencing.

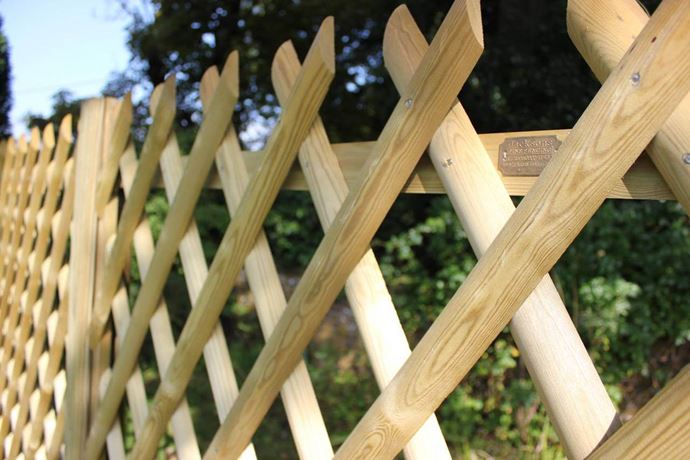

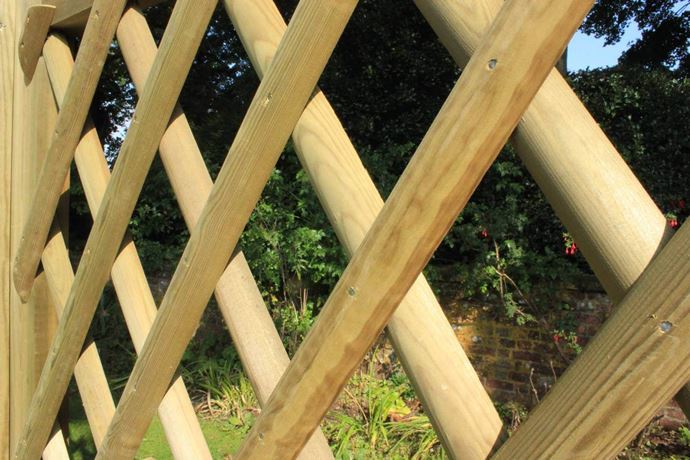

The crossed half round timber pales give these fence panels a very distinctive look and criss-cross pattern. Jaktop is a unique, robust, highly decorative garden fence and the panels come complete as a fixed fence panel with rails, that can be easily installed in our slotted garden Jakposts.

Panel Specification

Our Jaktop fence panels are made using our trademark vacuum pressure treated Jakcure® softwood timber, guaranteed for 25 years. Constructed using stainless steel fixings, our fence panels are built to last.

• Panels are 1.83m wide
• Panels are made from 50 x 22mm half round timber pales

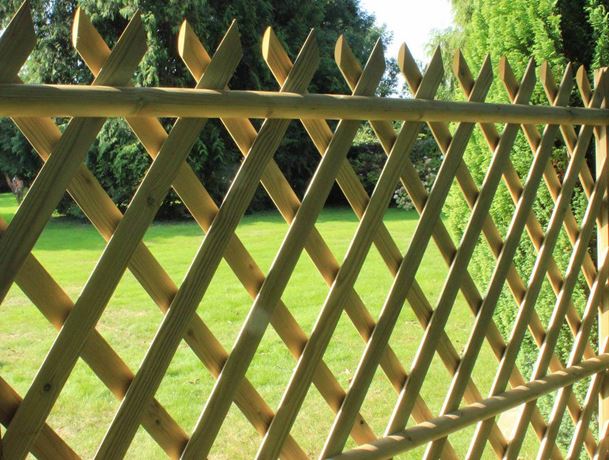

• The panel has two rails
• The fence should be erected 50mm above ground level to prevent panel from touching the ground
• Gravel boards do not need to be used if panels are installed 50mm from the ground and there is no ground contact


Please Note: dimensions may increase by 6% when first delivered as our treatment process can temporarily cause the product to swell.

Fence Post Options – Standard Slotted Jakpost®, Heavy Duty Slotted Jakposts®

​Installation Advice - Installation Instructions ​

Reducing the width of the fence panel – All fence panel are 1.83m wide as standard, if you require a narrower fence panel, you can cut the fence panel down on site using our cut down kit. Please remember to treat any cut ends with Jakcure Cut Treatment, to ensure you adhere to our 25-year guarantee guidelines.

Recommended Fixings

We recommend using 6 screws per panel or 12 per panel if using capping rails plus an additional 4 per gravel board. 60mm, stainless steel, self-drilling countersunk screws are available in packs of 100 or 200 to secure panels to posts. Panels should be screwed to the posts to secure the fence run.

For details on intermediate posts, corner posts, gate posts, Jakposts and post caps, please use the links below:

Slotted Fence Posts

Posts Caps

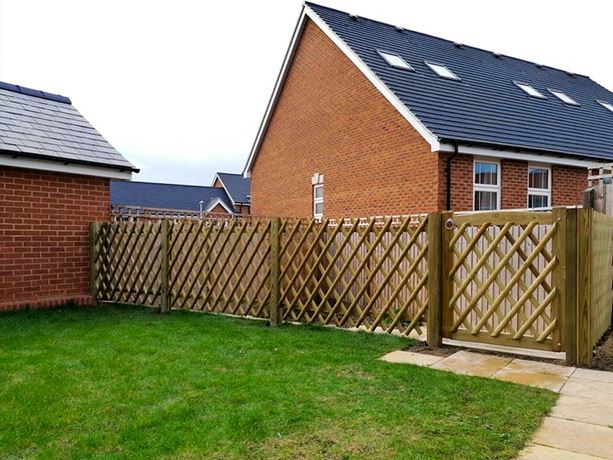

Jaktop Garden Gates

Gravel boards need to be used when panels are in contact with the ground as part of the 25  year Jakcure® guarentee. More details can be found on our Jackcure T&Cs page

Gravel Boards

If you are installing the product yourself, view our instructions below:

Installing Panel Fencing Instructions

Installing Timber Fence Post Instructions
