Gate Hardware Packs
The following page will help explain the various fitting codes that can be used when installing a Uni field/drive gate or traditional entrance gate. In the table, the fitting codes can be found at the top of each column with the quantity of items included in each pack.
The key below will help to differentiate between the fitting codes. It is also possible to hover over each code in the table for a description of each fitting pack.
TRHS - Timber Rail Hanging System
DL - Double Leaf
SL - Single Leaf
N - Narrow
NP - No Posts
AC - Auto Catch
BP - Between Posts
Single Leaf Gate - Narrow (Gate width: 0.9m to 1.5m wide)
Behind posts
| Description | Code | TRHSSLN
TRHSSLN - This is our standard fitting code for hanging a NARROW Single leaf gate. This code is used to hang the gate BEHIND posts with a spring catch. |
TRHSSLNAC
TRHSSLNAC - This fitting code is used for hanging a NARROW single leaf gate BEHIND posts with an AUTO CATCH rather than a spring catch. |
TRHSSLNP
TRHSSLNP - This is the same as a TRHSSLN fitting code for hanging a single leaf gate with Spring catch BEHIND posts but EXCLUDES the posts. |
| Anti Lift Device | 271200BM | 1 | 1 | 1 |
| Loop Over Catch | 271410 | |||
| Fitting Charge | 271700 | 1 | 1 | 1 |
| Hinge Set | 271800 | 1 | 1 | 1 |
| Spring Catch Set (Behind Posts) | 271300 | 1 | 1 | |
| Auto Catch | 438300 | 1 | ||
| Gate Post 2.1m 150x150 | 274000 | 2 | 2 |
Between Posts
| Description | Code | TRHSSLNBP
TRHSSLNBP - This is the standard fitting code for hanging a Narrow single leaf gate BETWEEN posts. |
TRHSSLNPBP
TRHSSLNPBP - This is the same as the fitting code for hanging a single leaf gate BETWEEN posts but this code EXCLUDES the posts |
| Anti Lift Device | 271200BM | 1 | 1 |
| Fitting Charge | 271700 | 1 | 1 |
| Hinge Set | 271800 | 1 | 1 |
| Spring Catch Set (Between Posts) | 271350BM | 1 | 1 |
| Gate Post 2.1m 150x150 | 274000 | 2 |
Single Leaf Gate - Wide (Gate width: 1.8m to 4.2m wide)
Behind posts

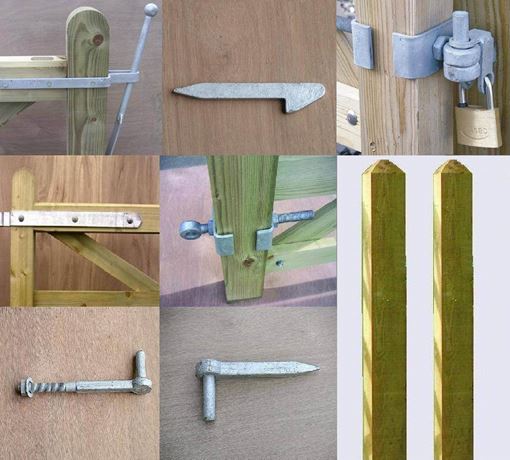

| Description | Code | TRHSSL
TRHSSL - This is our standard fitting code for hanging a wide single leaf gate. This code is used when the gate is hung BEHIND posts using a spring catch set |
TRHSSLAC
TRHSSLAC - This fitting code is used for hanging a wide single leaf gate BEHIND posts with an AUTO CATCH rather than a spring catch |
TRHSSLNP
TRHSSLNP - This is the same as a TRHSSL fitting code for hanging a single leaf gate BEHIND posts but EXCLUDES the posts. |
| Anti Lift Device | 271200BM | 1 | 1 | 1 |
| Fitting Charge | 271700 | 1 | 1 | 1 |
| Hinge Set | 271800 | 1 | 1 | 1 |
| Spring Catch Set (Behind Posts) | 271300 | 1 | 1 | |
| Auto Catch | 438300 | 1 | ||
| Gate Post 2.1m 175x175 | 272400 | 1 | 1 | |
| Gate Post 2.1m 150x150 | 274000 | 1 | 1 |
Between Posts

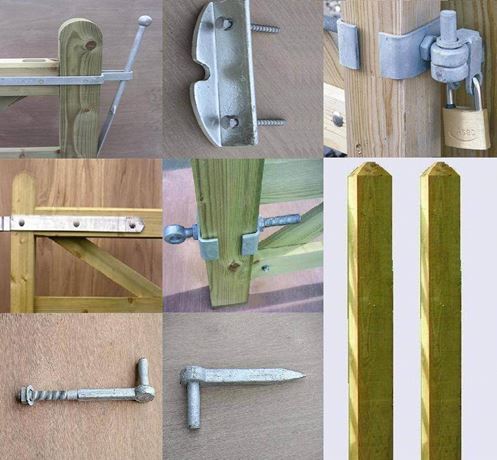

| Description | Code | TRHSSLBP
TRHSSLBP - This is the standard fitting code for hanging a wide single leaf gate BETWEEN posts. |
TRHSSLNPBP
TRHSSLNPBP - This is the same as standard fitting code for hanging a single leaf gate BETWEEN posts but this code EXCLUDES the posts |
| Anti Lift Device | 271200BM | 1 | 1 |
| Fitting Charge | 271700 | 1 | 1 |
| Hinge Set | 271800 | 1 | 1 |
| Spring Catch Set (Between Posts) | 271350BM | 1 | 1 |
| Gate Post 2.1m 175x175 | 272400 | 1 | |
| Gate Post 2.1m 150x150 | 274000 | 1 |
Double Leaf Gates
Behind posts
| Description | Code | TRHSDL
TRHSDL - This is our standard fitting code for hanging a double leaf gate. |
TRHSDLNP
TRHSDLNP - This is the same as our standard fitting code for Double leaf gates to the left but EXCLUDES the hanging posts. |
| Anti Lift Device | 271200BM | 2 | 2 |
| Loop Over Catch | 271410 | 1 | 1 |
| Fitting Charge | 271700 | 2 | 2 |
| Hinge Set | 271800 | 2 | 2 |
| Gate Post 2.1m 175x175 | 272400 | 2 | |
| Heavy Drop Bolt | 351400 | 1 | 1 |
| Drop Bolt Receiver | 351440 | 1 | 1 |
| Centre Gate Stop | 927110 | 1 | 1 |
It is not recommended to hang a double leaf gate between posts.
Are you looking for garden gate fittings? View our Garden Gate Fittings.
These gate hardware kits go with both our Uni Gates and Traditional Entrance gates. Explore both ranges below.
